Code P1390: Octane Adjust Circuit Malfunction

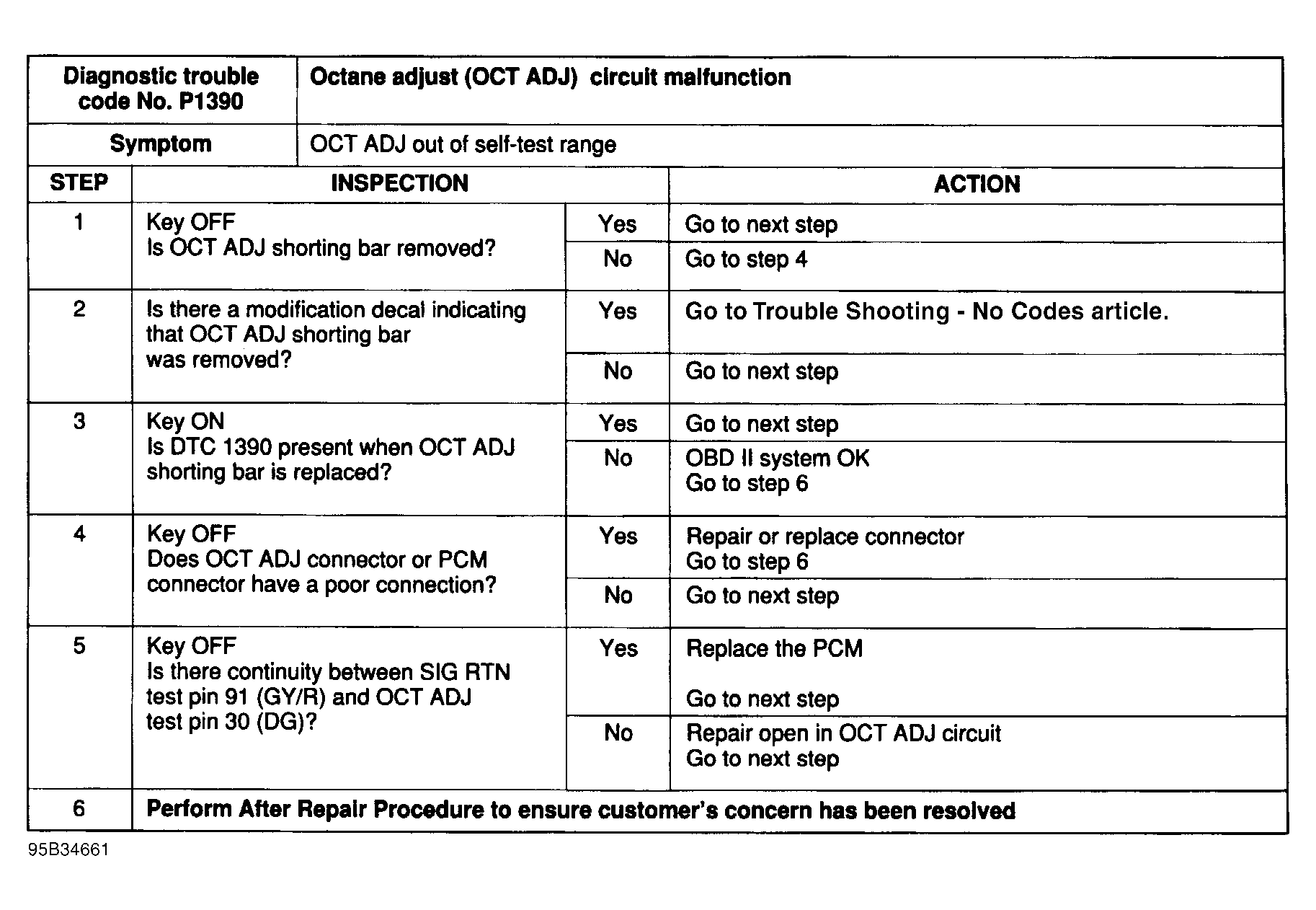

Fig 1: Trouble Code No. P1390 Octane Adjust Circuit Malfunction

G95B34661

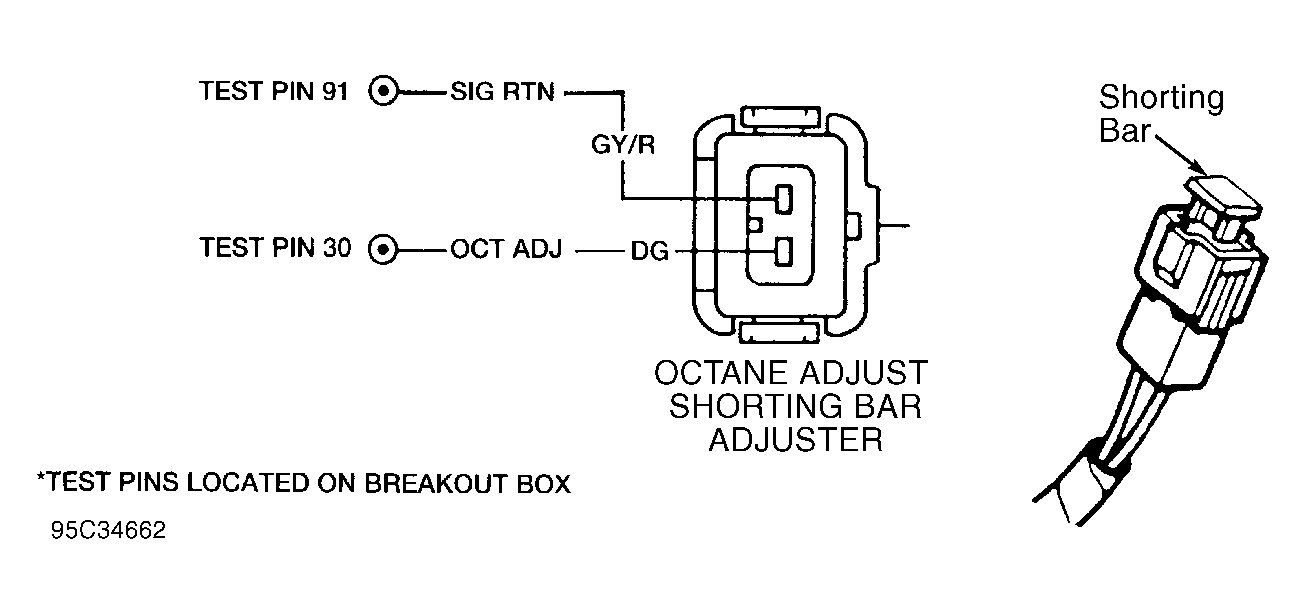

Fig 2: Trouble Code No. P1390 Octane Adjust (OCT ADJ) Circuit Diagram

G95C34662
