Code P1780: Transmission Control Switch Or Transmission Control Indicator Light Circuit Malfunction
Code P1780: Transmission Control Switch Or Transmission Control Indicator Light Circuit Malfunction

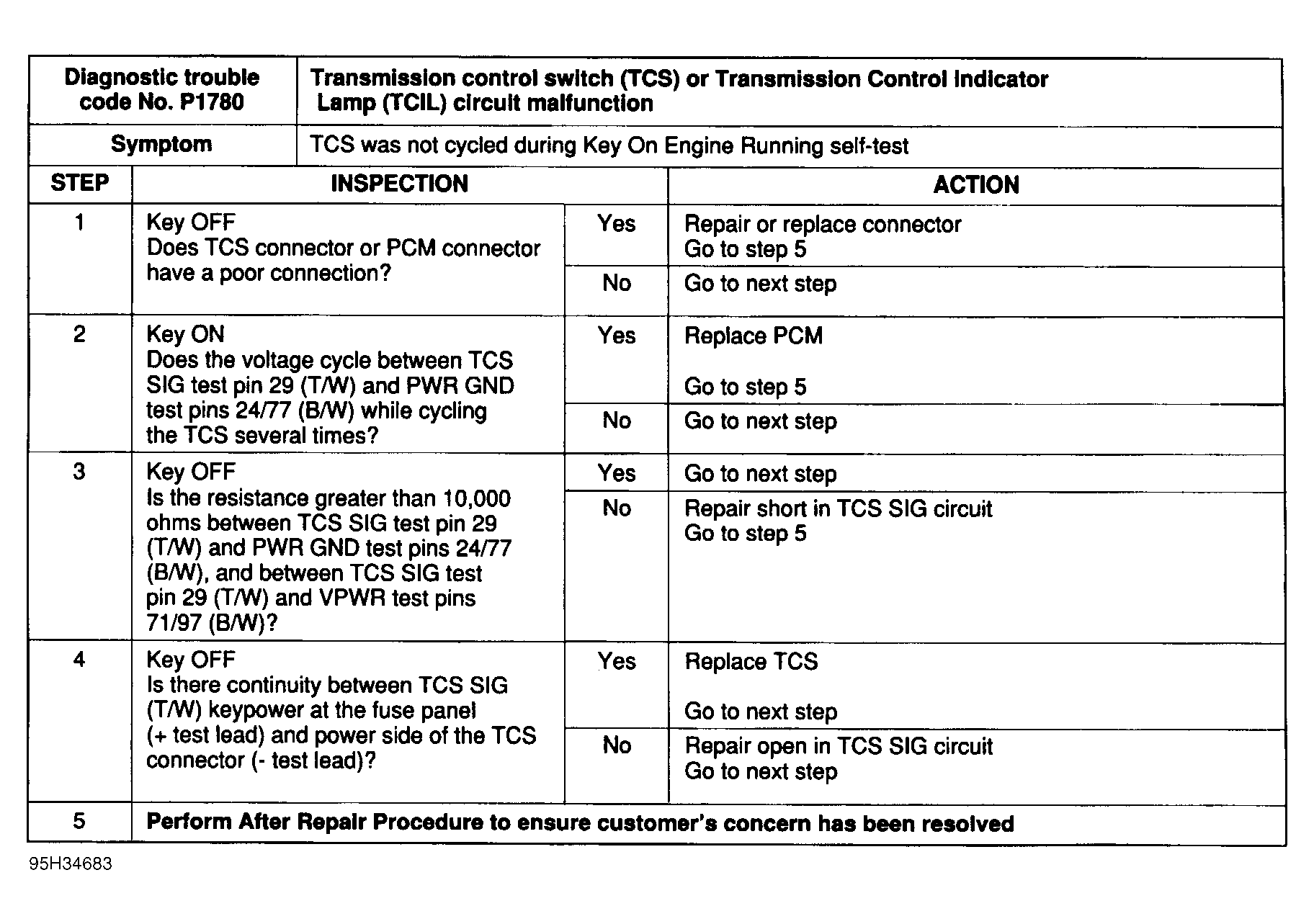

Fig 1: Trouble code No. P1780 Transmission Control Switch Or Transmission Control Indicator Light Circuit Malfunction
Fig 2: Trouble code No. P1780 Transmission Control Switch (TCS) Or Transmission Control Indicator Light (TCIL) Circuit Diagram
