Home › Mazda › 1995 › B3000 Base, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Trouble Code Charts › Code P1783: Transmission Fluid Temperature Sensor Circuit Error

Code P1783: Transmission Fluid Temperature Sensor Circuit Error

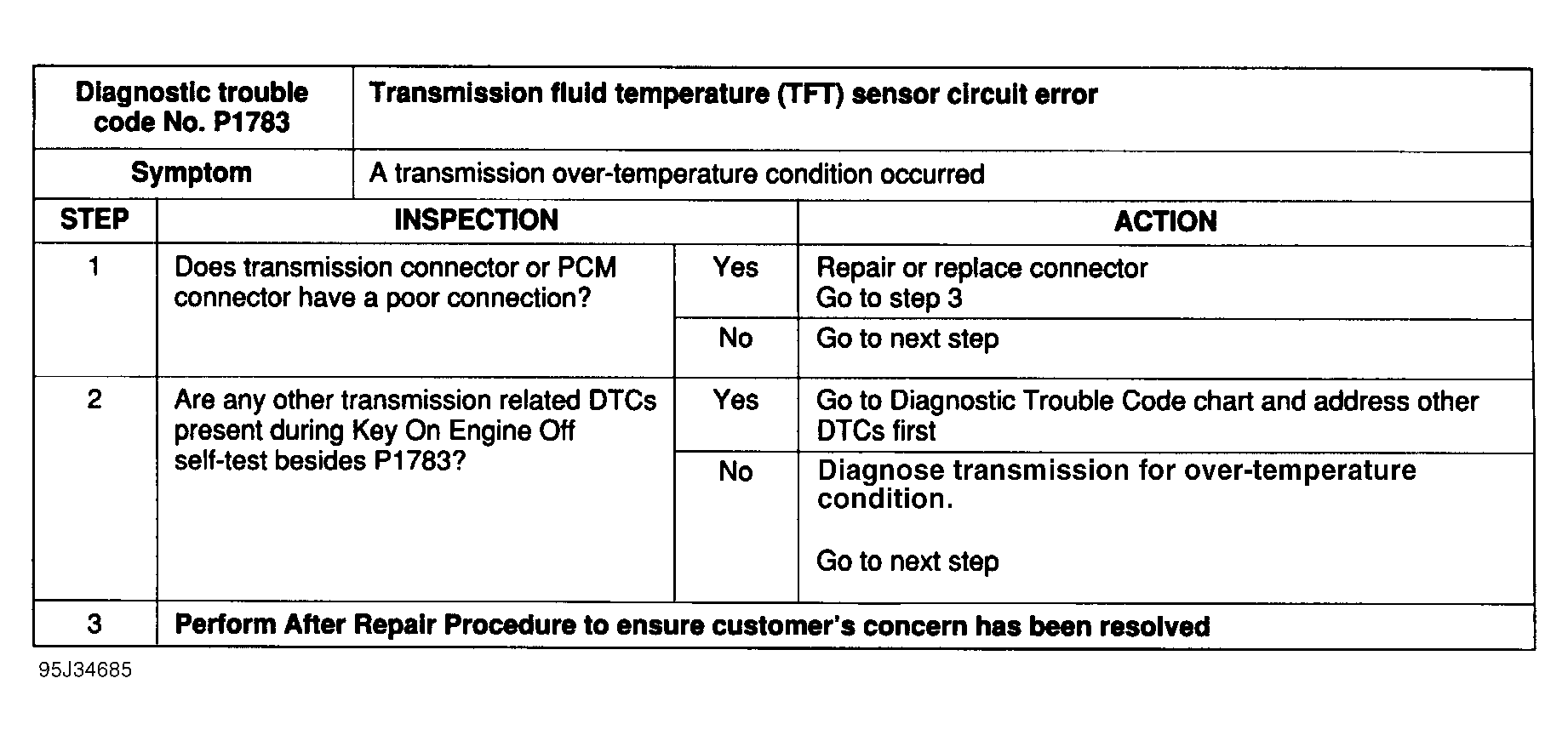

Fig 1: Trouble Code No. P1783 Transmission Fluid Temperature Sensor Circuit Error
G95J34685
Fig 2: Trouble Code No. P1783 Transmission Fluid Temperature (TFT) Sensor Circuit Diagram
G95J34651
