Moisture Freezing In PCV System (01-012/00)
Publication date: 2000-07-28Reference number: 01-012/00
MOISTURE FREEZING IN PCV SYSTEM
TECHNICAL SERVICE BULLETIN
Reference Number(s): CAT. 01, NO. 012/00, Date of Issue:
July 28, 2000
MOISTURE FREEZING IN PCV SYSTEM, ENGINE OIL LEAK AND THROTTLE STICKING
Model(s): 1995-1997 Mazda B-3000
Category: 01 - Engine
Bulletin No.: 012/00
Date: July 28, 2000
APPLICABLE MODEL(S)/VINS
All 1995-1997 B-3000 built through 7/1997.
DESCRIPTION
During extreme cold ambient temperatures and under certain driving conditions, moisture in the crankcase may enter the PCV fitting in the upper intake manifold or fresh air line, freeze, and cause pressure in the engine crankcase. The result of this pressure can be an engine oil leak from the top of the oil level indicator tube (dipstick tube). It is also possible, but less likely, that ice may build up on the throttle plate or the throttle body and cause throttle sticking.
Customers having this concern should have their vehicle repaired using the following procedure.
REPAIR PROCEDURE
- Verify customer concern.

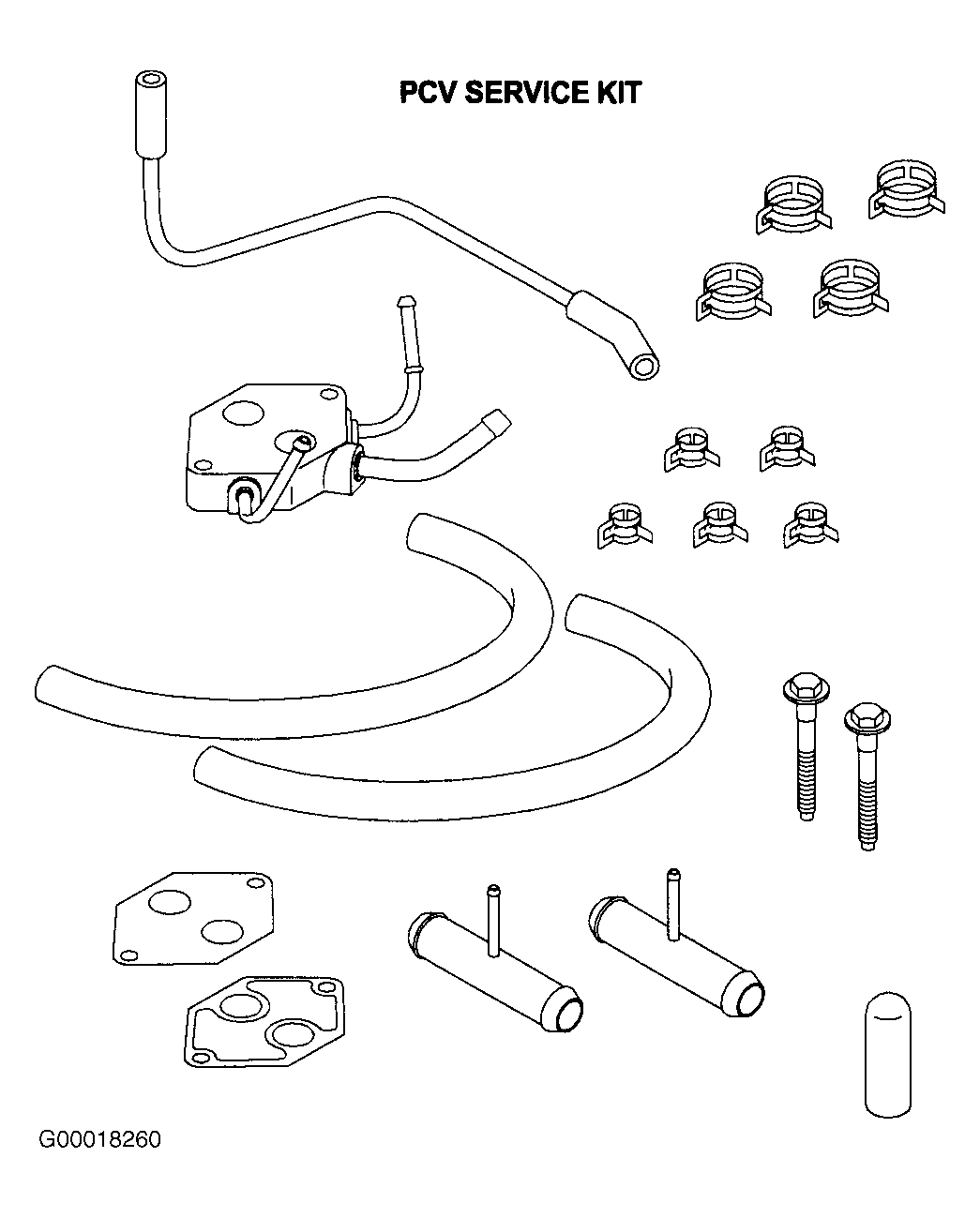

- Install the PCV kit (Fig 1 ) using the instruction sheet packaged with the kit.
- Verify repair.
PARTS INFORMATION
PARTS INFORMATION
| Part Number | Description | Qty. |
|---|---|---|
| ZZN1-13-890 | PCV Service Kit | 1 |
WARRANTY INFORMATION
NOTE:
This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.
WARRANTY INFORMATION
| Warranty Type | Symptom Code | Damage Code | Part Number Main Cause | Qty | Operation Number/Labor Hours |
|---|---|---|---|---|---|
| A | 76 | 9B | See PARTS INFORMATION | 1 | YY214XRX / 0.7 |
