Code 15: Heated Oxygen Sensor - Inactivation

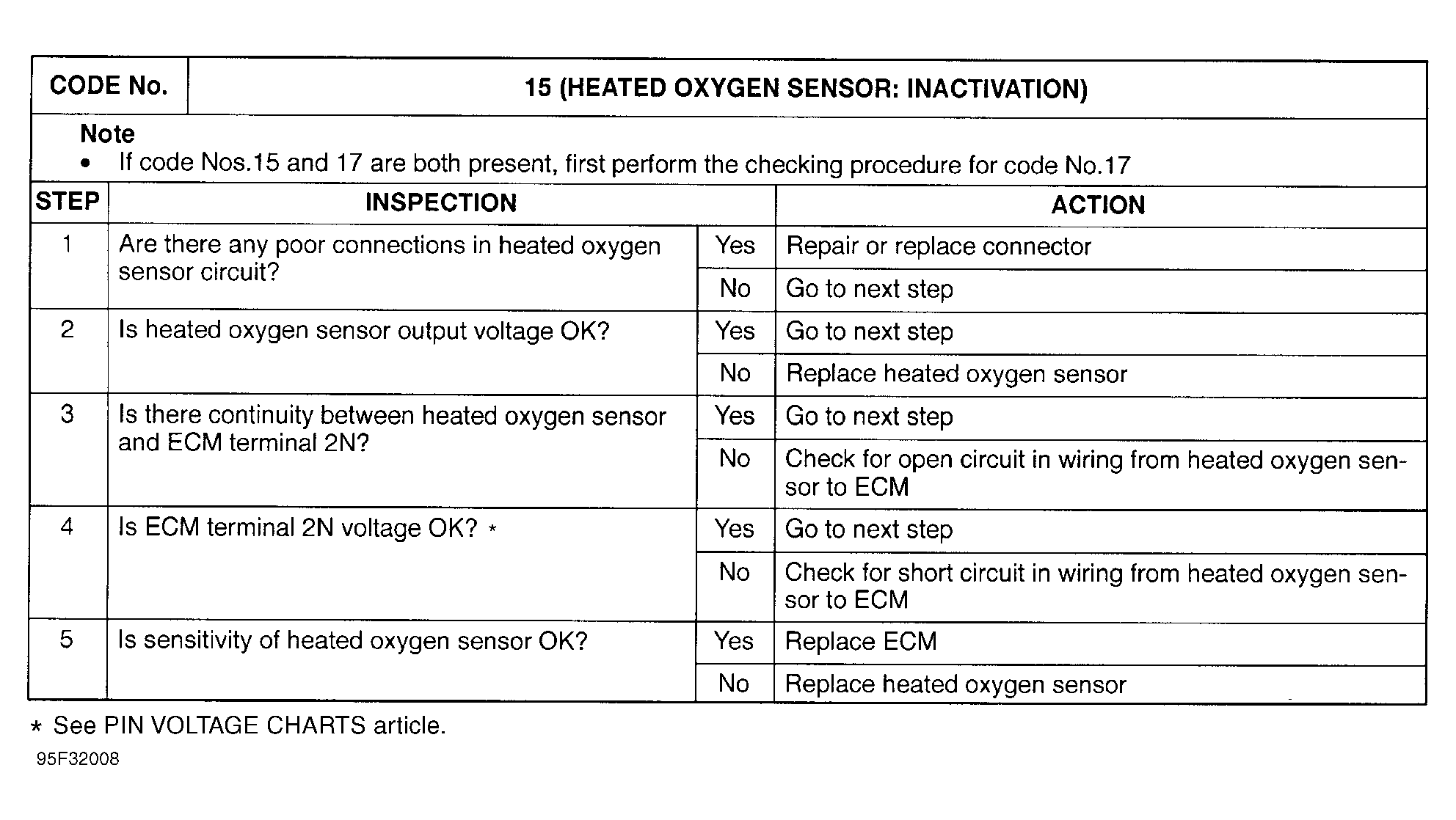

Fig 1: Trouble Code No. 15 Heated Oxygen Sensor - Inactivation

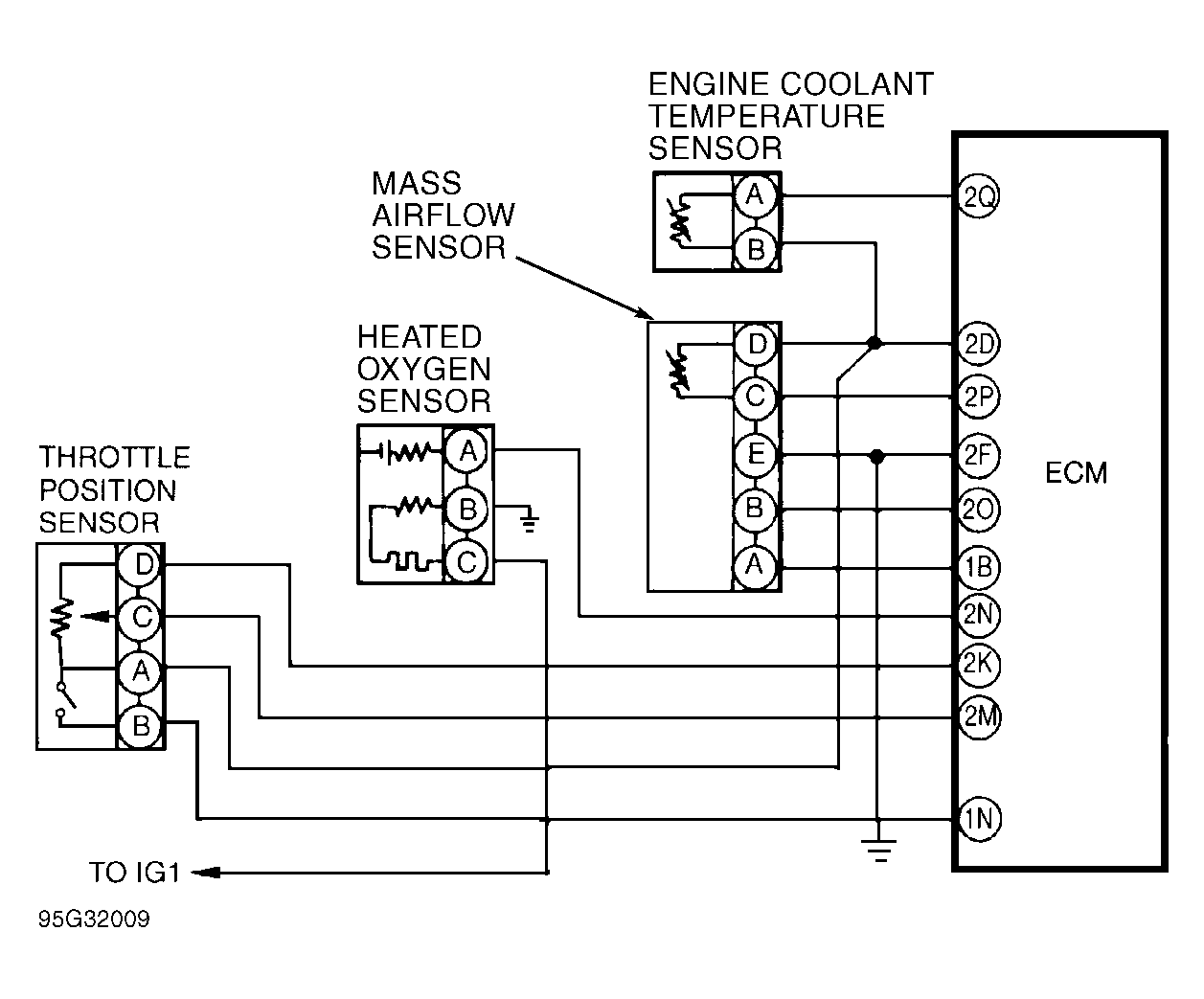

Fig 2: Trouble Code No. 15 Engine Coolant Temperature Sensor, Throttle Position Sensor, Mass Air Flow Sensor & Heated Oxygen Sensor Circuit Diagram
