Code 4: SGT Signal - Distributor

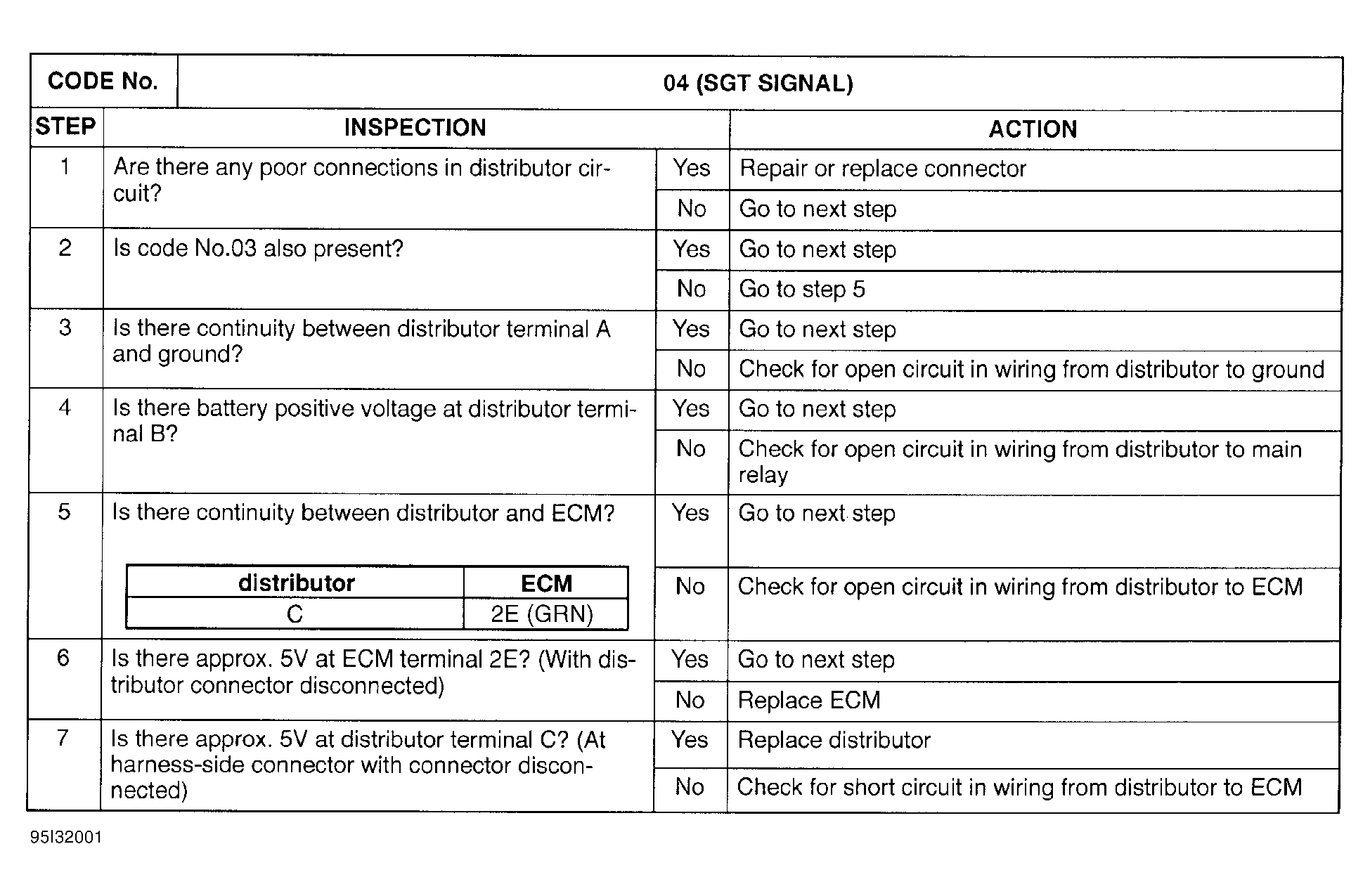

Fig 1: Trouble Code No. 4 SGT Signal - Distributor

G95I32001

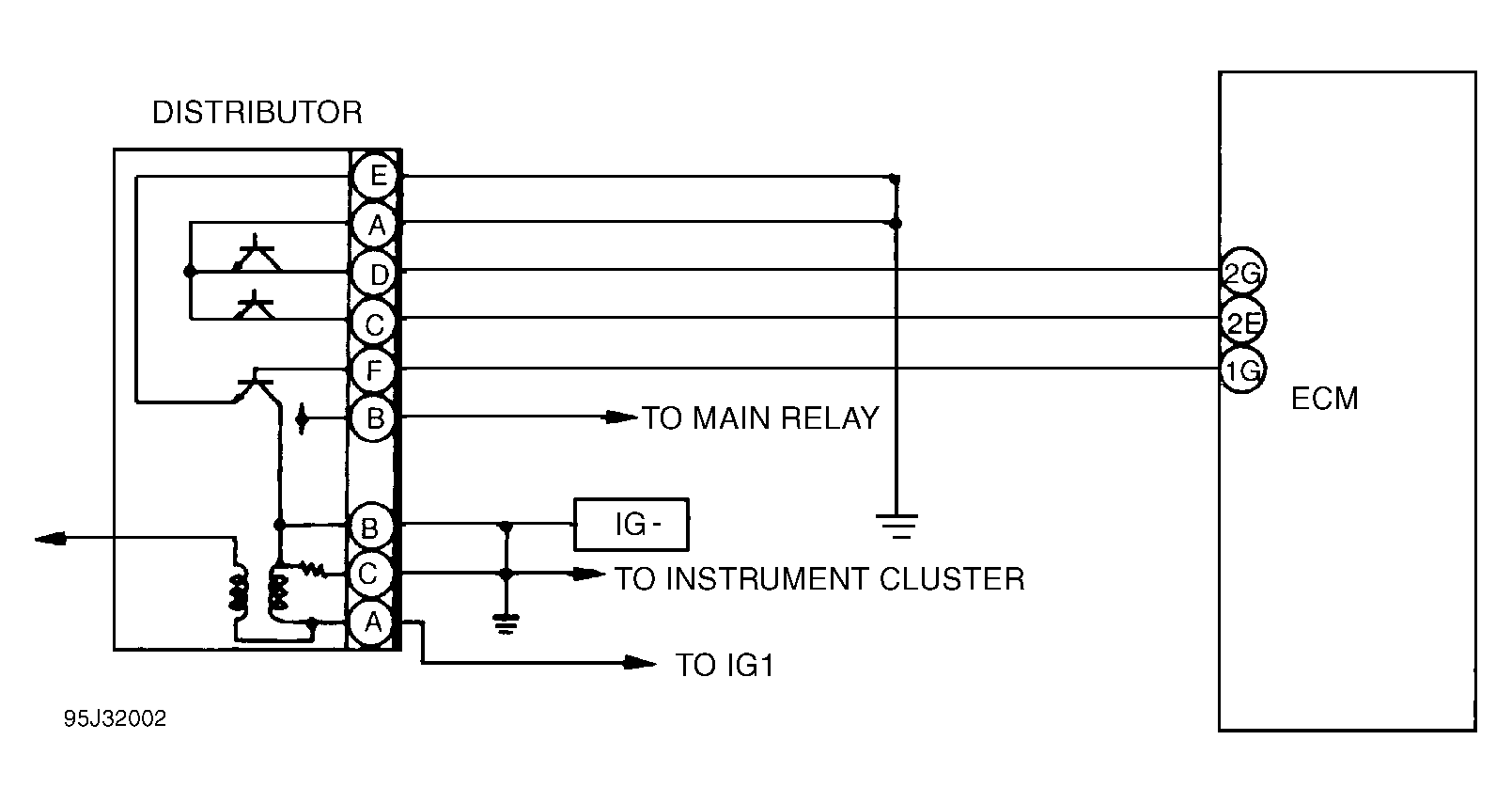

Fig 2: Trouble Code No. 4 Distributor Circuit Diagram

G95J32002
