Code 41: VICS Solenoid Valve

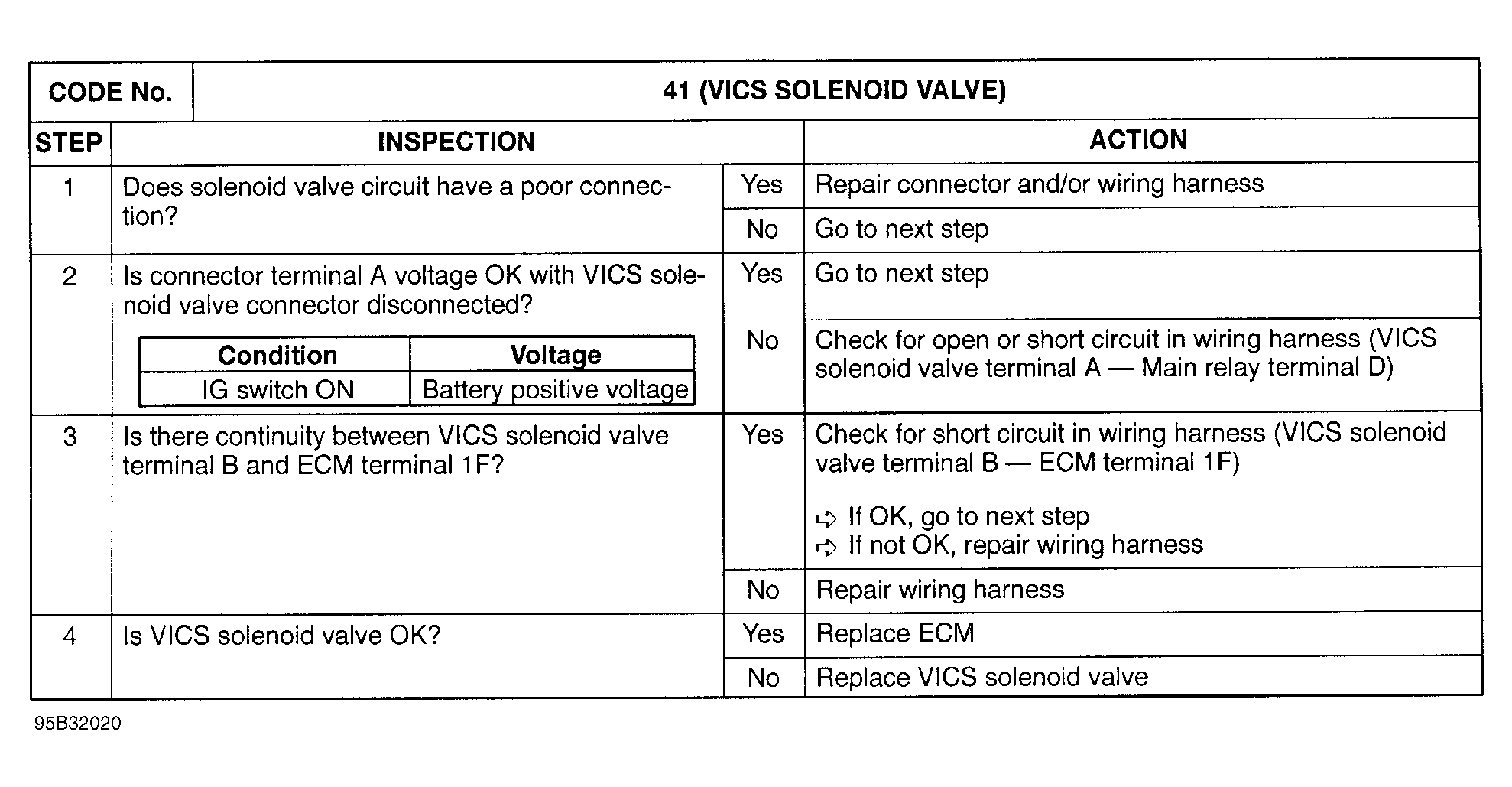

Fig 1: Trouble Code No. 41 Vics Solenoid Valve

G95B32020

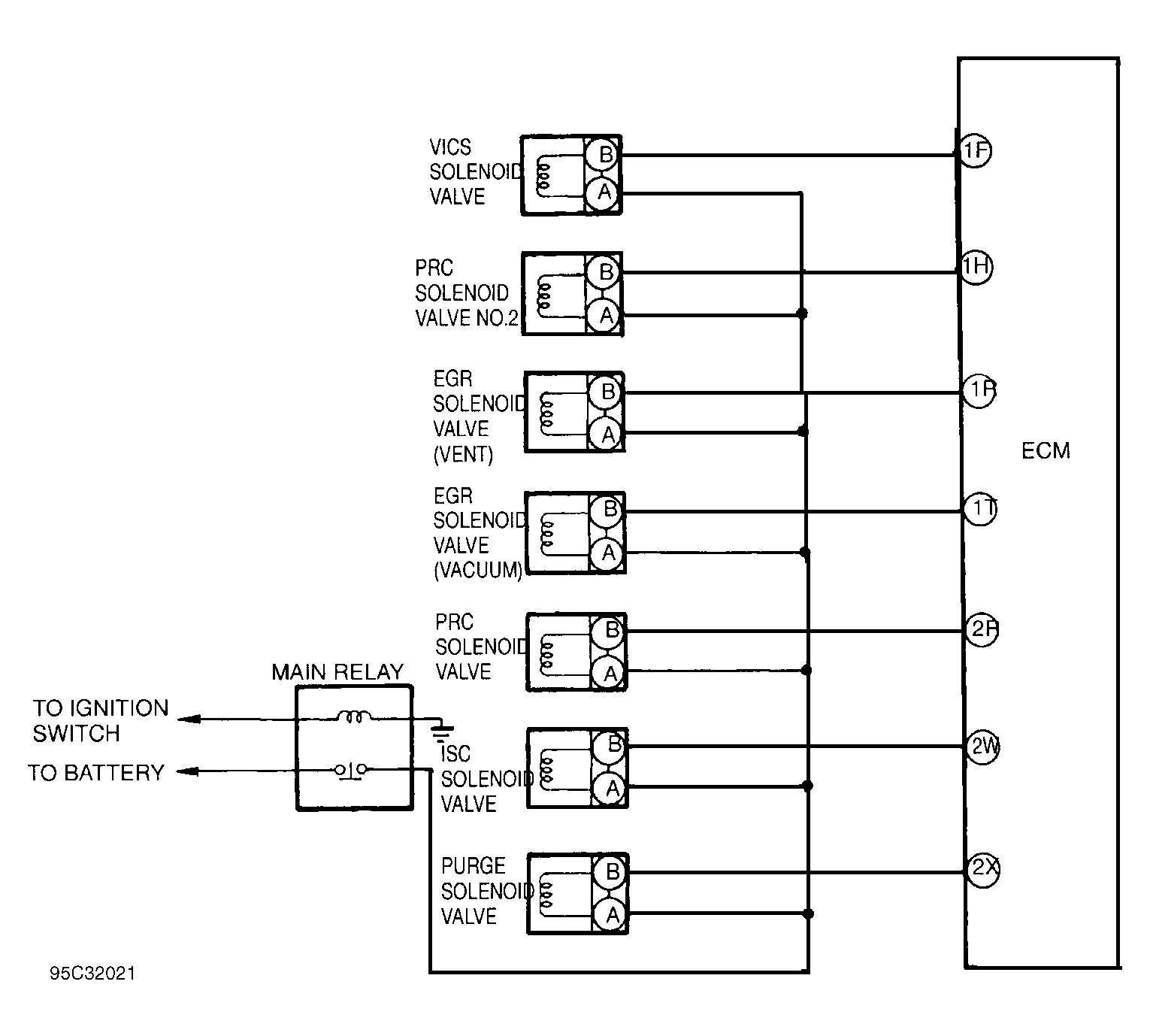

Fig 2: Trouble Code No. 41 Solenoid Valve Circuit Diagram

G95C32021
