Trouble Code IDEFINITION Charts: Notes

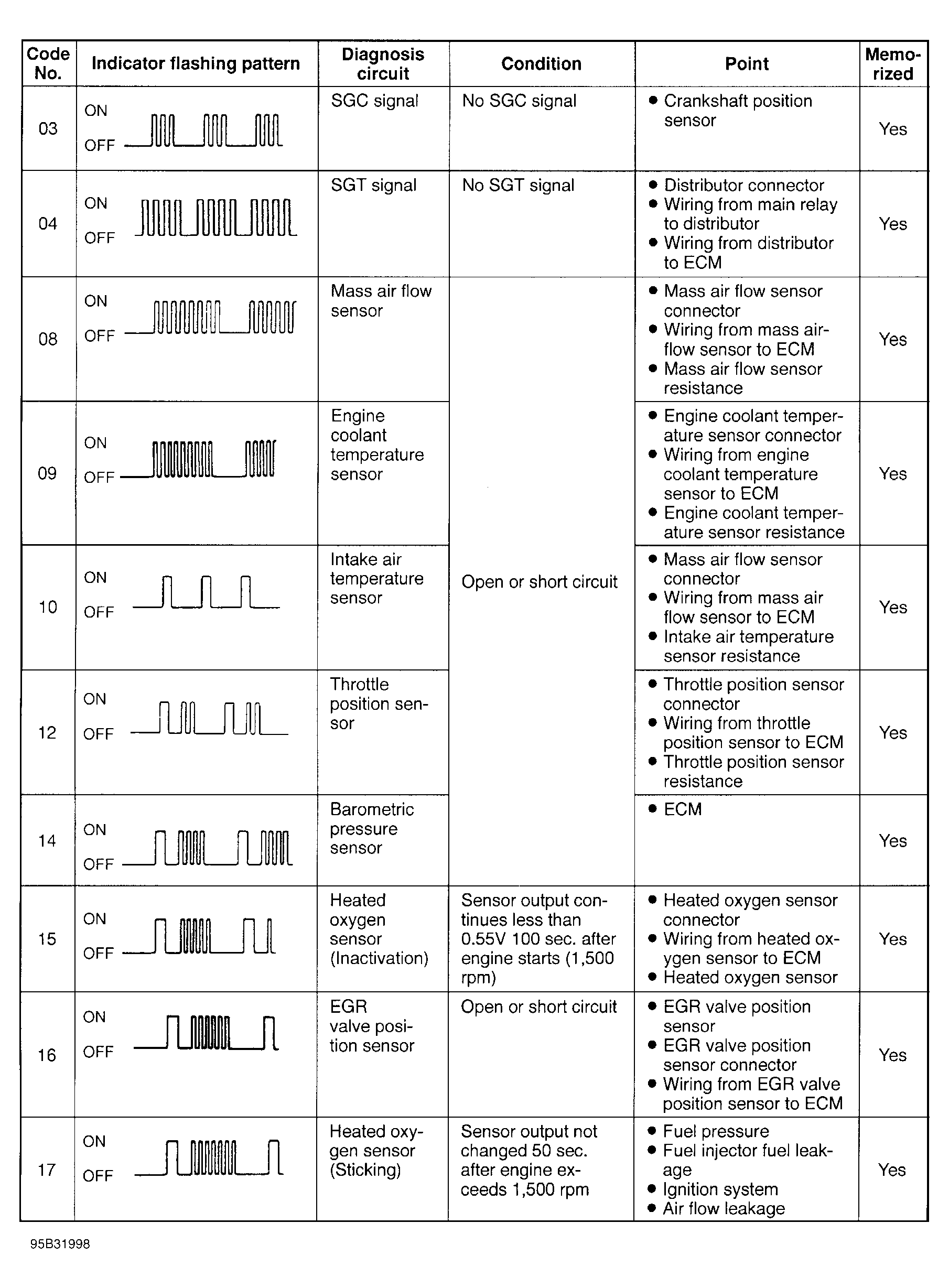

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

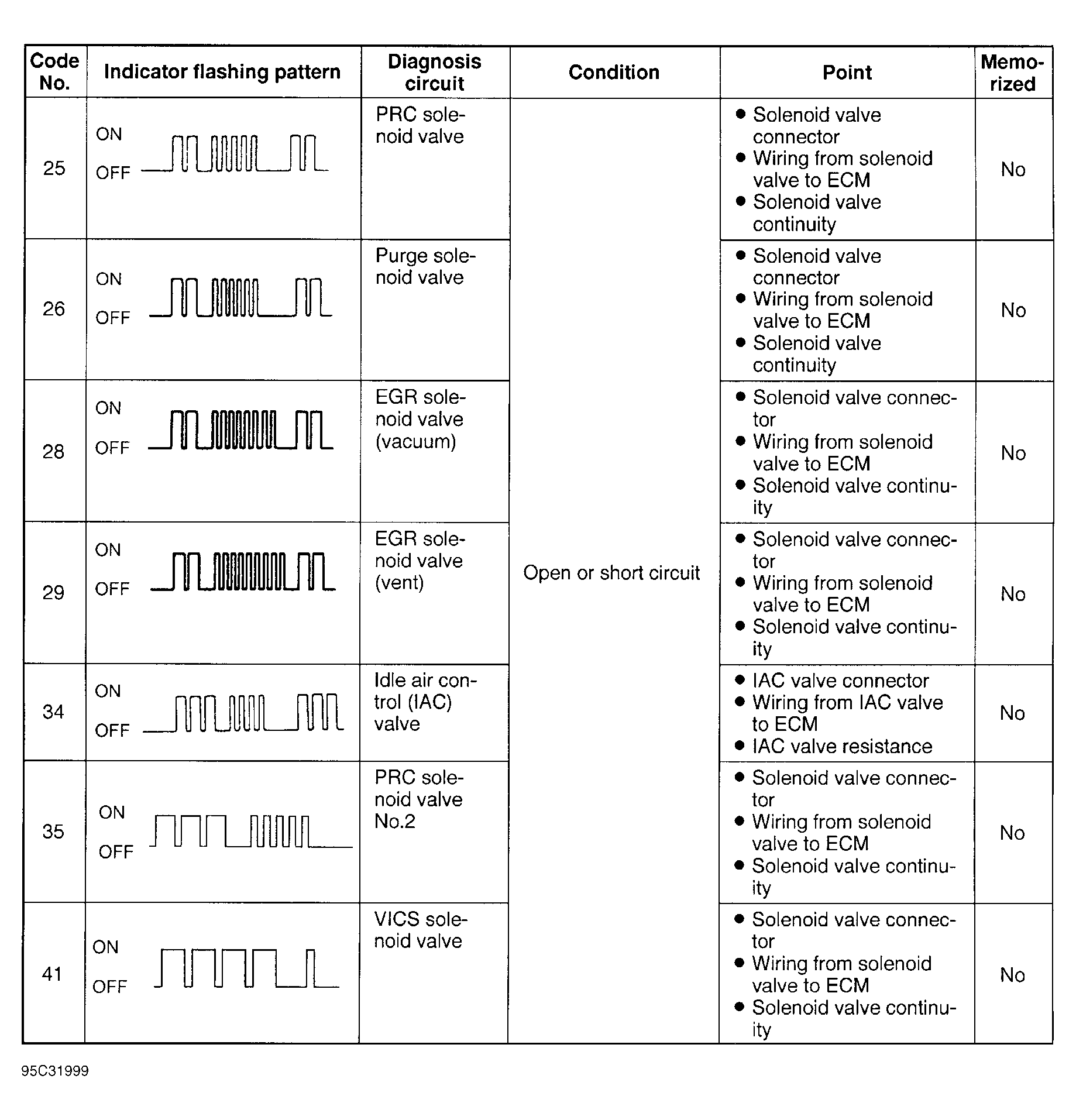

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
