Code 10: Intake Air Temperature Sensor

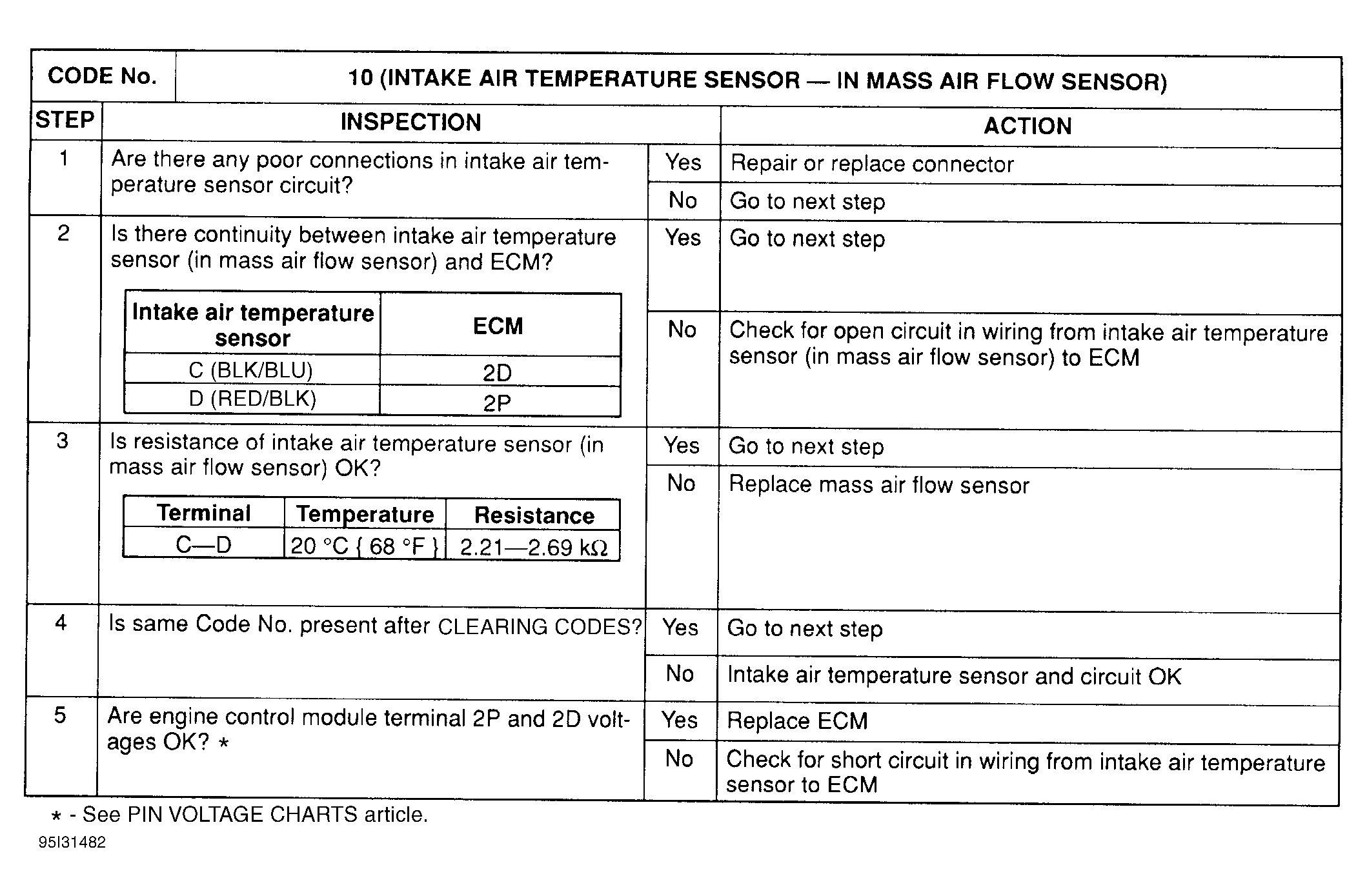

Fig 1: Trouble Code No. 10 Intake Air Temperature Sensor

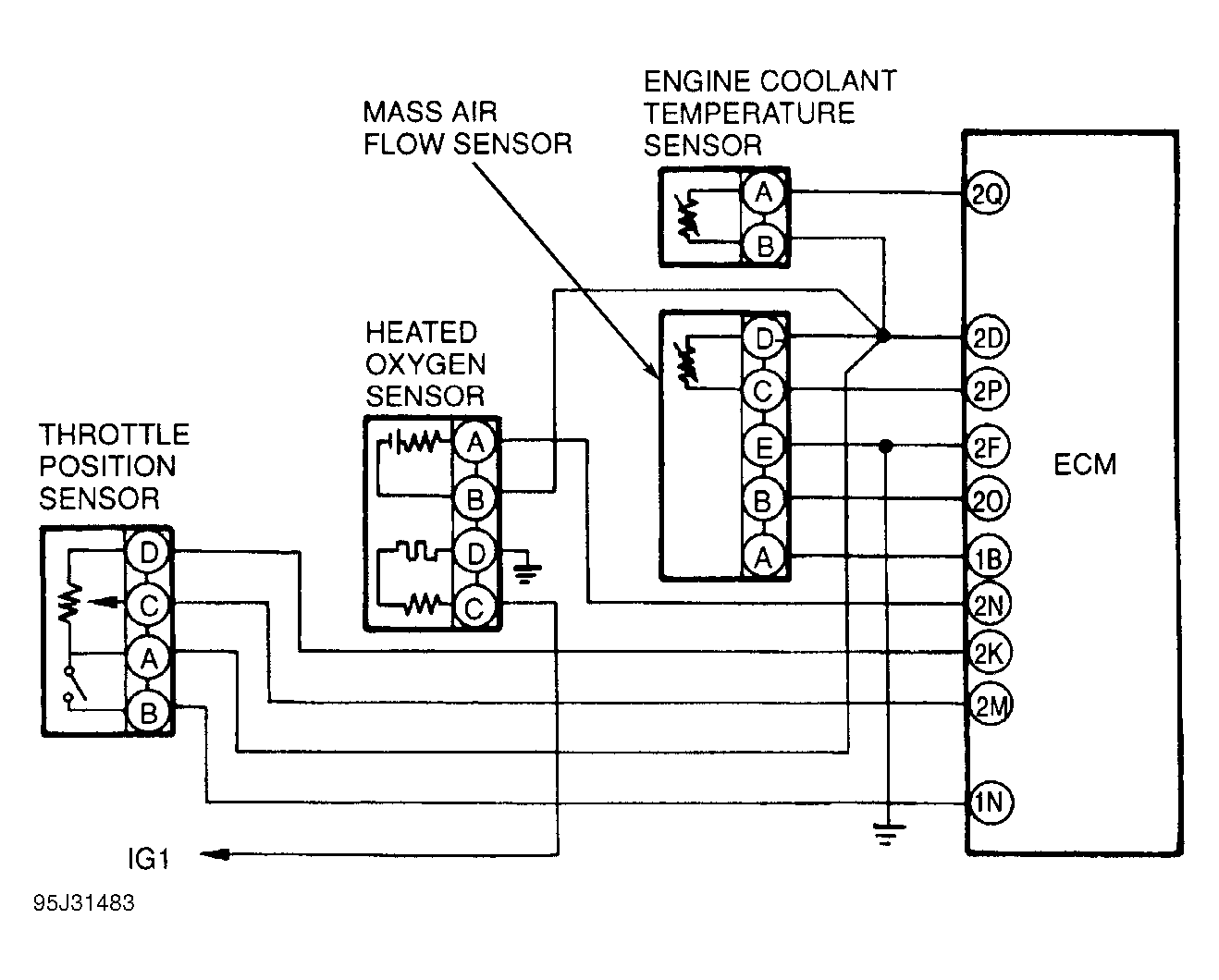

Fig 2: Trouble Code No. 10 Throttle Position Sensor, Mass Air Flow Sensor & Engine Coolant Temperature Sensor Circuit Diagram
