Code 16: EGR Valve Position Sensor

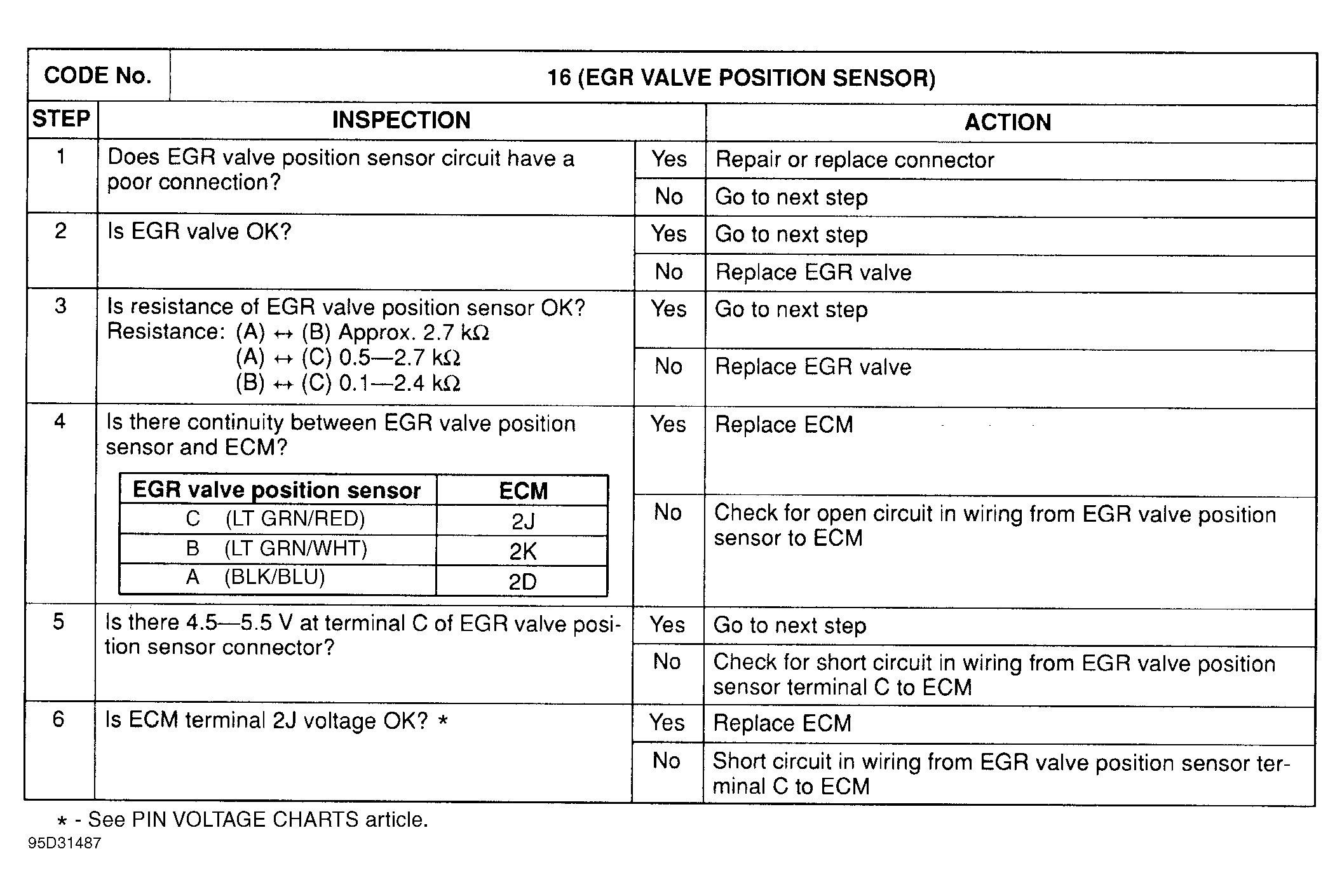

Fig 1: Trouble Code No. 16 EGR Valve Position Sensor

G95D31487

Fig 2: Trouble Code No. 16 EGR Valve Position Sensor Circuit Diagram

G95E31488
