Code 34: Idle Air Control Valve

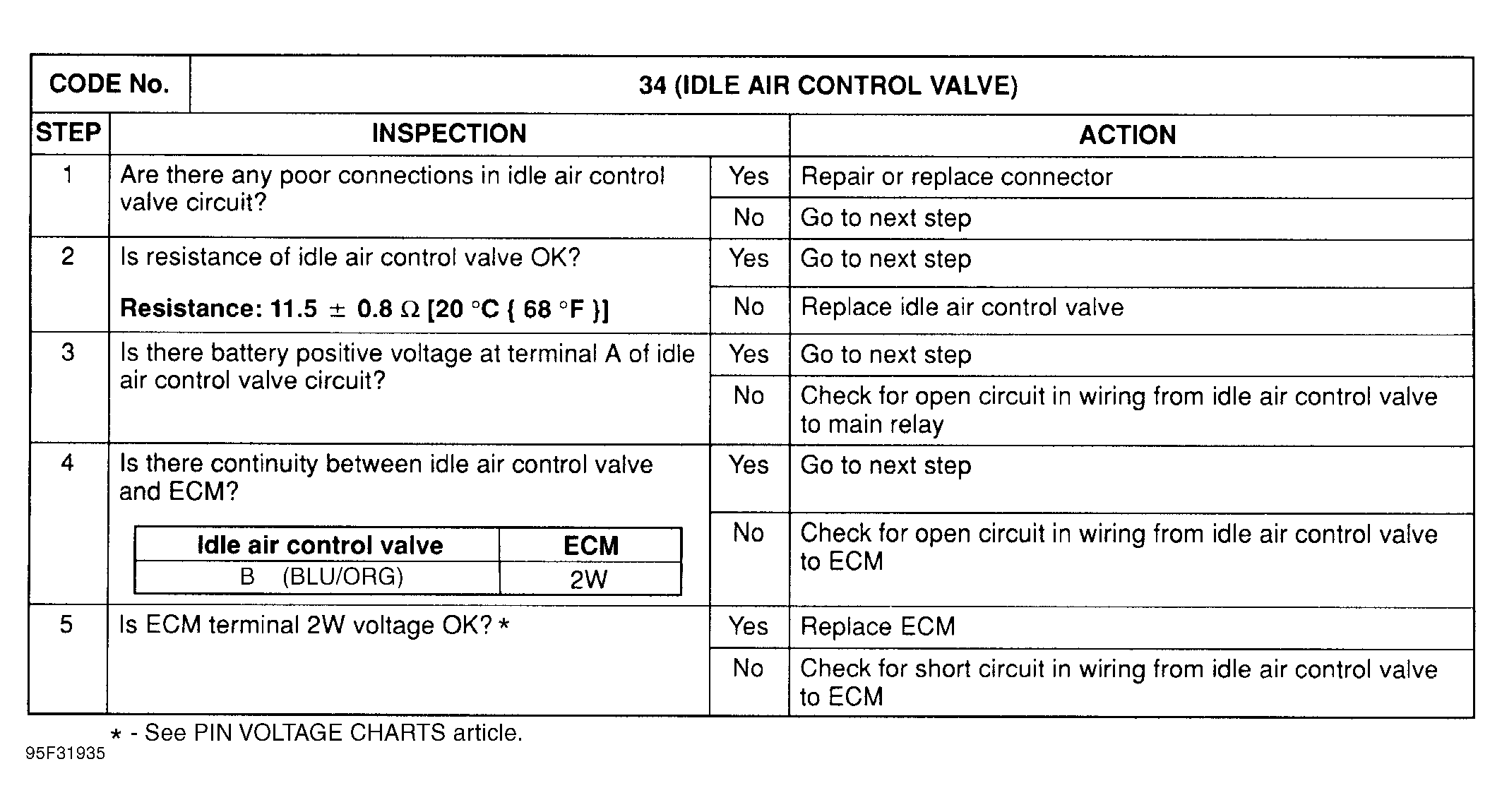

Fig 1: Trouble Code No. 34 Idle Air Control Valve

G95F31935

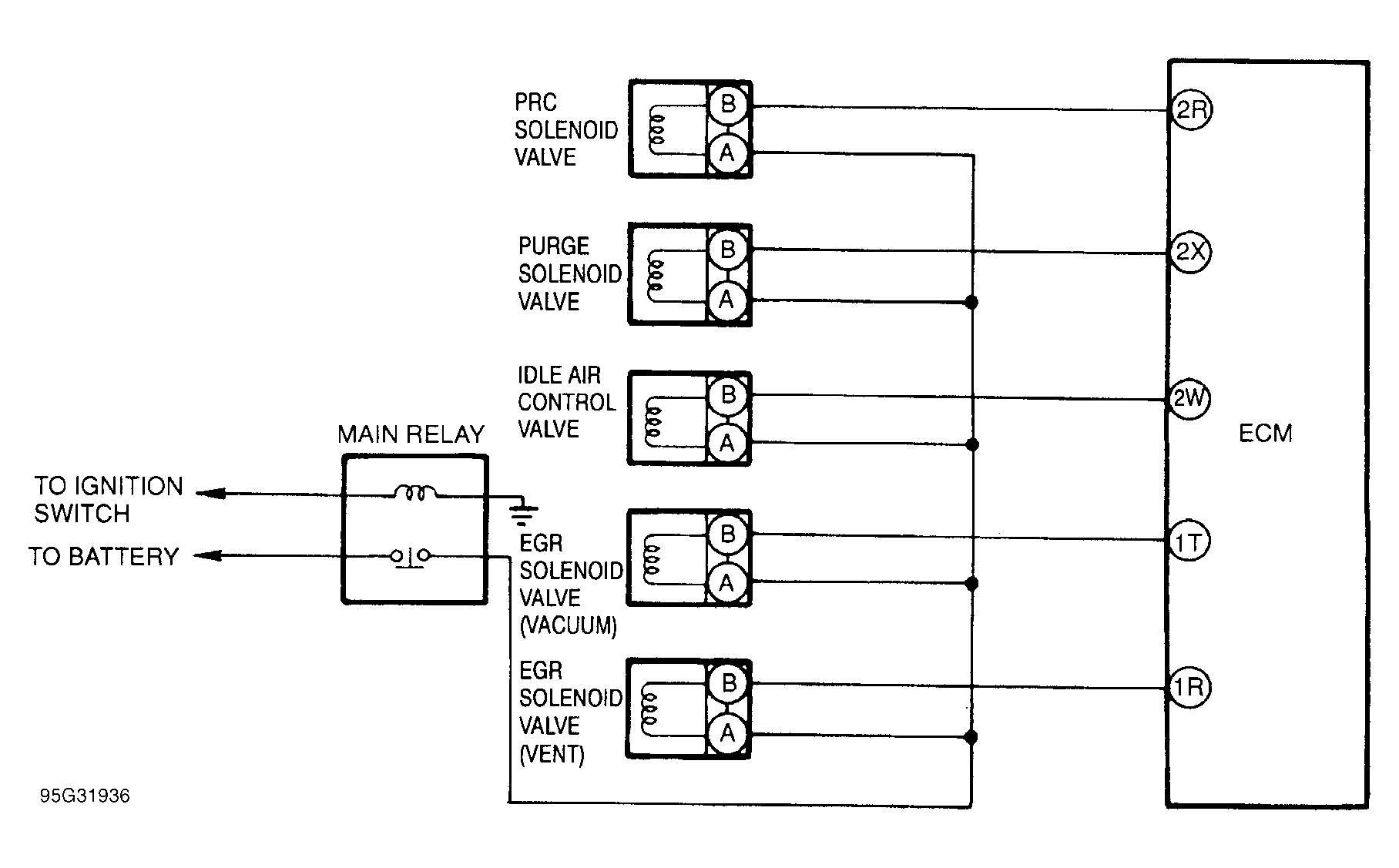

Fig 2: Trouble Code No. 34 Solenoid Valve Circuit Diagram

G95G31936
