Trouble Code Identification Chart
›
Notes
Trouble Code Identification Chart: Notes

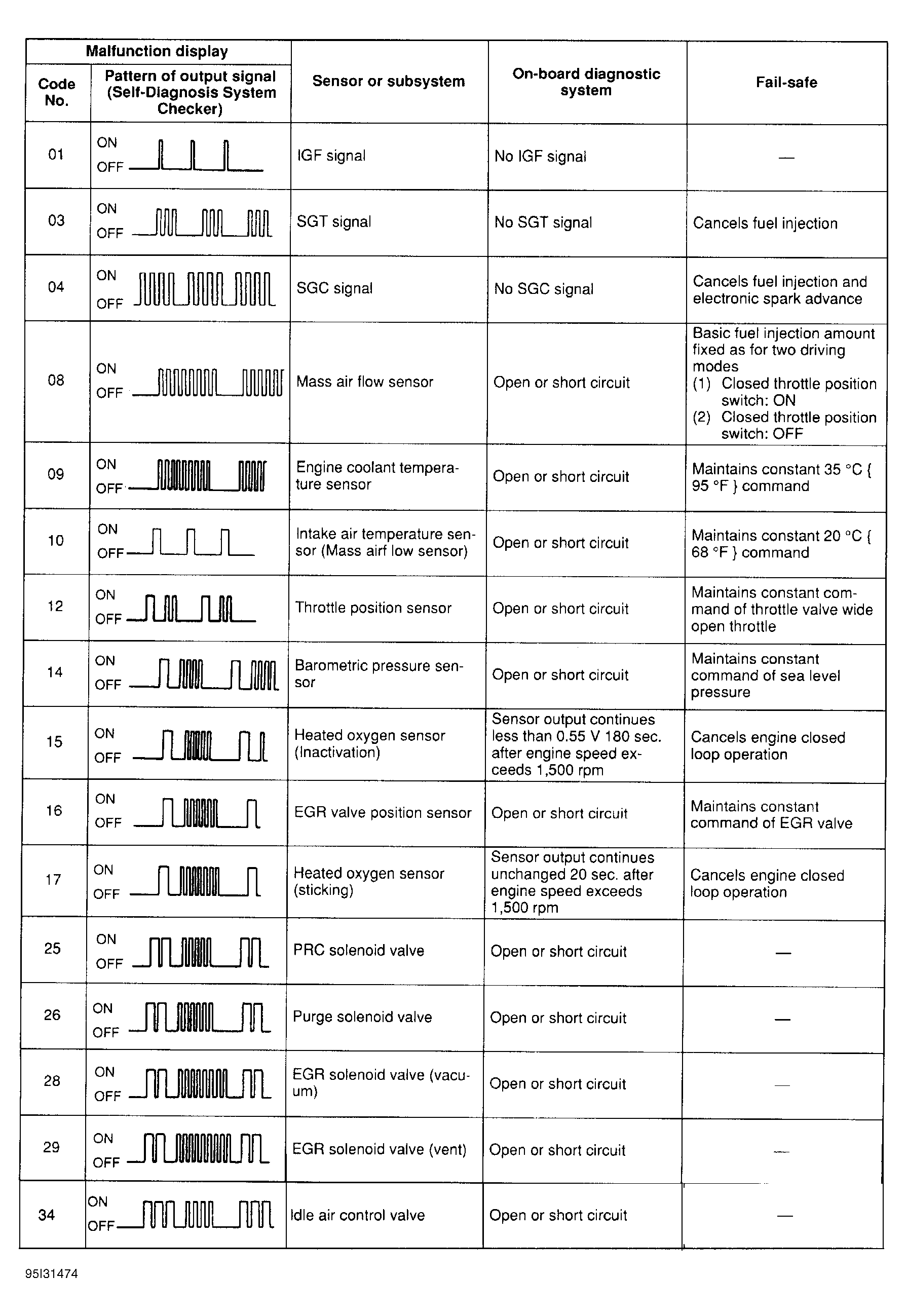

Fig 1: Trouble Code Identification Chart
Courtesy of MAZDA MOTOR CO.
Courtesy of MAZDA MOTOR CO.
