Pin Voltage Charts

NOTE: The following charts are courtesy of Mazda Motors Corp.

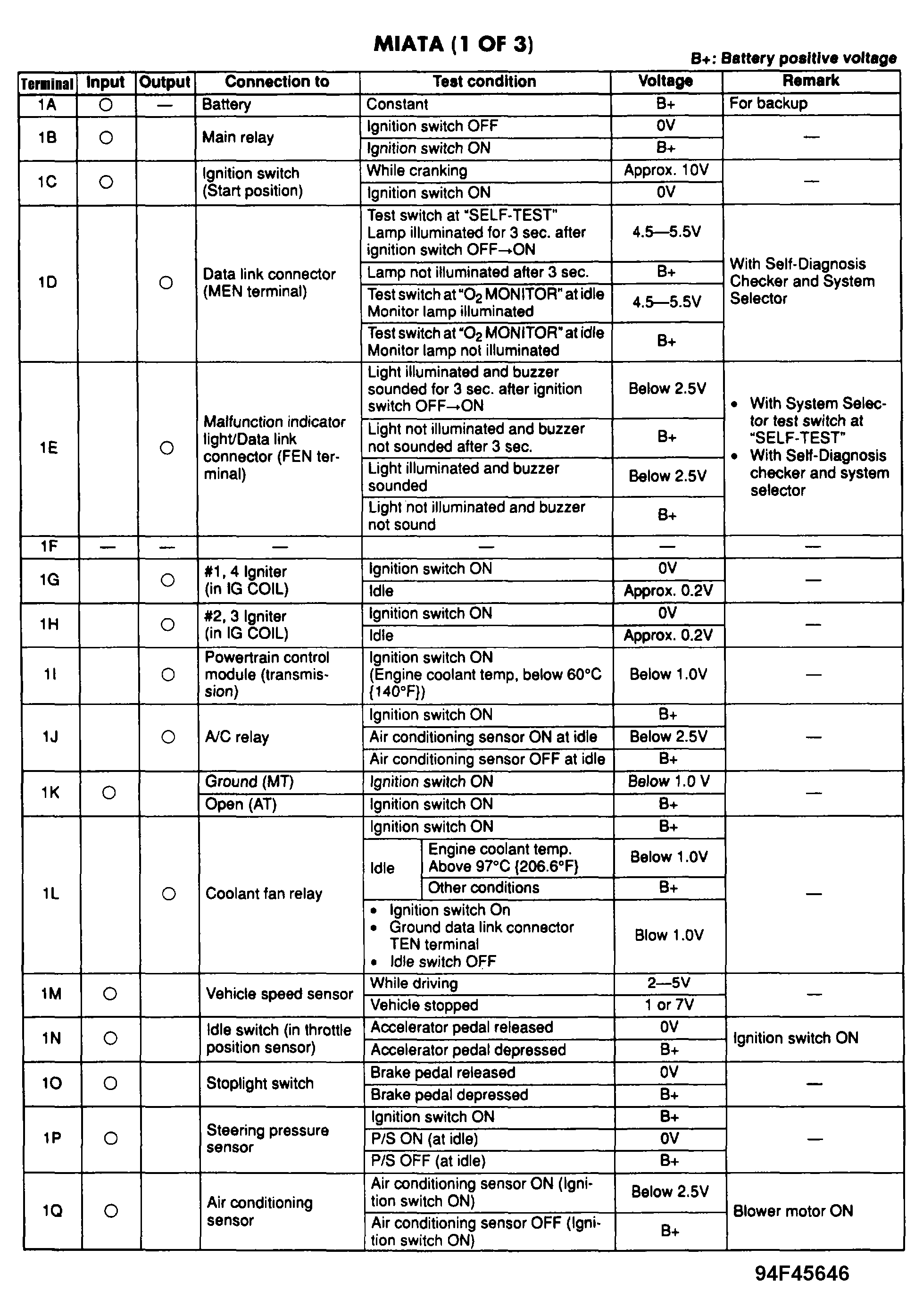

Fig 1: ECU Pin Voltage Chart (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

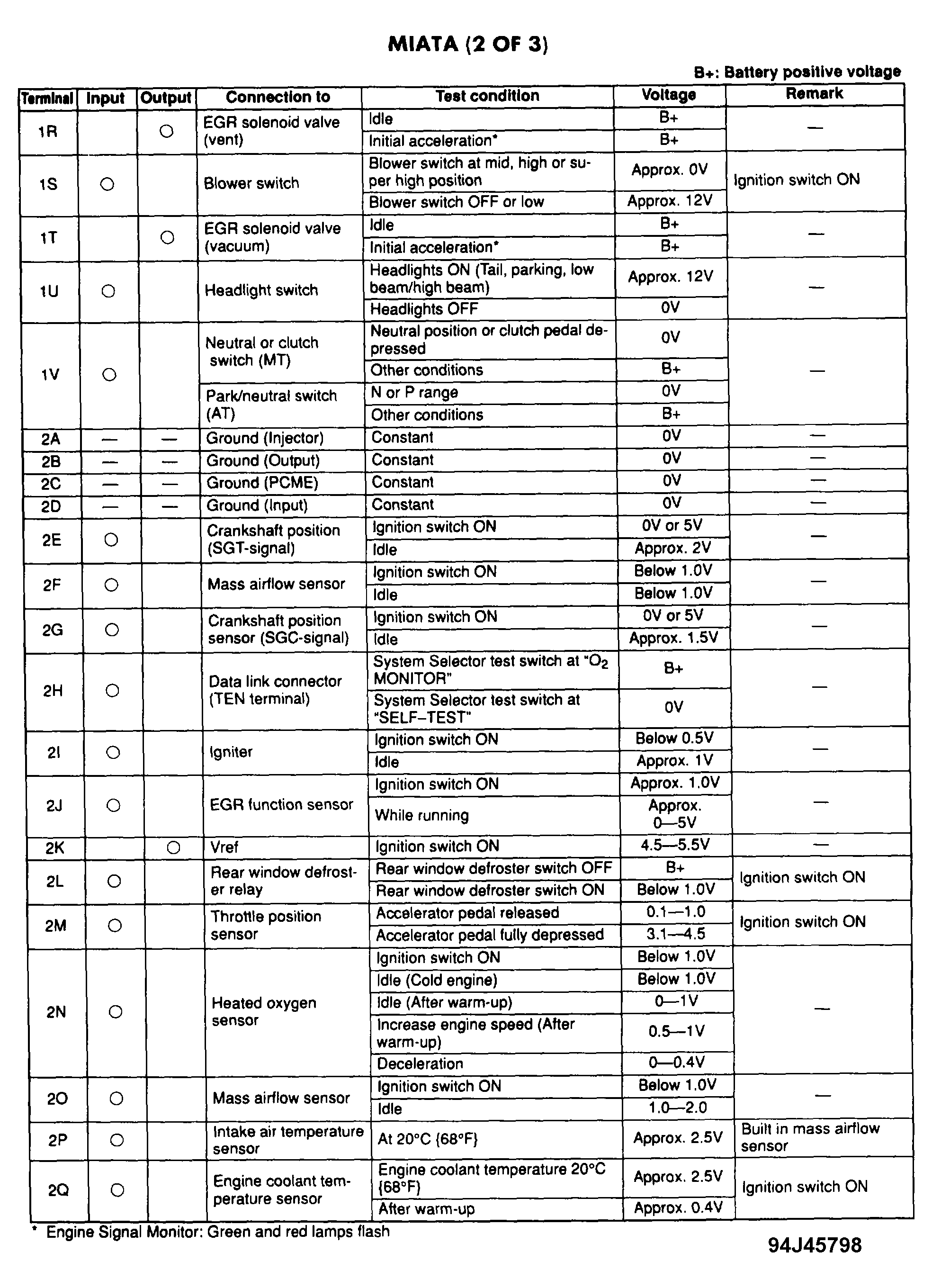

Fig 2: ECU Pin Voltage Chart (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

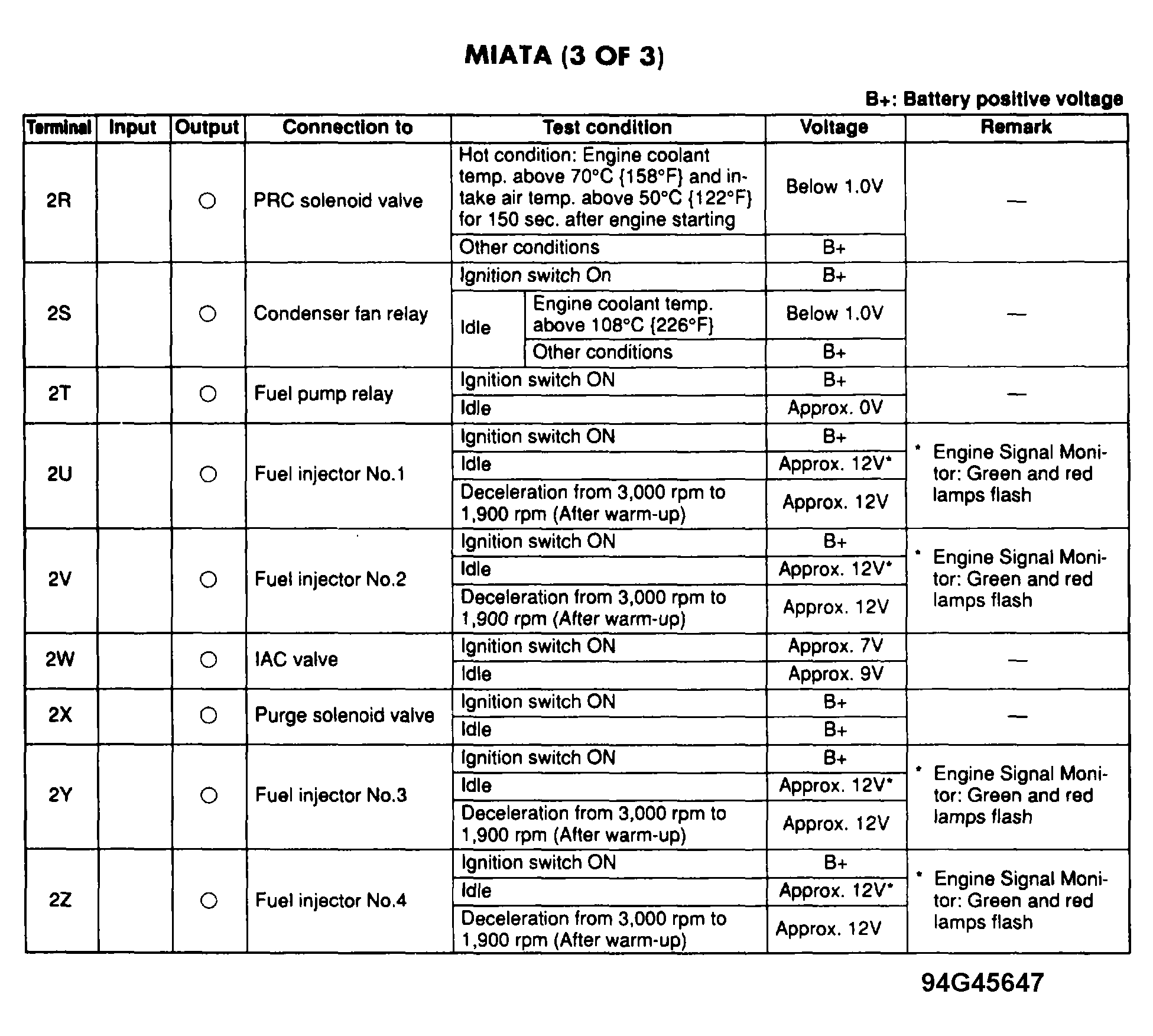

Fig 3: ECU Pin Voltage Chart (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

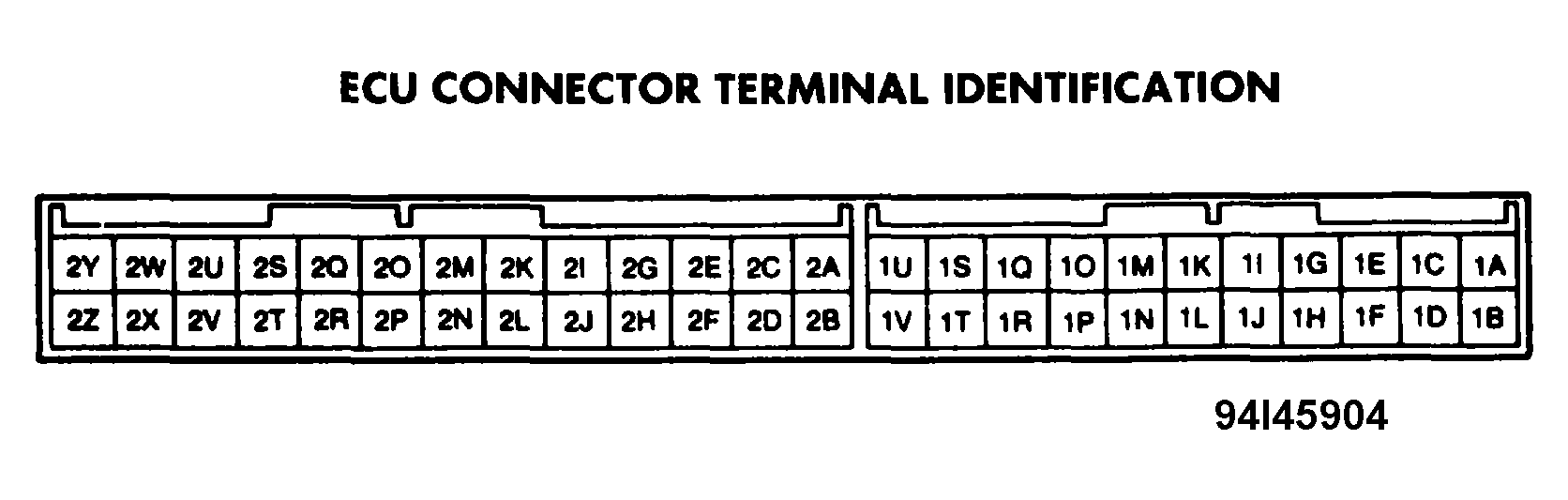

Fig 4: ECU Connector Terminal Identification

Courtesy of MAZDA MOTORS CORP.
