Removal & Installation

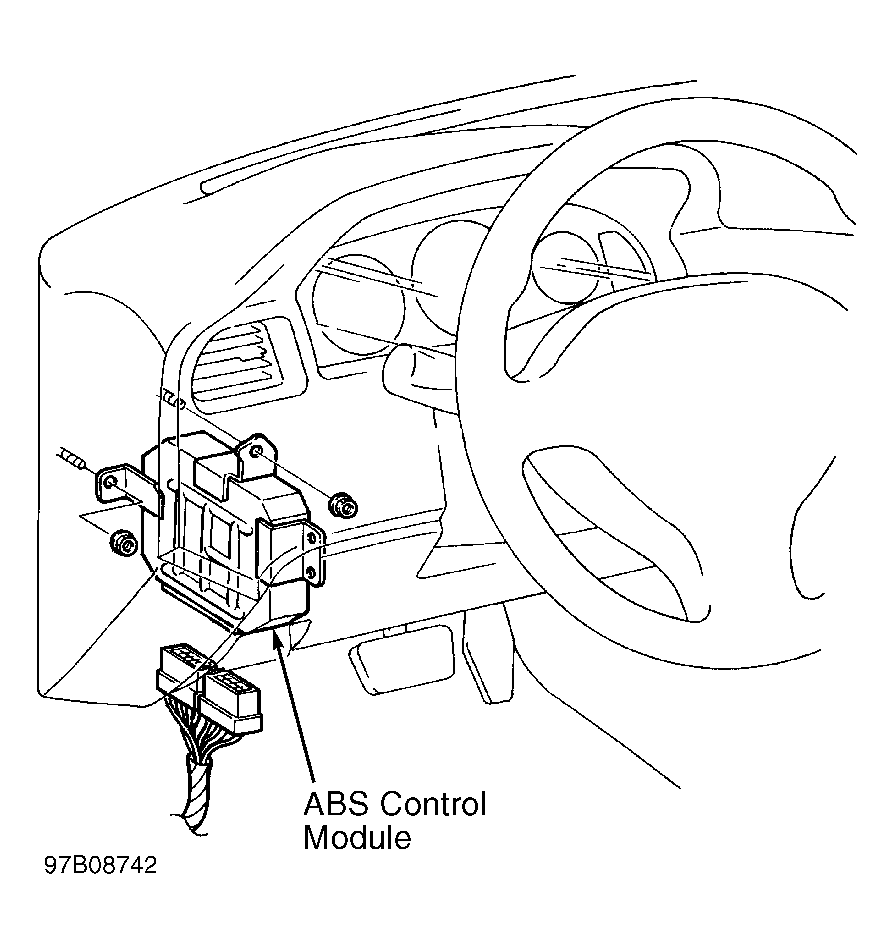

- Disconnect negative battery cable. ABS control module is located behind left side of instrument panel. See Fig 1 .
- Remove ABS control module mounting bolts/nuts. Disconnect ABS control module electrical connectors. Remove ABS control module. To install, reverse removal procedure. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS .
