Code 11: Intake Air Temperature Sensor

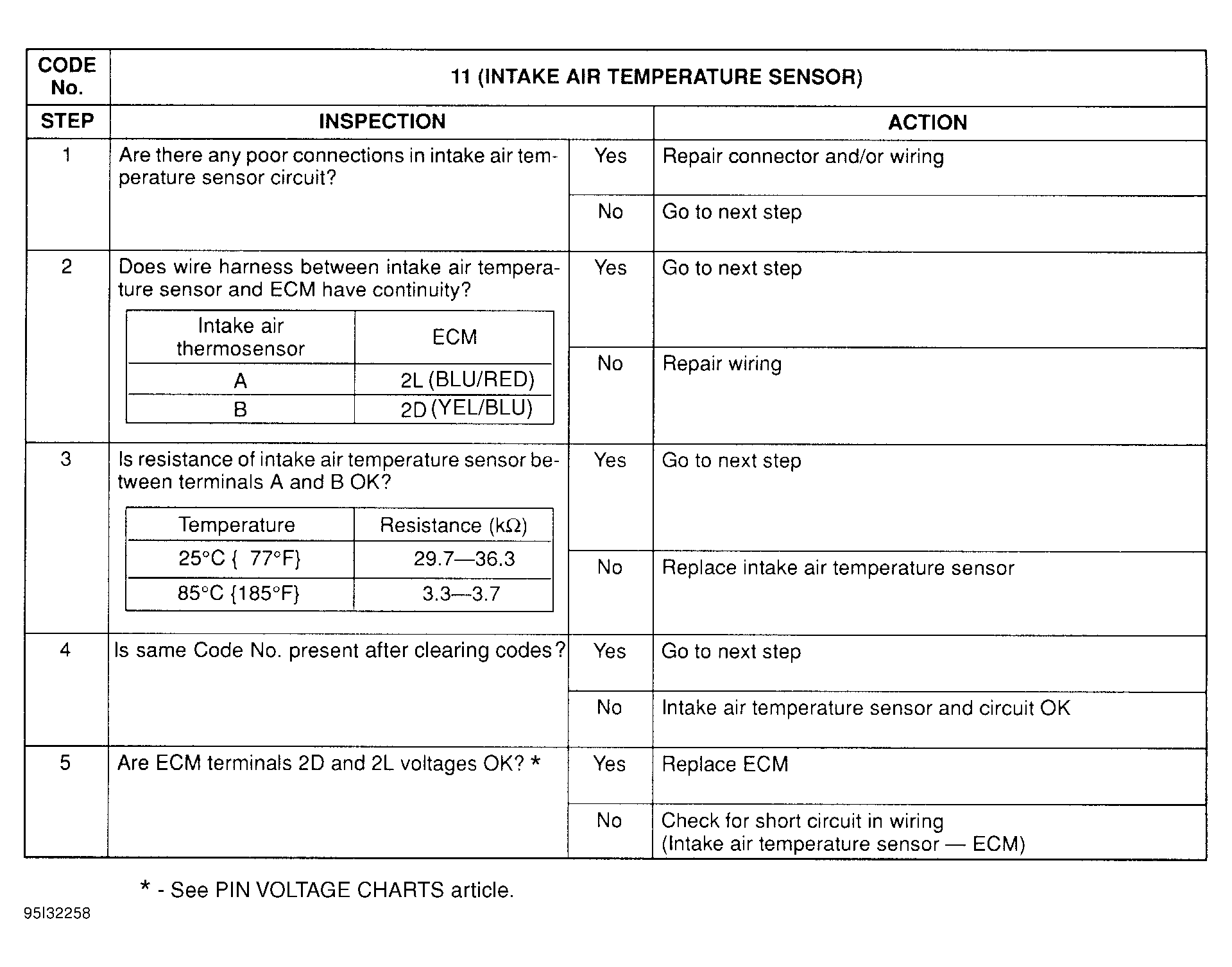

Fig 1: Trouble Code No. 11 Intake Air Temperature Sensor

G95I32258

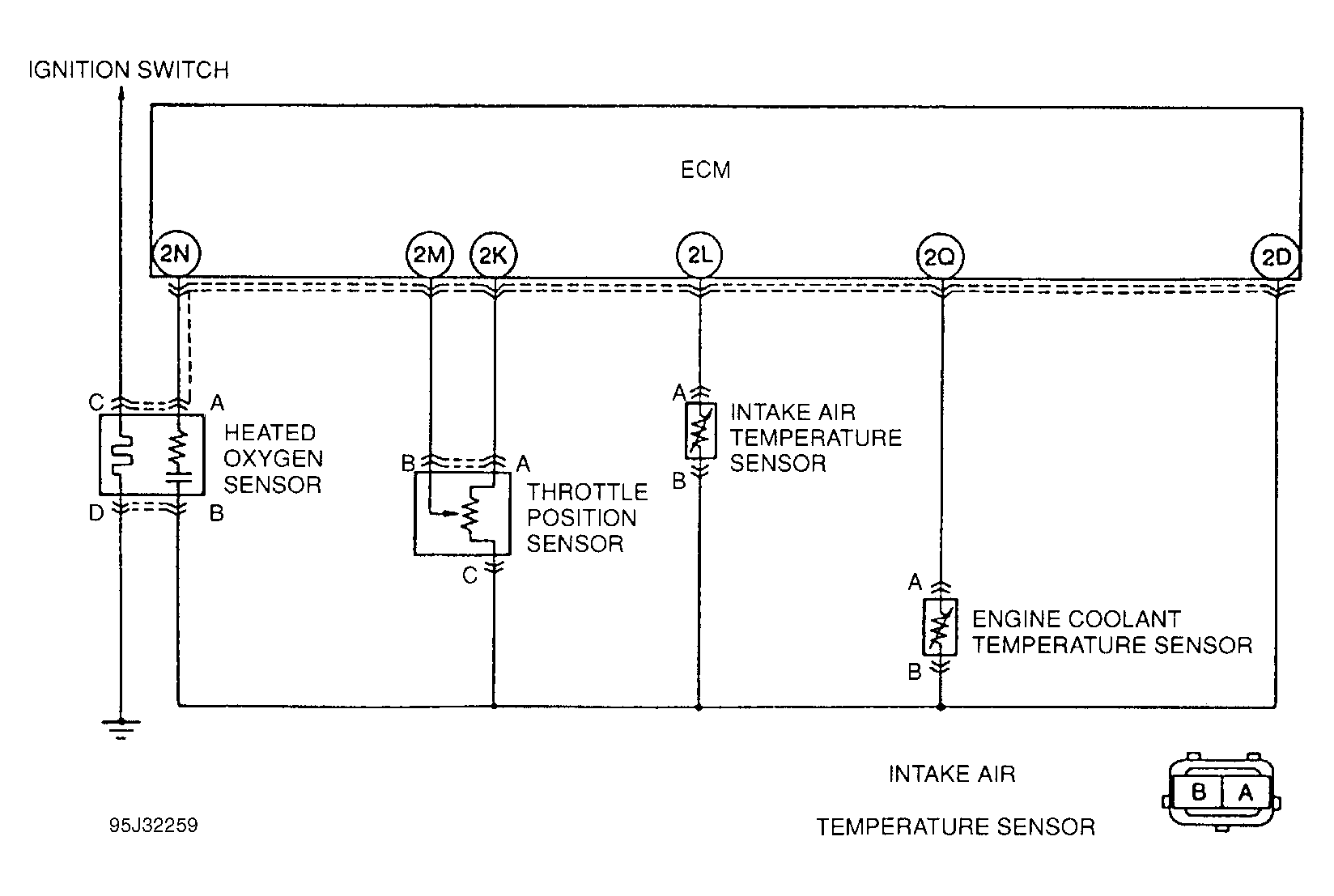

Fig 2: Trouble Code No. 11 Intake AIr Temperature Sensor Circuit Diagram

G95J32259
