Code 15: Heated Oxygen Sensor - Inactivation

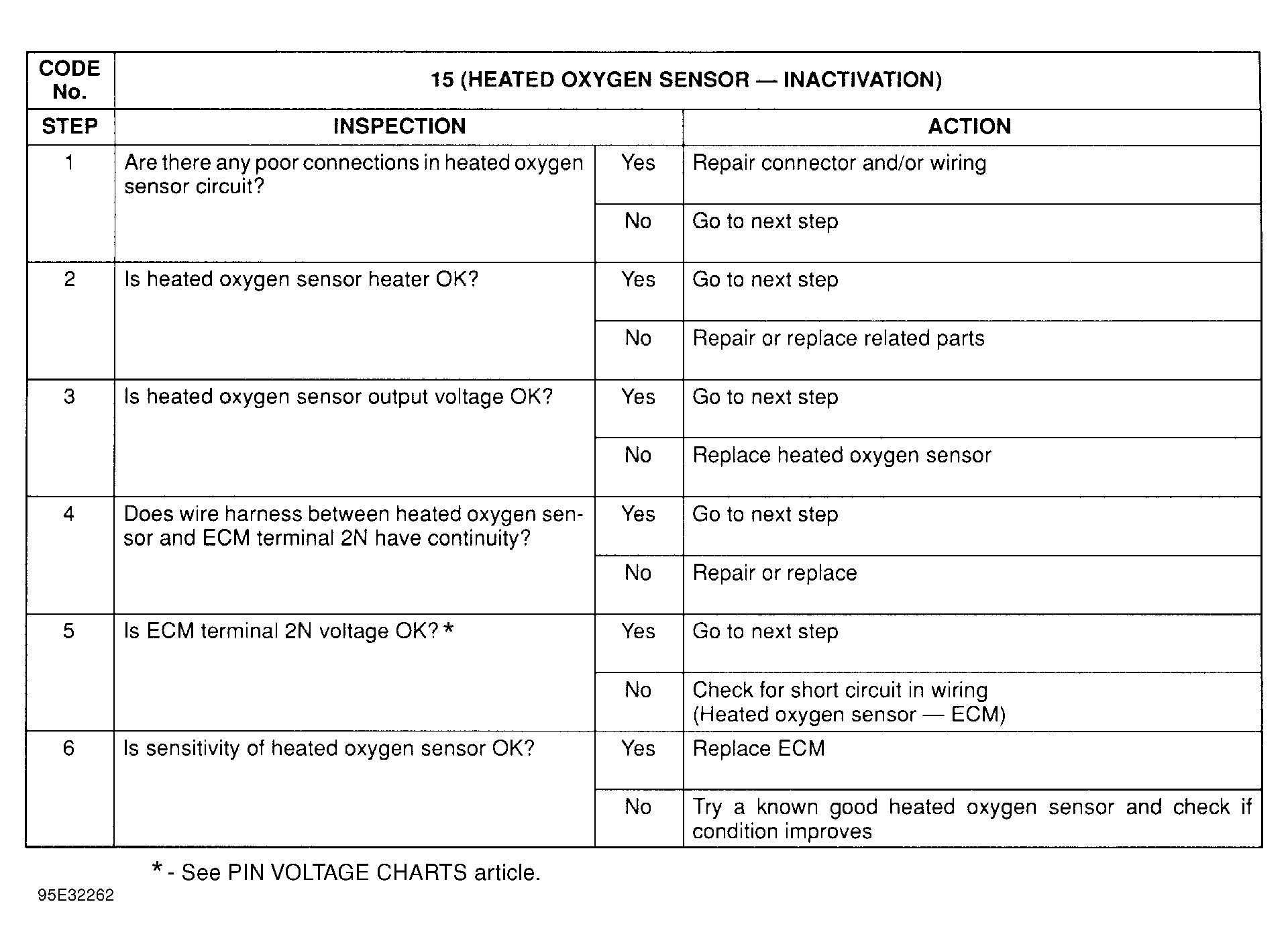

Fig 1: Trouble Code No. 15 Heated Oxygen Sensor - Inactivation

G95E32262

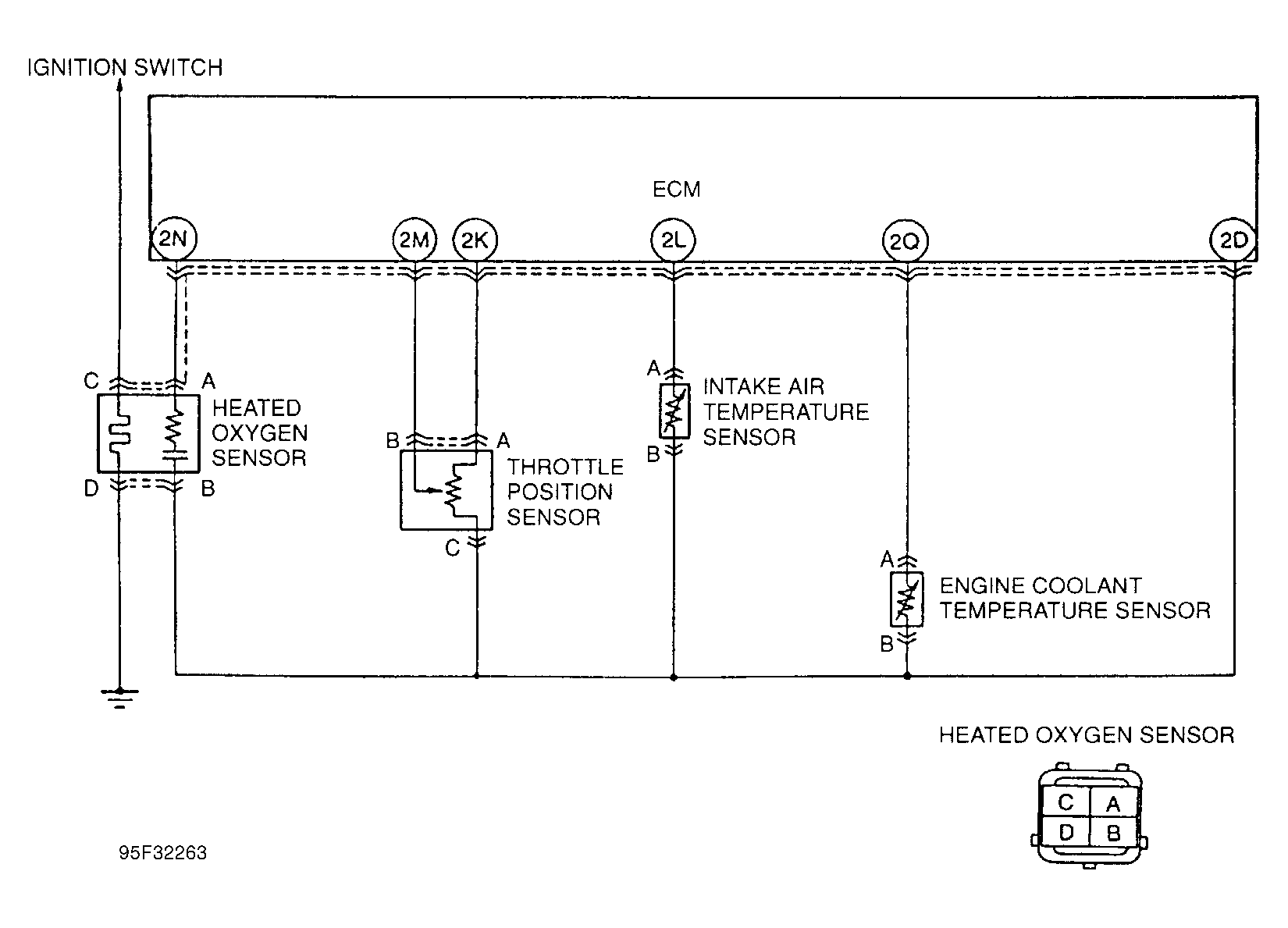

Fig 2: Trouble Code No. 15 Heated Oxygen Sensor Circuit Diagram

G95F32263
