Code 2: Distributor - SGT Signal

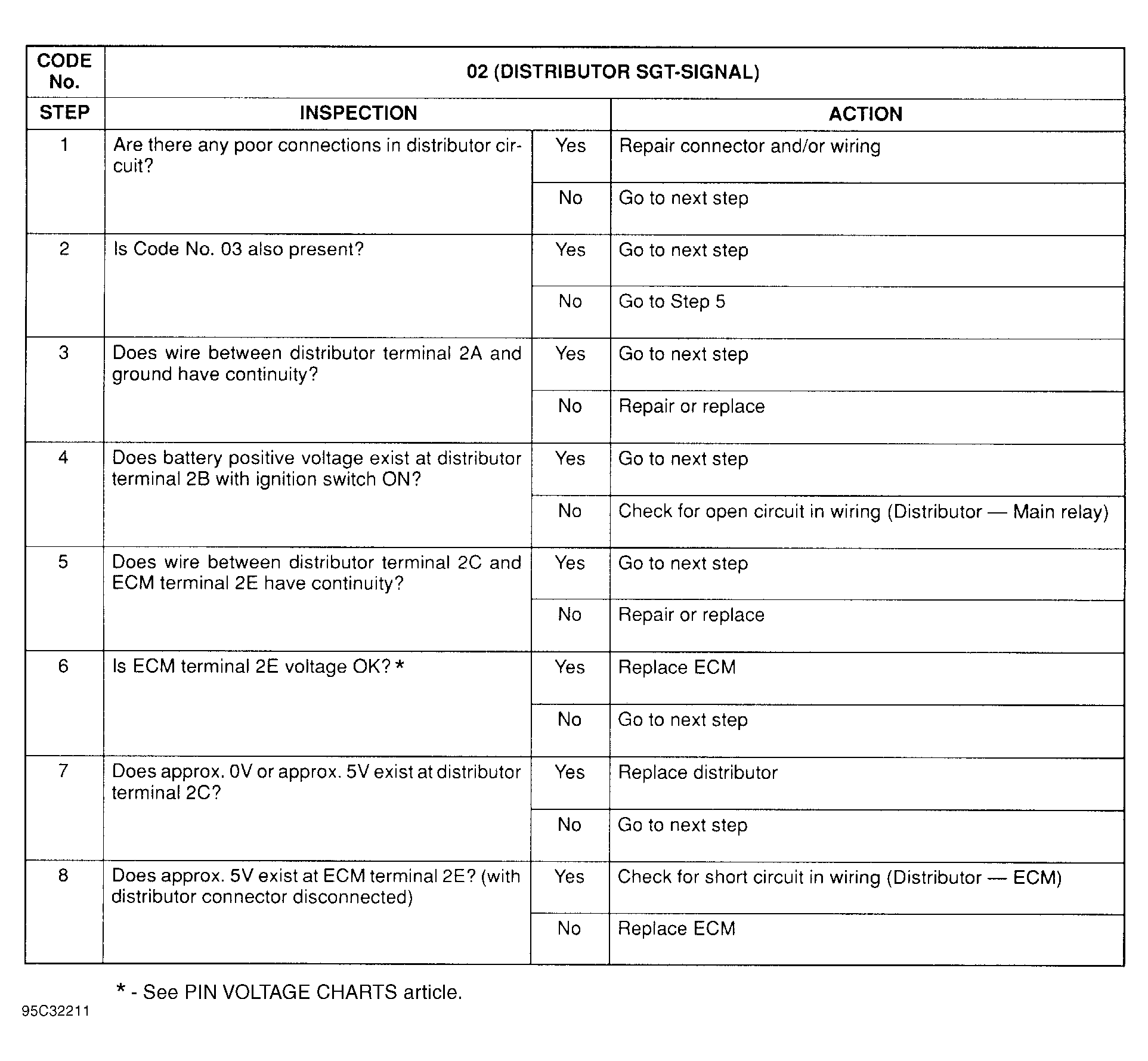

Fig 1: Trouble Code No. 2 Distributor - SGT Signal

G95C32211

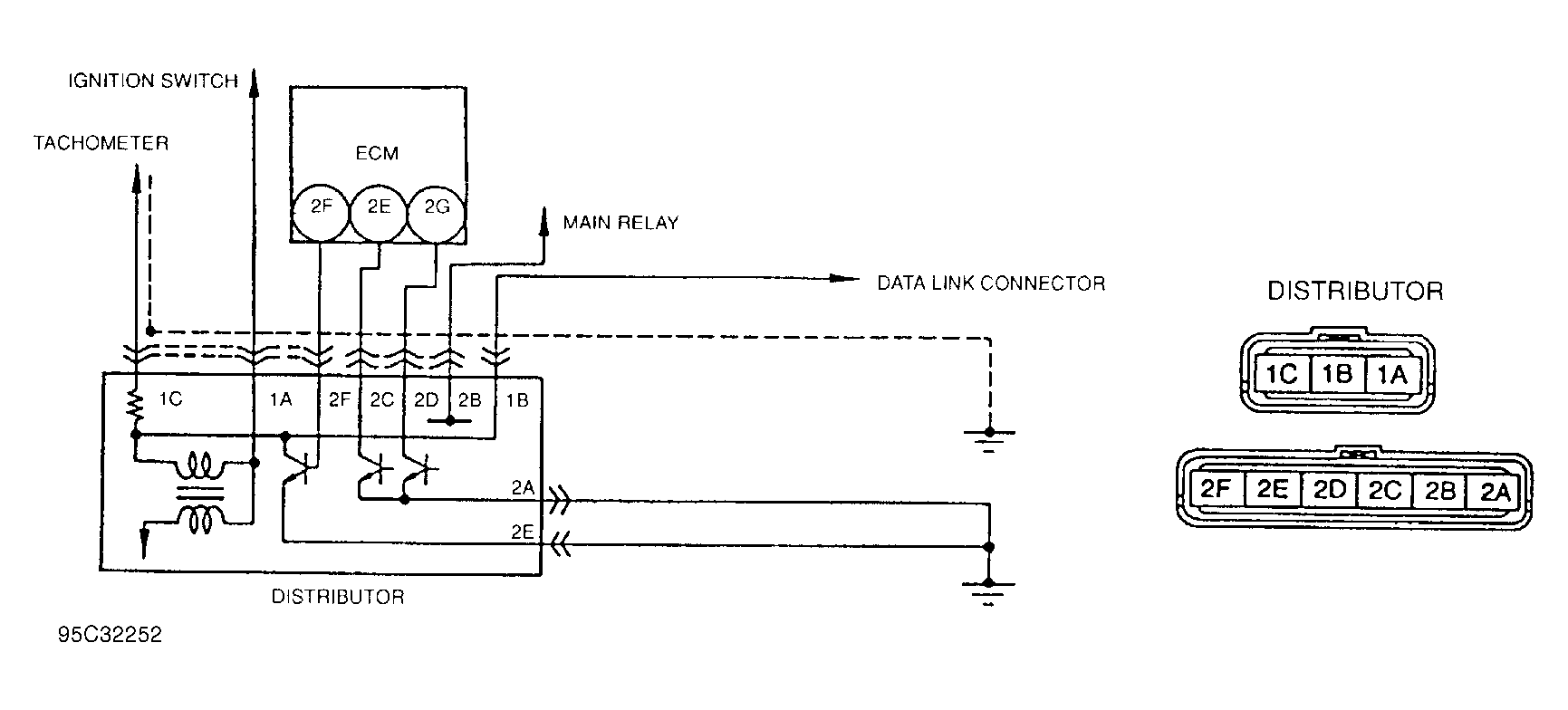

Fig 2: Trouble Code No. 2 Distributor Circuit Diagram

G95C32252
