Code 8: Mass Air Flow Sensor

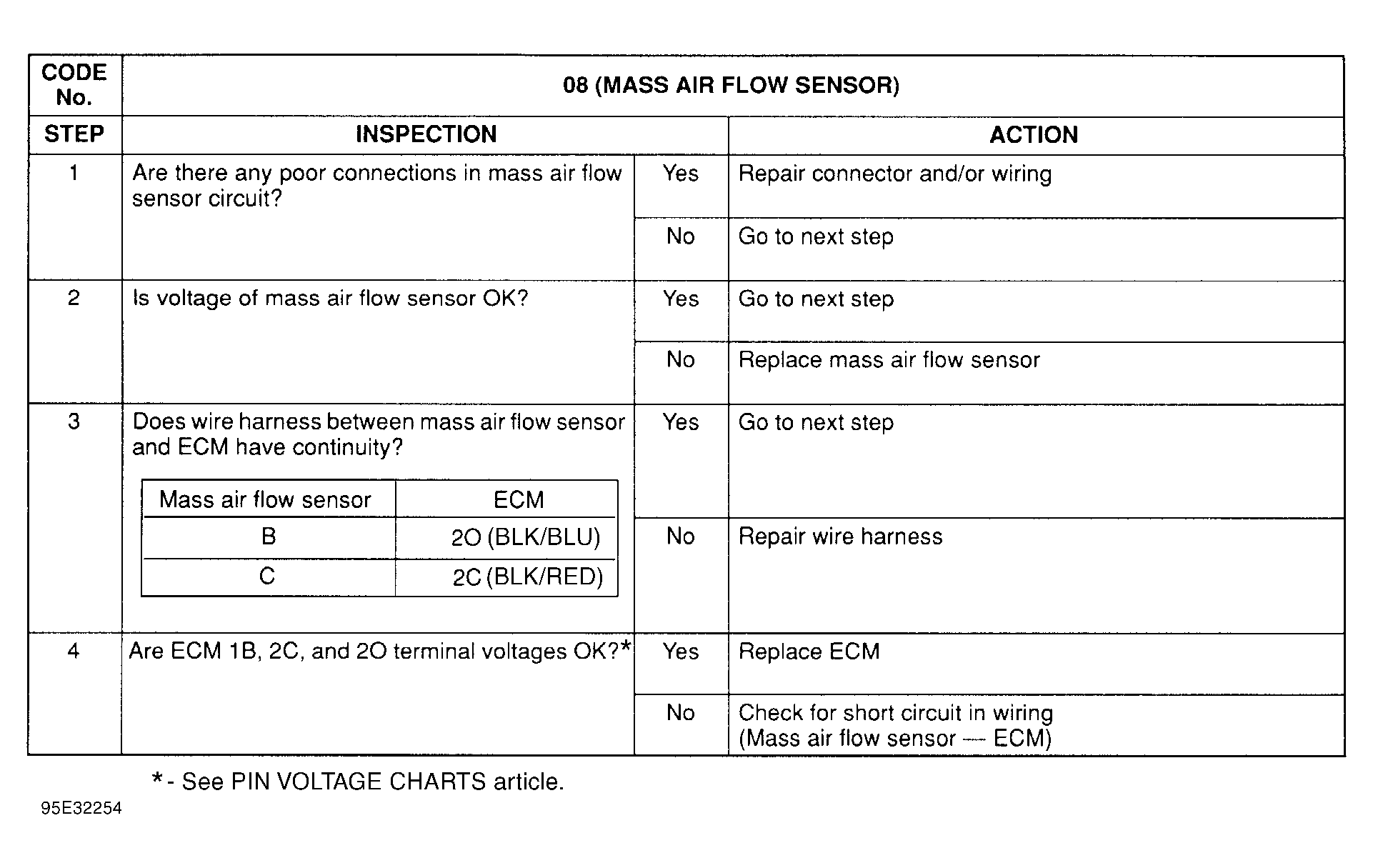

Fig 1: Trouble Code No. 8 Mass Air Flow Sensor

G95E32254

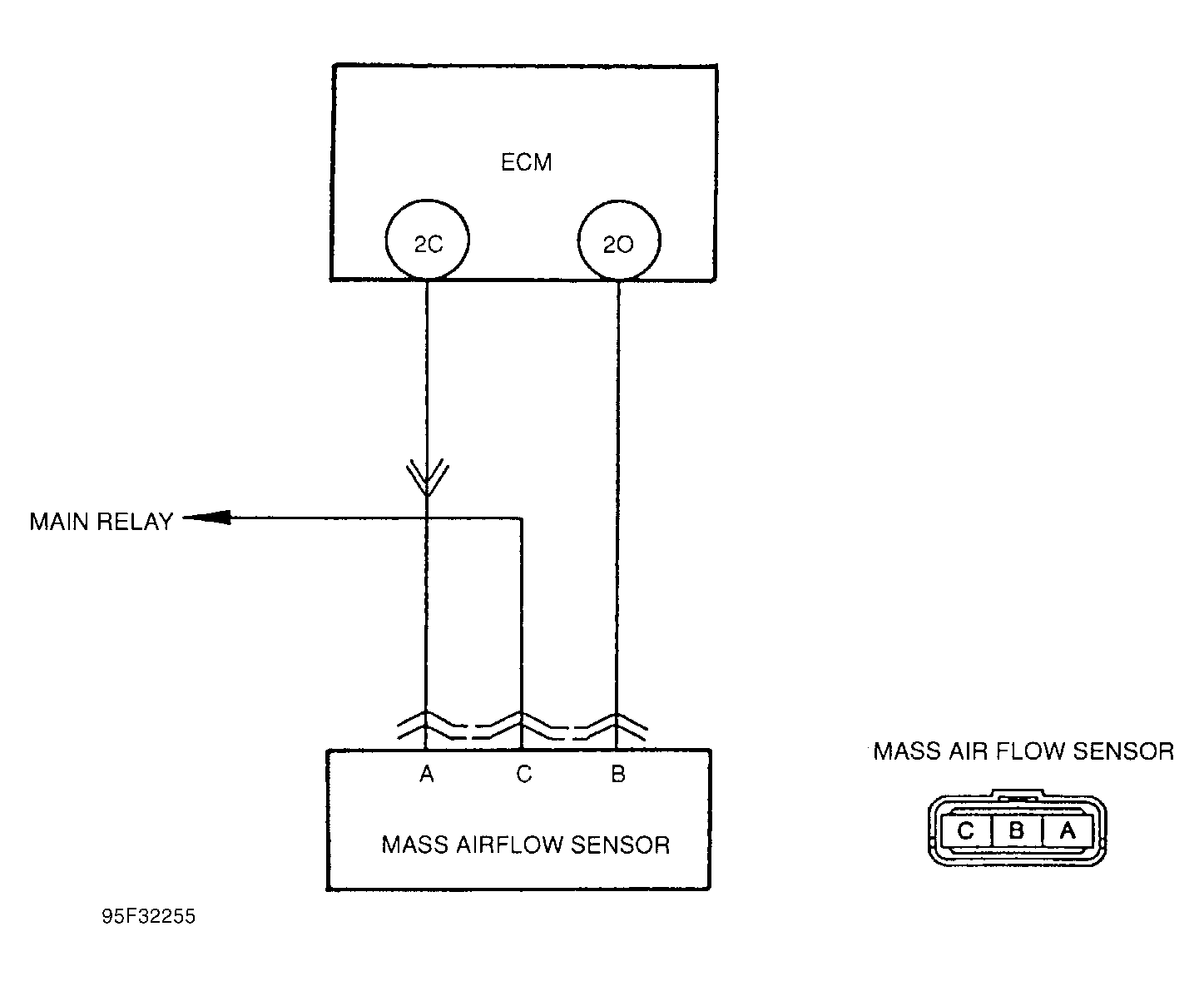

Fig 2: Trouble Code No. 8 Mass Air Flow Sensor Circuit Diagram

G95F32255
