Code 26: Purge Solenoid Valve

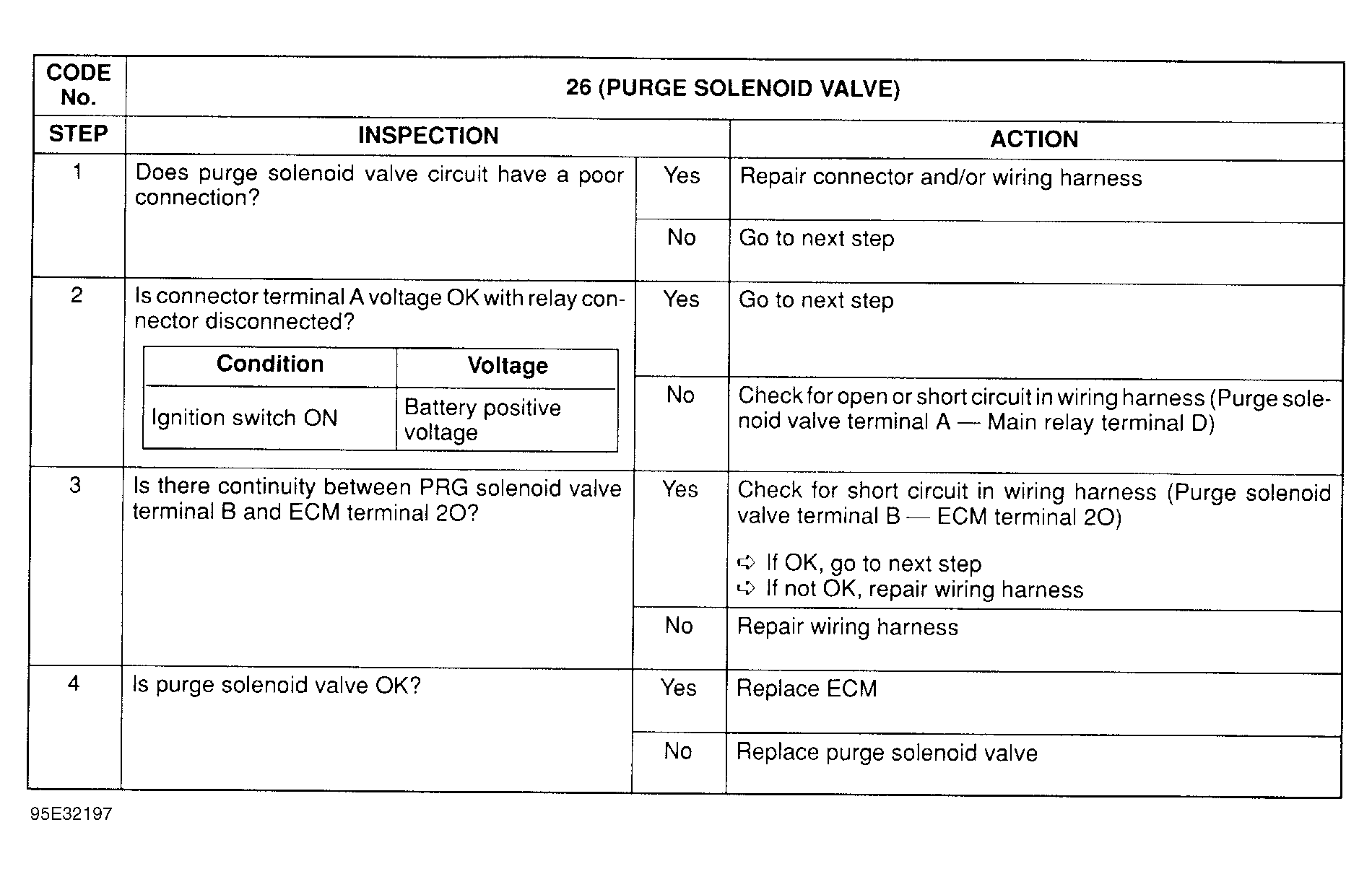

Fig 1: Trouble Code No. 26 Purge Solenoid Valve

G95E32197

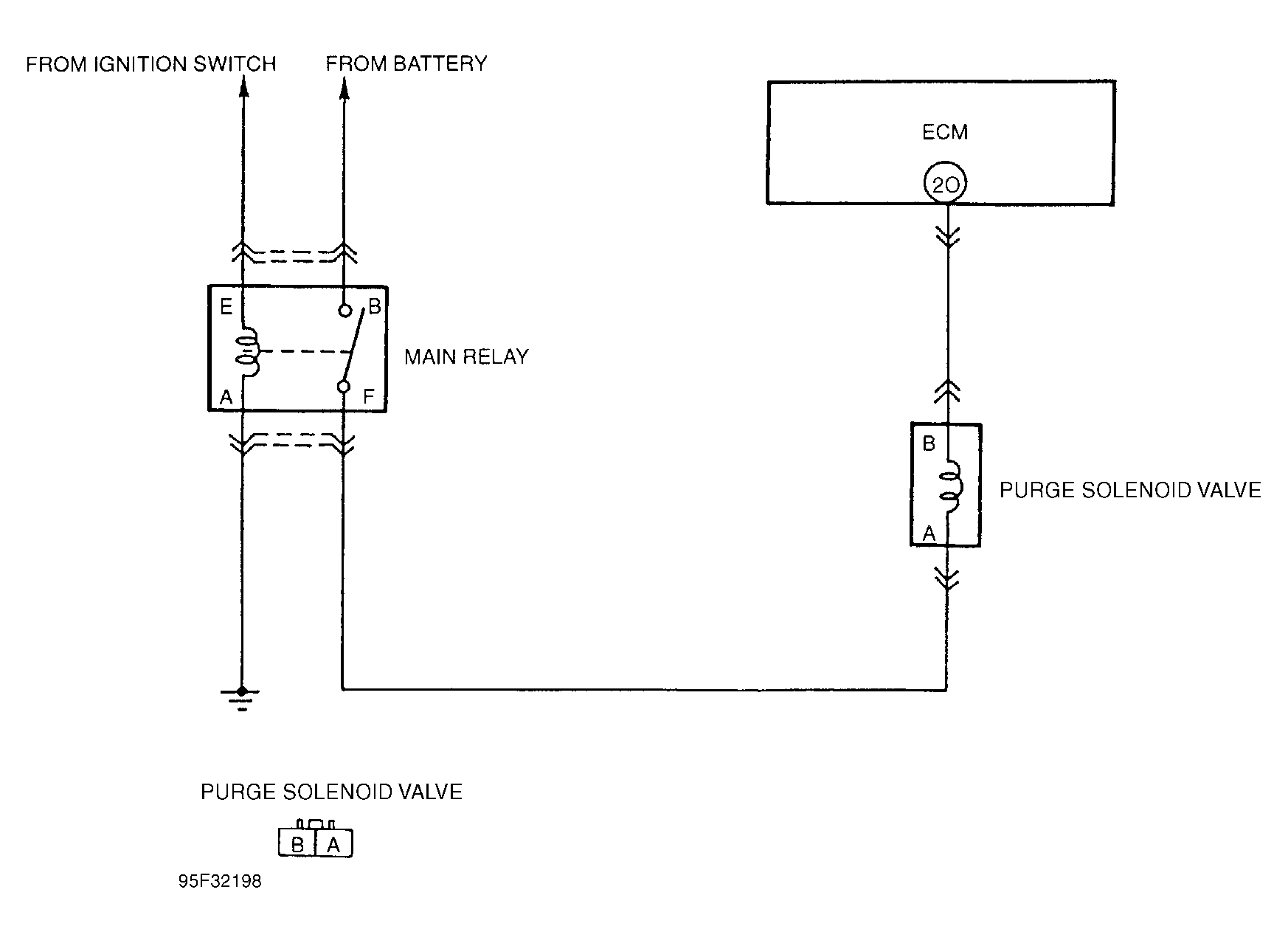

Fig 2: Trouble Code No. 26 Purge Solenoid Valve Circuit Diagram

G95F32198
