Engine Controls - Tests W/Codes - 2.5L
›
Trouble Code Charts
›
Code P0505: Idle Control System Malfunction
Code P0505: Idle Control System Malfunction

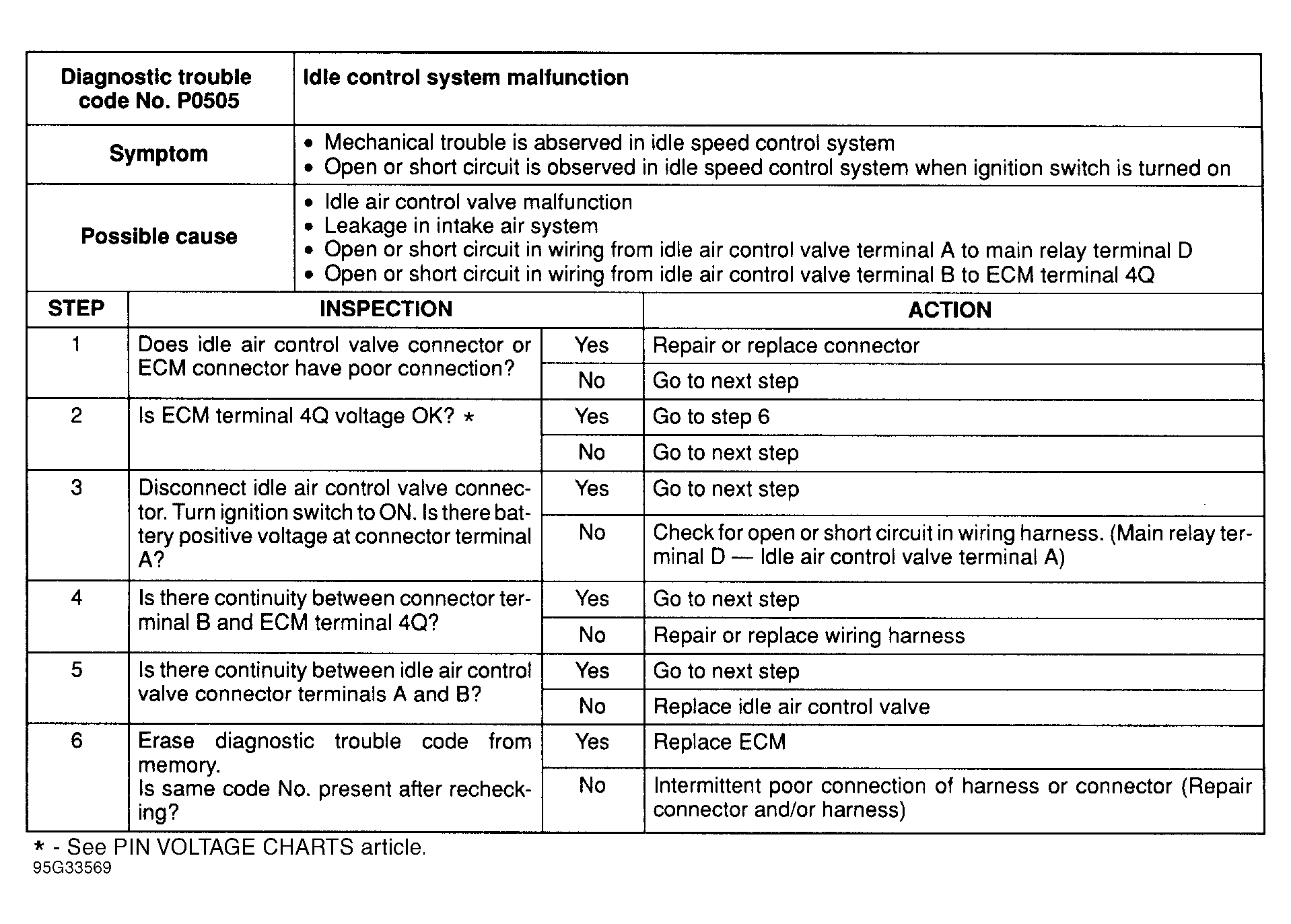

Fig 1: Trouble Code No. P0505 Idle Control System Malfunction
