Engine Controls - Tests W/Codes - 1.8L
›
Trouble Code Charts
›
Code P0135: Oxygen Sensor Heater Circuit Malfunction
Code P0135: Oxygen Sensor Heater Circuit Malfunction

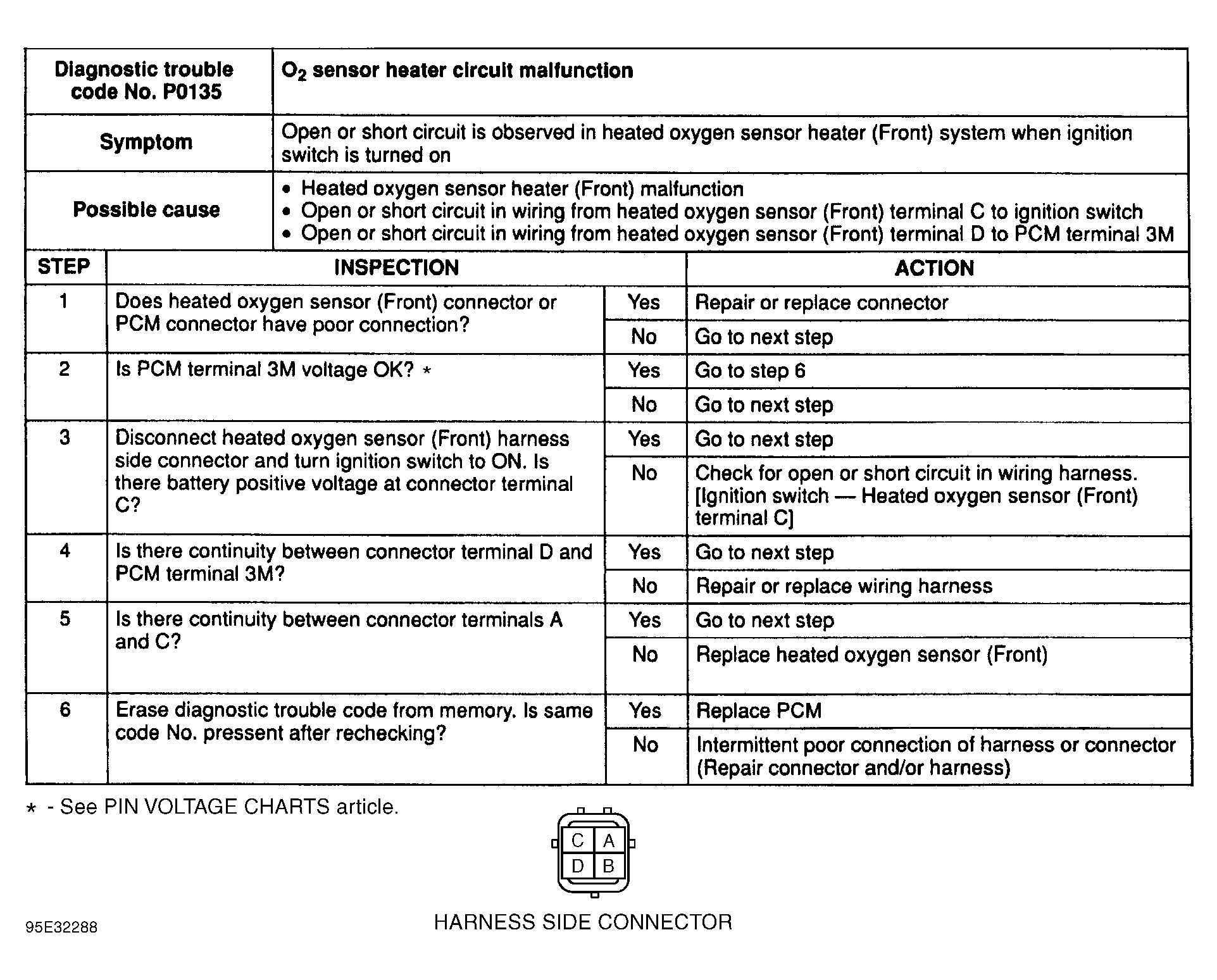

Fig 1: Trouble Code No. P0135 Oxygen Sensor Heater Circuit Malfunction
