Engine Controls - Tests W/Codes - 1.8L
›
Trouble Code Charts
›
Code P0340: Camshaft Position Sensor Circuit Malfunction
Code P0340: Camshaft Position Sensor Circuit Malfunction

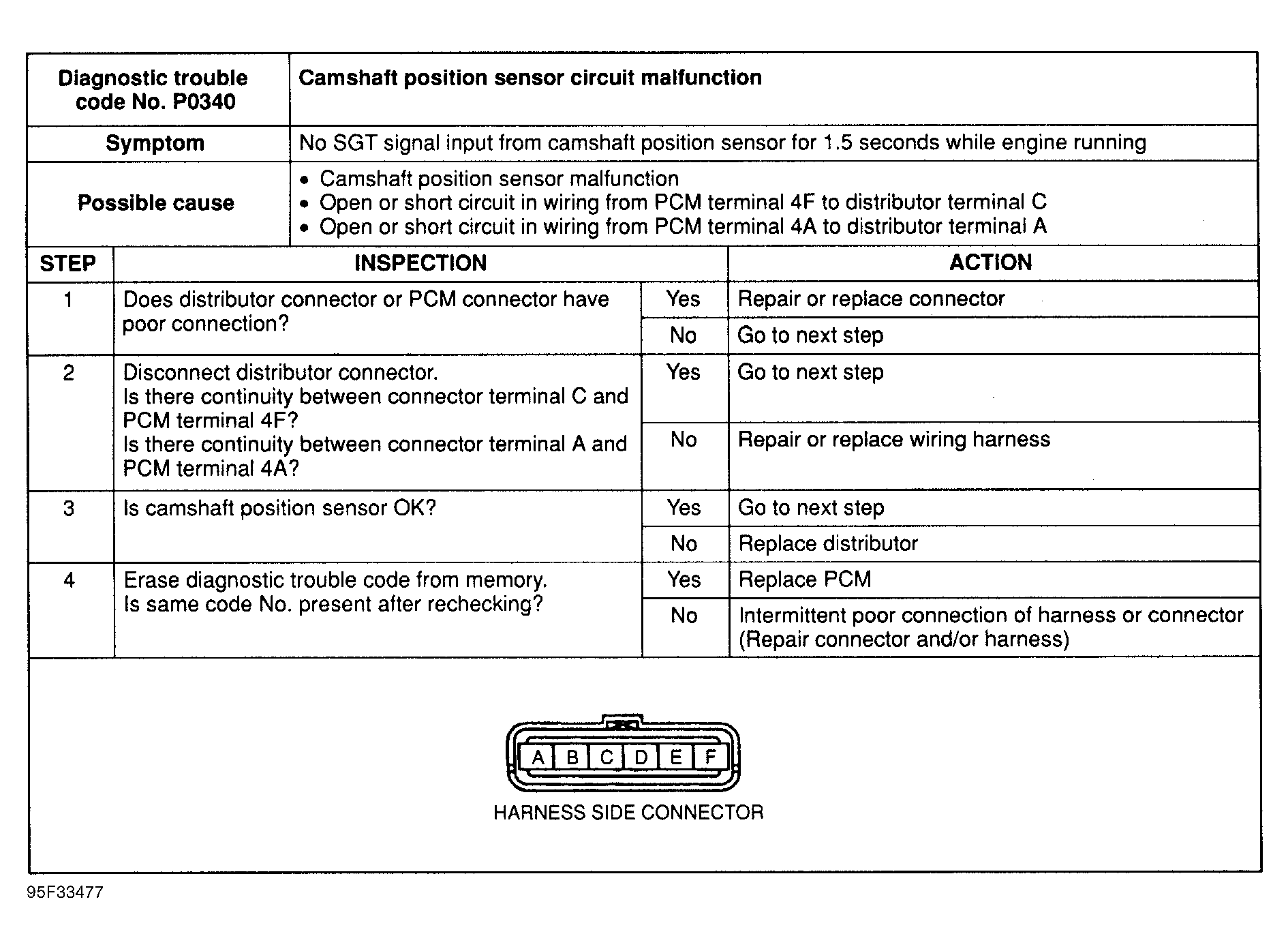

Fig 1: Trouble Code No. P0340 Camshaft Position Sensor Circuit Malfunction
