Engine Controls - Tests W/Codes - 1.8L
›
Trouble Code Charts
›
Code P1523: VICS Solenoid Valve
Code P1523: VICS Solenoid Valve

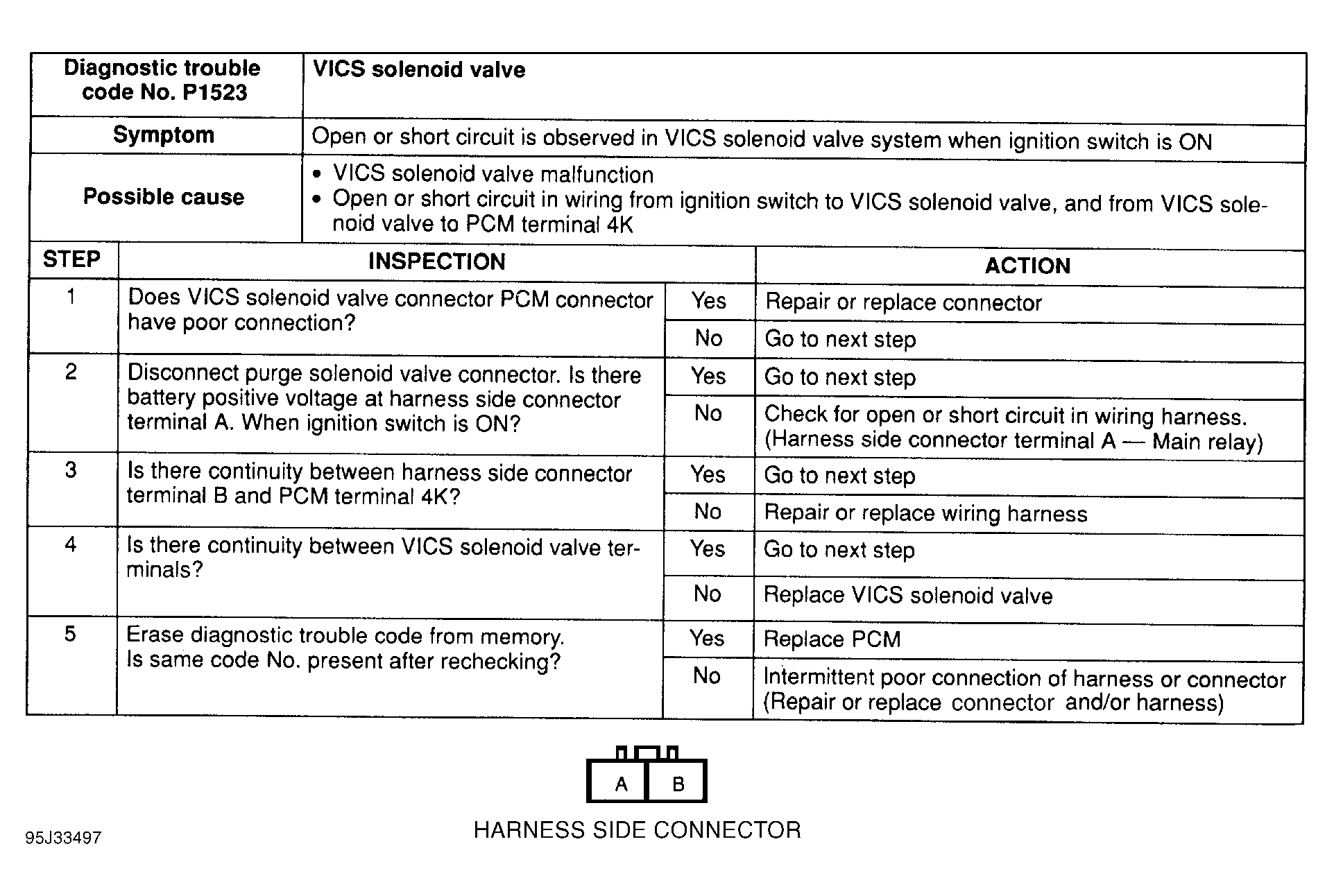

Fig 1: Trouble Code No. P1523 VICS Solenoid Valve
