Fuel System: Turbocharger: Removal

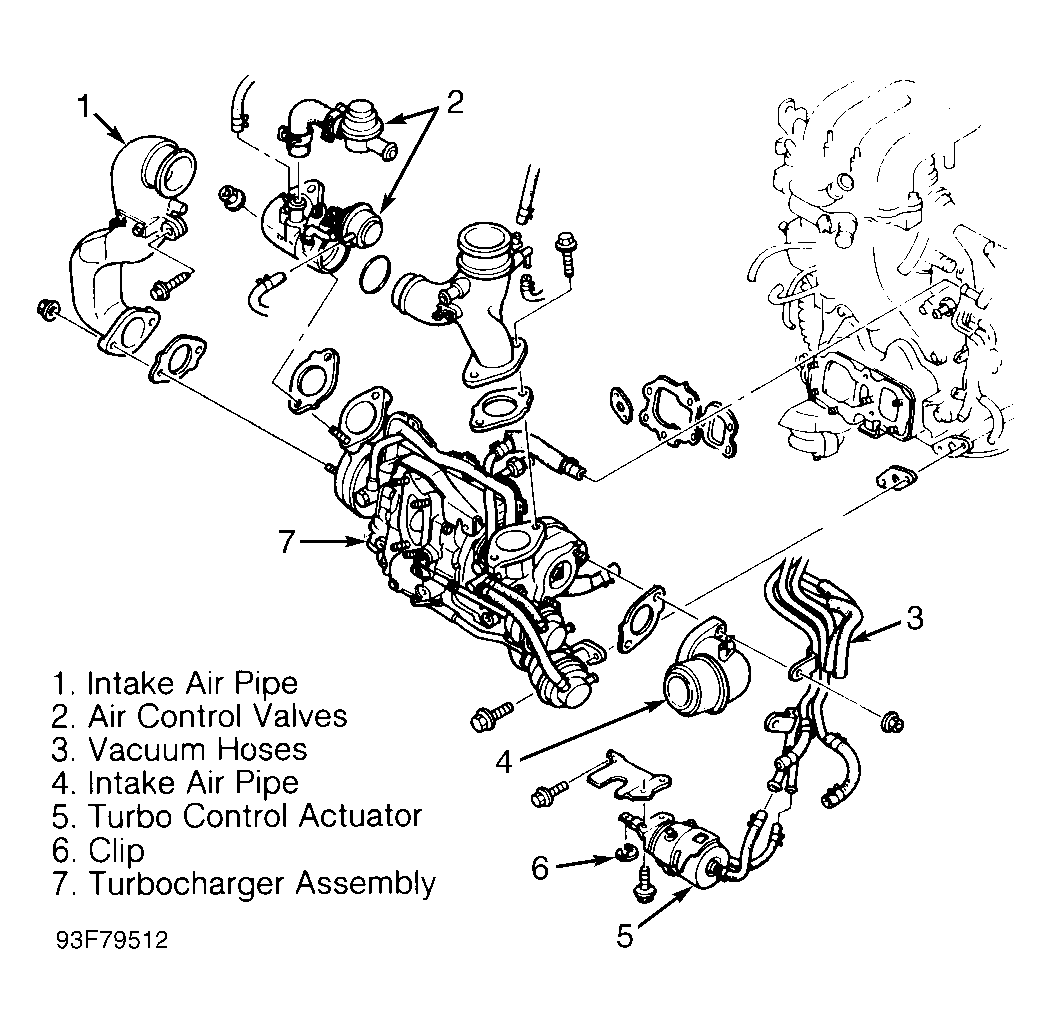

- Raise and support vehicle. Drain coolant. Disconnect negative battery cable. Remove air cleaner, intake air hoses and pressure chamber. See Figure . Remove air control valve assembly. Disconnect vacuum hoses.
- Remove drive belt and air injection pump. Disconnect oxygen sensor, exhaust down pipe and catalytic converter. Disconnect turbo control valve rod and actuator. See Figure . Disconnect oil pipes from turbocharger. Remove coolant hoses.
- Remove bolts securing turbocharger to exhaust manifold. Remove turbocharger assembly.
