CODE 50: DOUBLE THROTTLE CONTROL SOLENOID VALVe
CODE 50: DOUBLE THROTTLE CONTROL SOLENOID VALVe

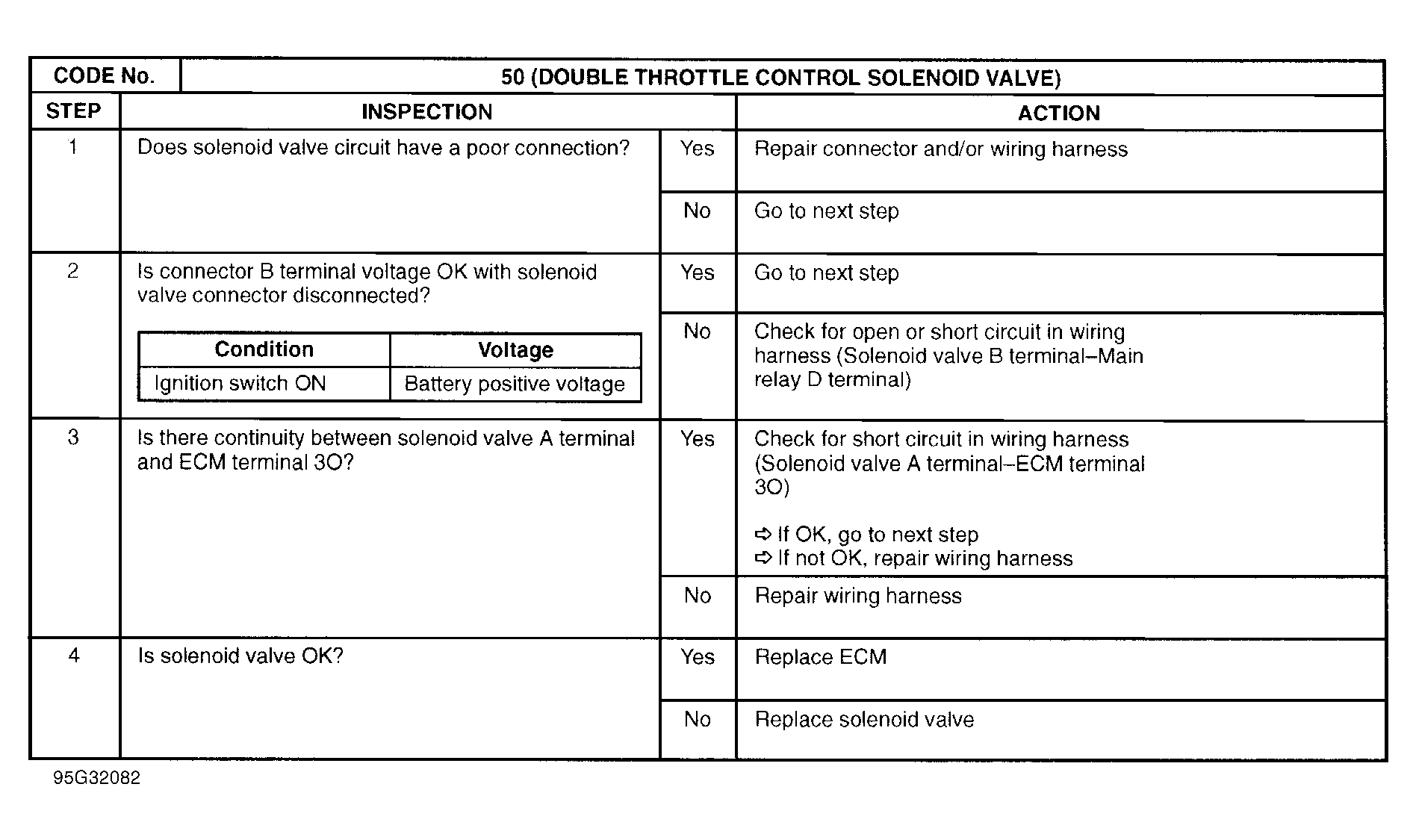

Fig 1: Trouble Code No. 50 Double Throttle Control Solenoid Valve

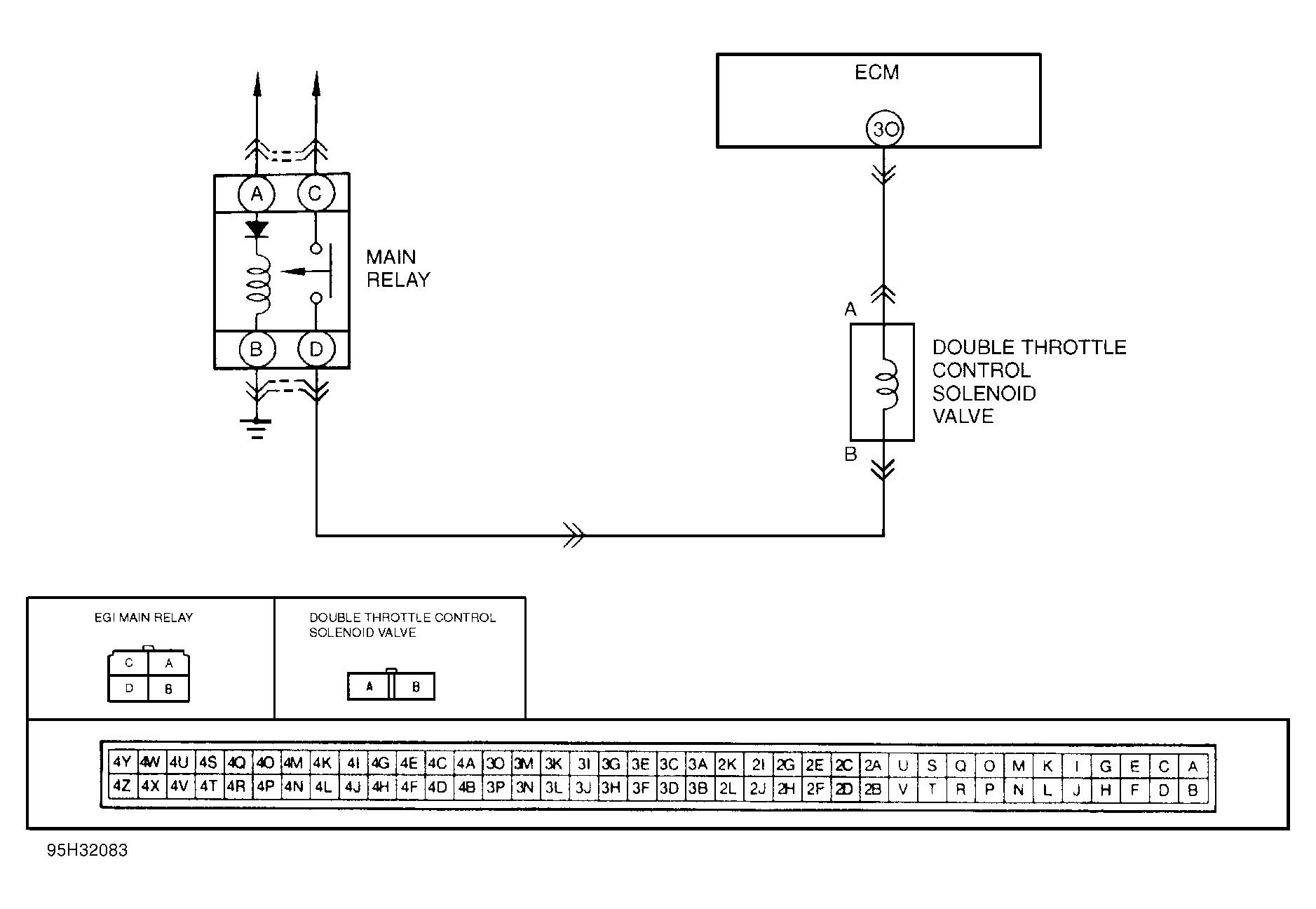

Fig 2: Trouble Code No. 50 Double Throttle Control Solenoid Valve Circuit Diagram
