Code 17: Oxygen Sensor - Inversion

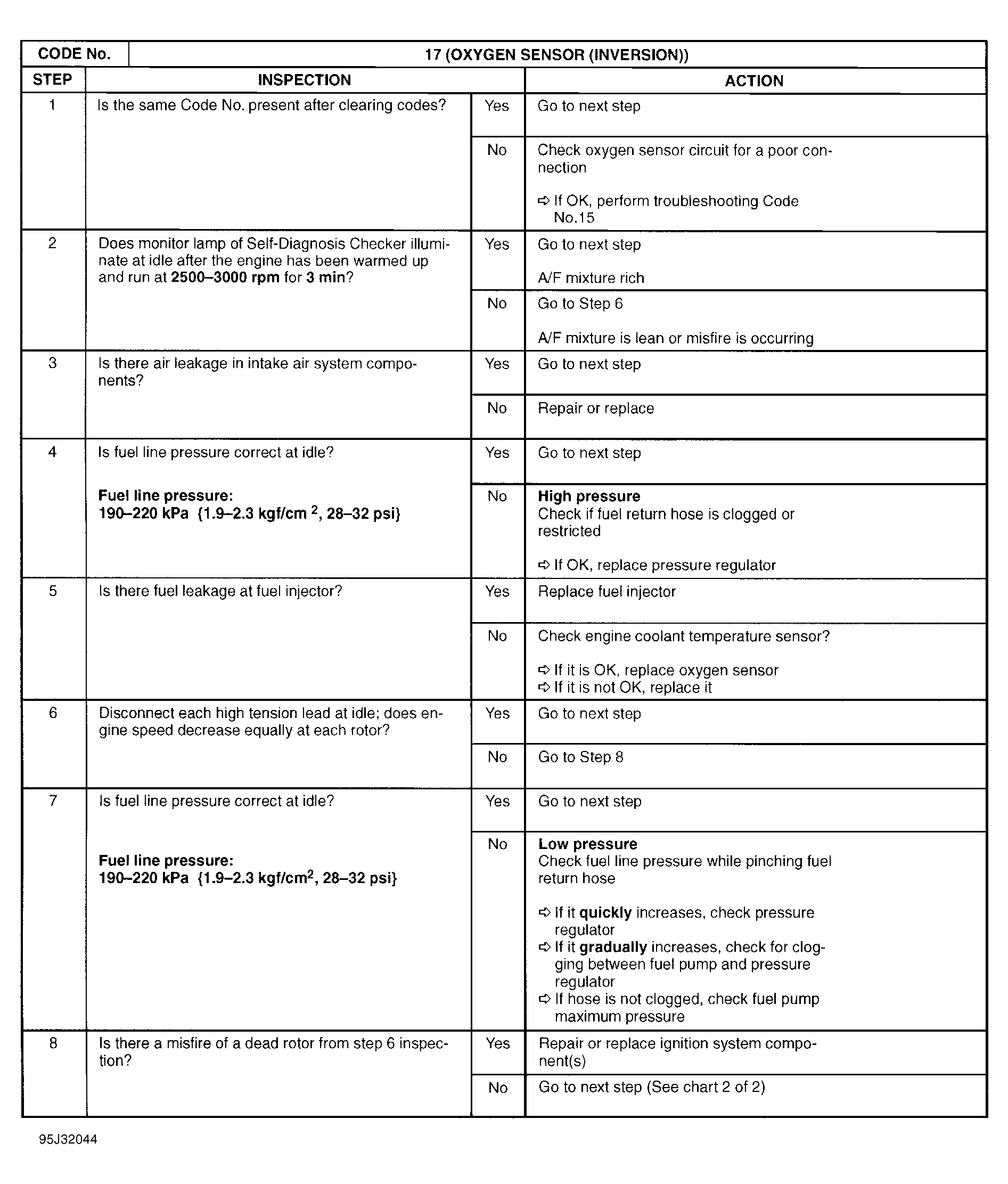

Fig 1: Trouble Code No. 17 Oxygen Sensor - Inversion (1 O 2)

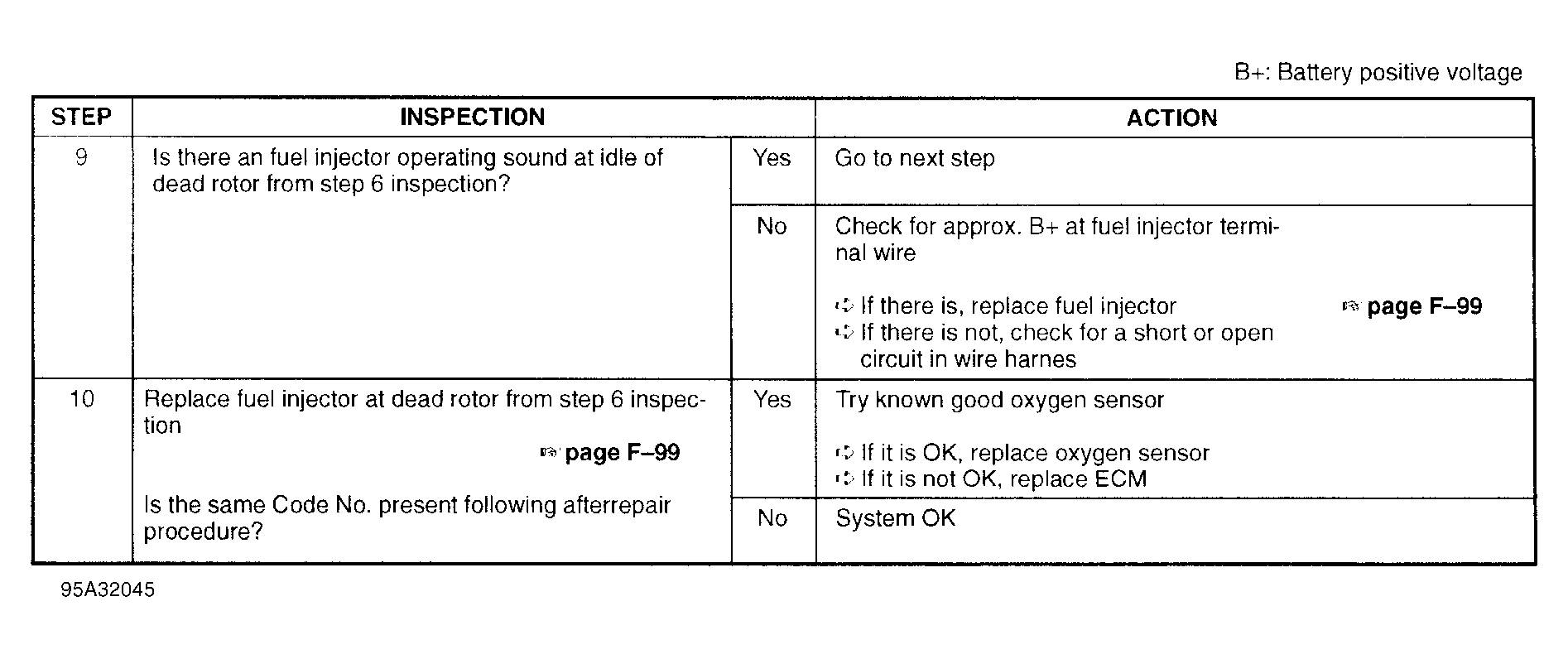

Fig 2: Trouble Code No. 17 Oxygen Sensor - Inversion (2 Of 2)

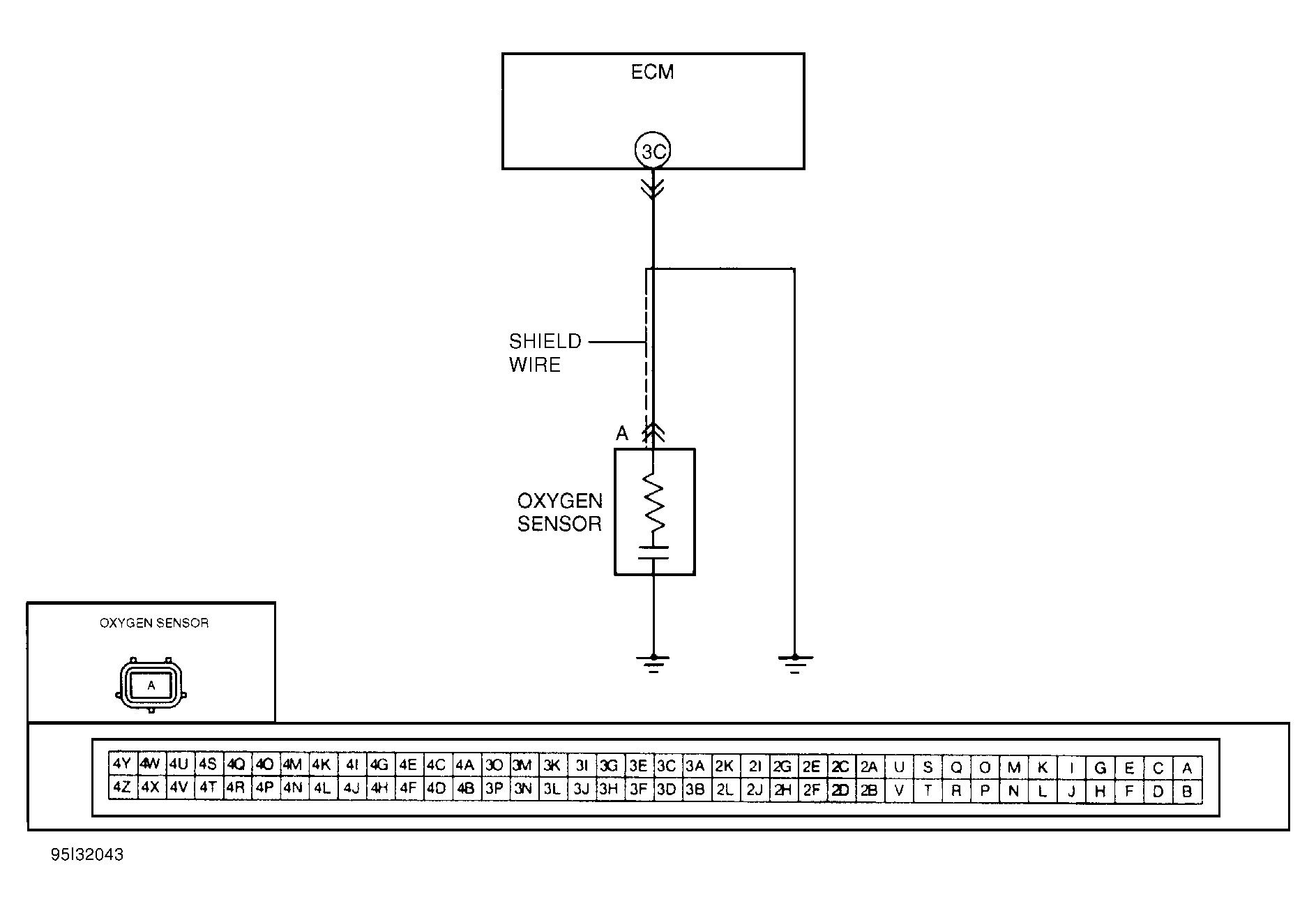

Fig 3: Trouble Code No. 17 Oxygen Sensor Circuit Diagram
