Code 2: Crankshaft Position Sensor - Ne Sensor

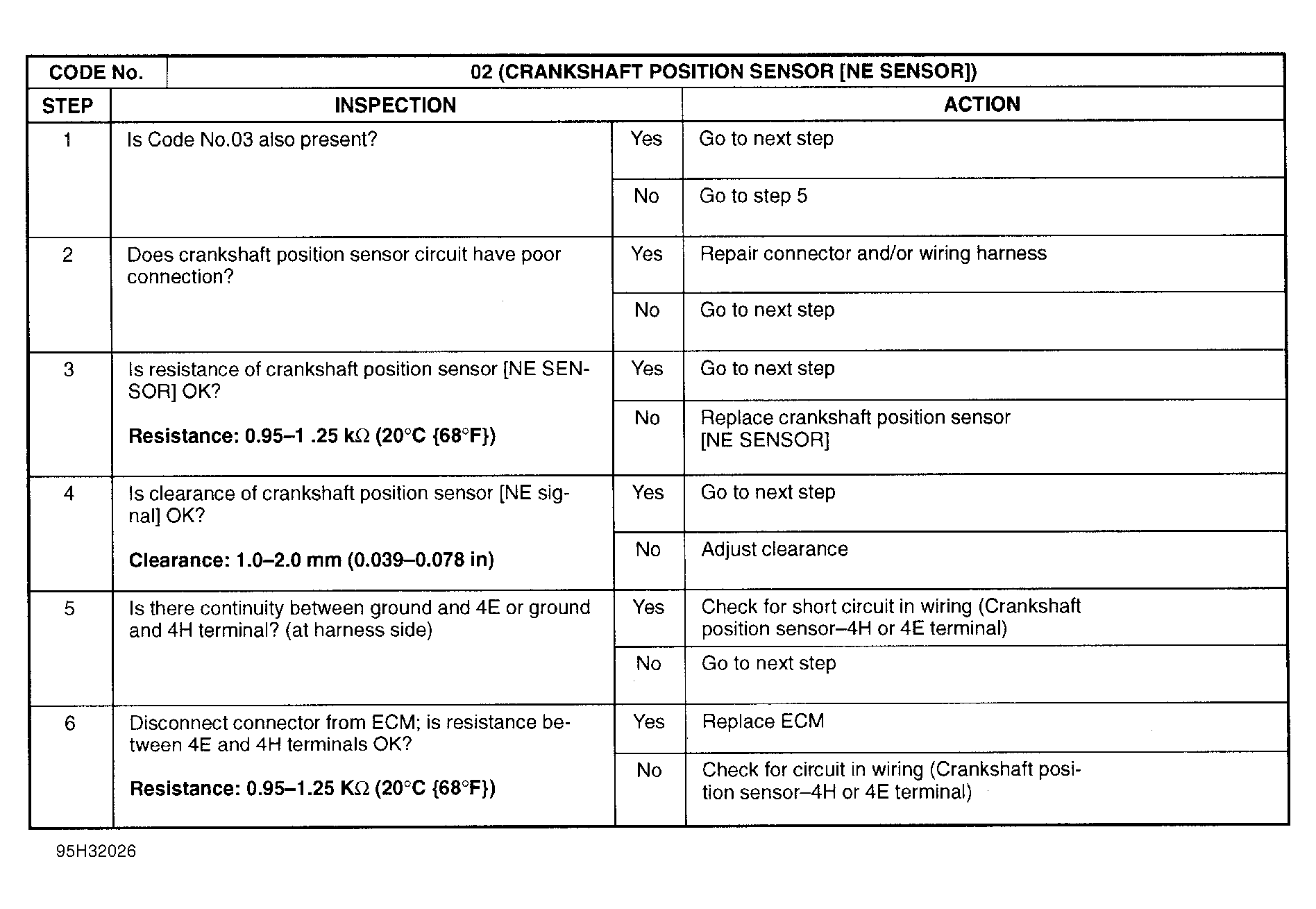

Fig 1: Trouble Code No. 2 Crankshaft Position Sensor - NE Sensor

G95H32026

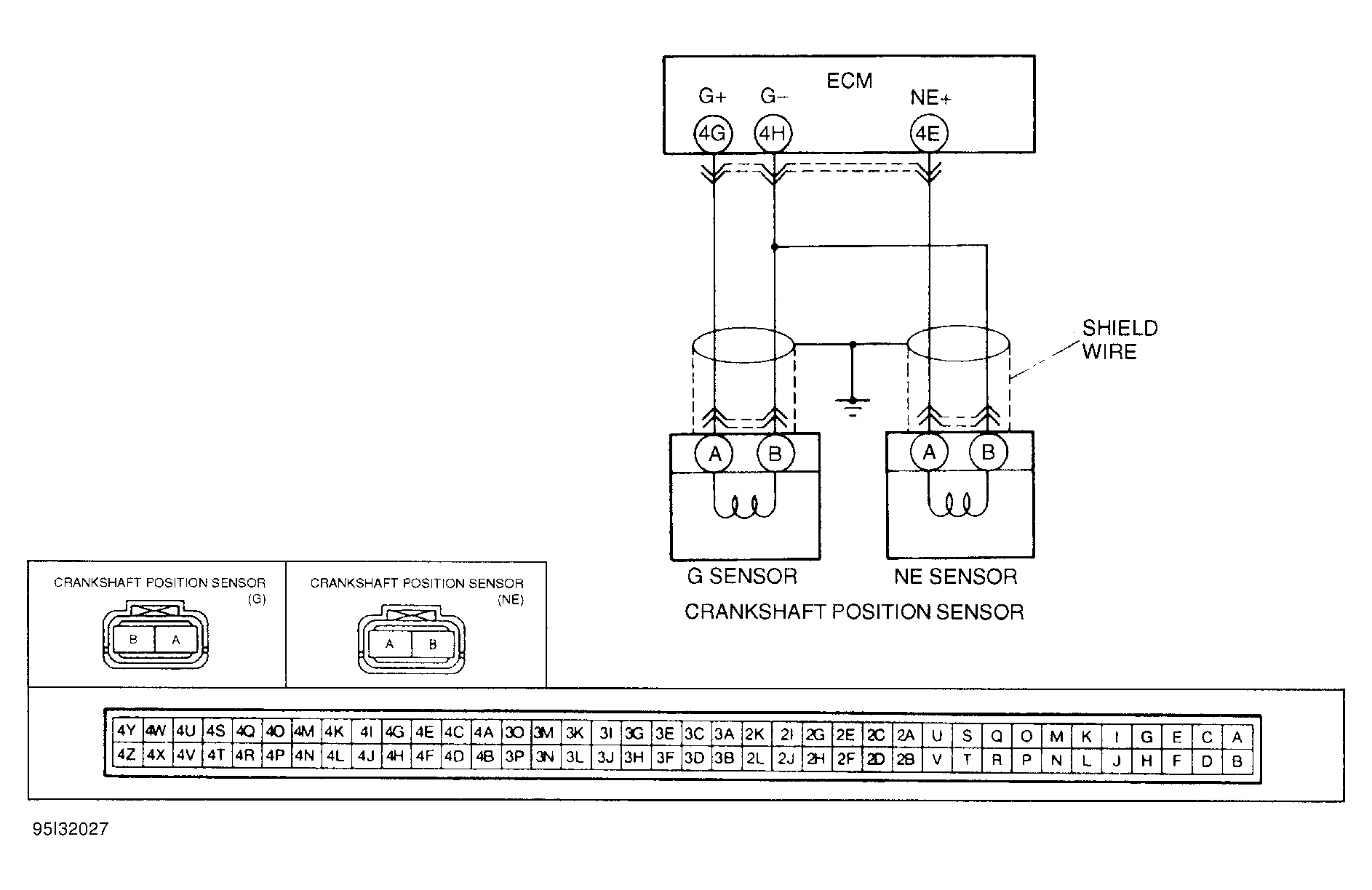

Fig 2: Trouble Code No. 2 Crankshaft Position Sensor Circuit Diagram

G95I32027
