Code 25: PRC Solenoid Valve

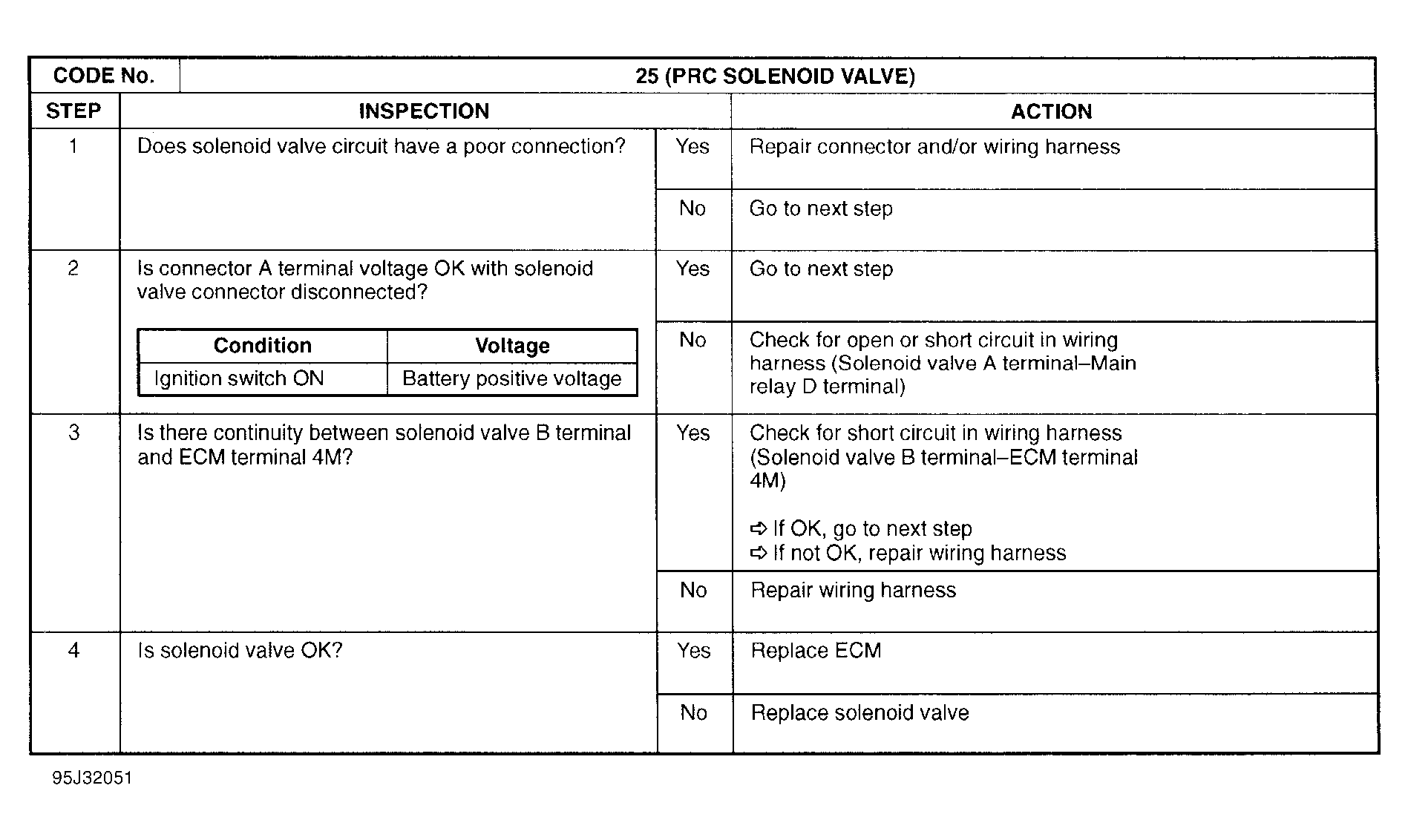

Fig 1: Trouble Code No. 25 PRC Solenoid Valve

G95J32051

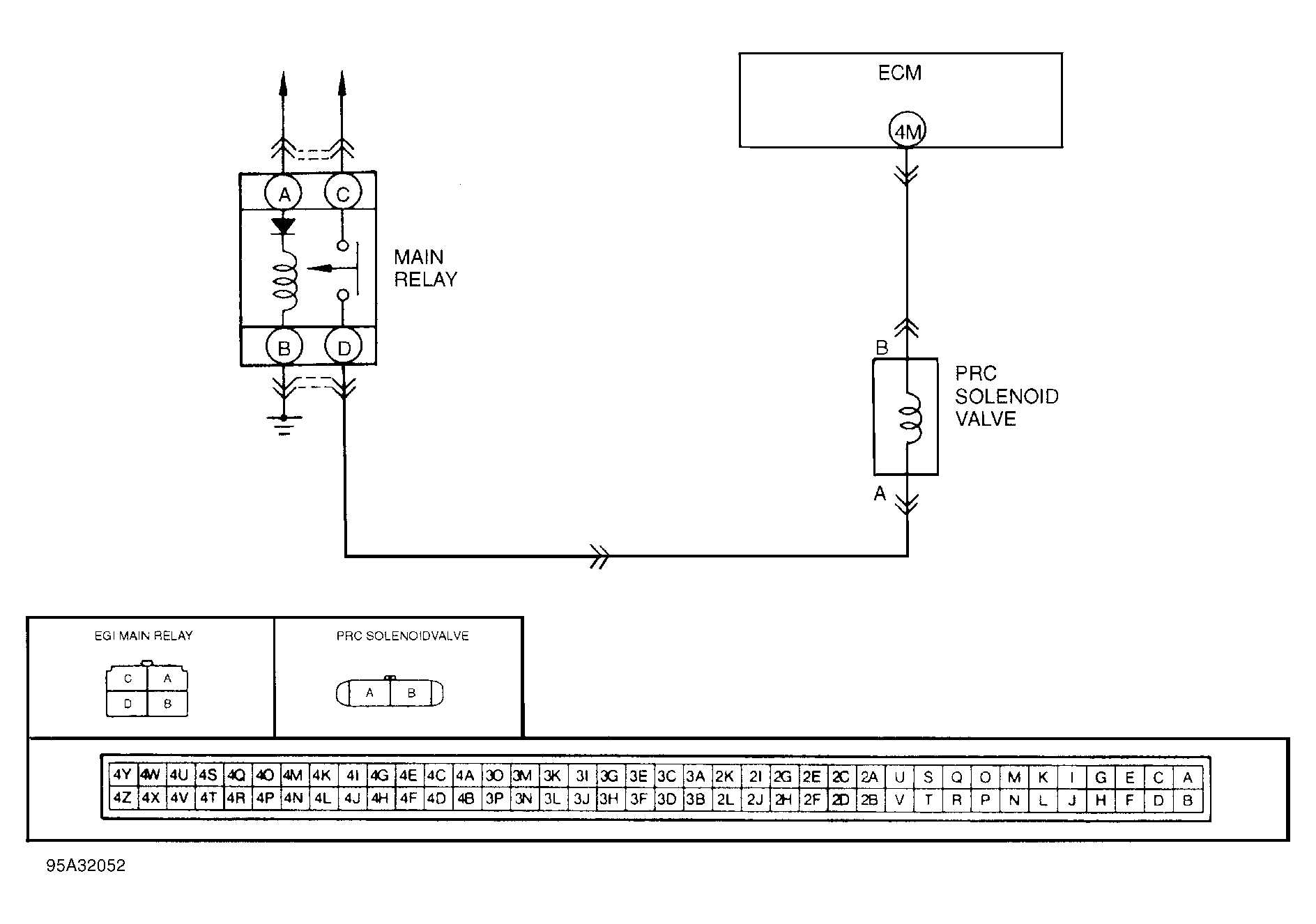

Fig 2: Trouble Code No. 25 PRC Solenoid Valve Circuit Diagram

G95A32052
