Code 26: Metering Oil Pump Stepping Motor

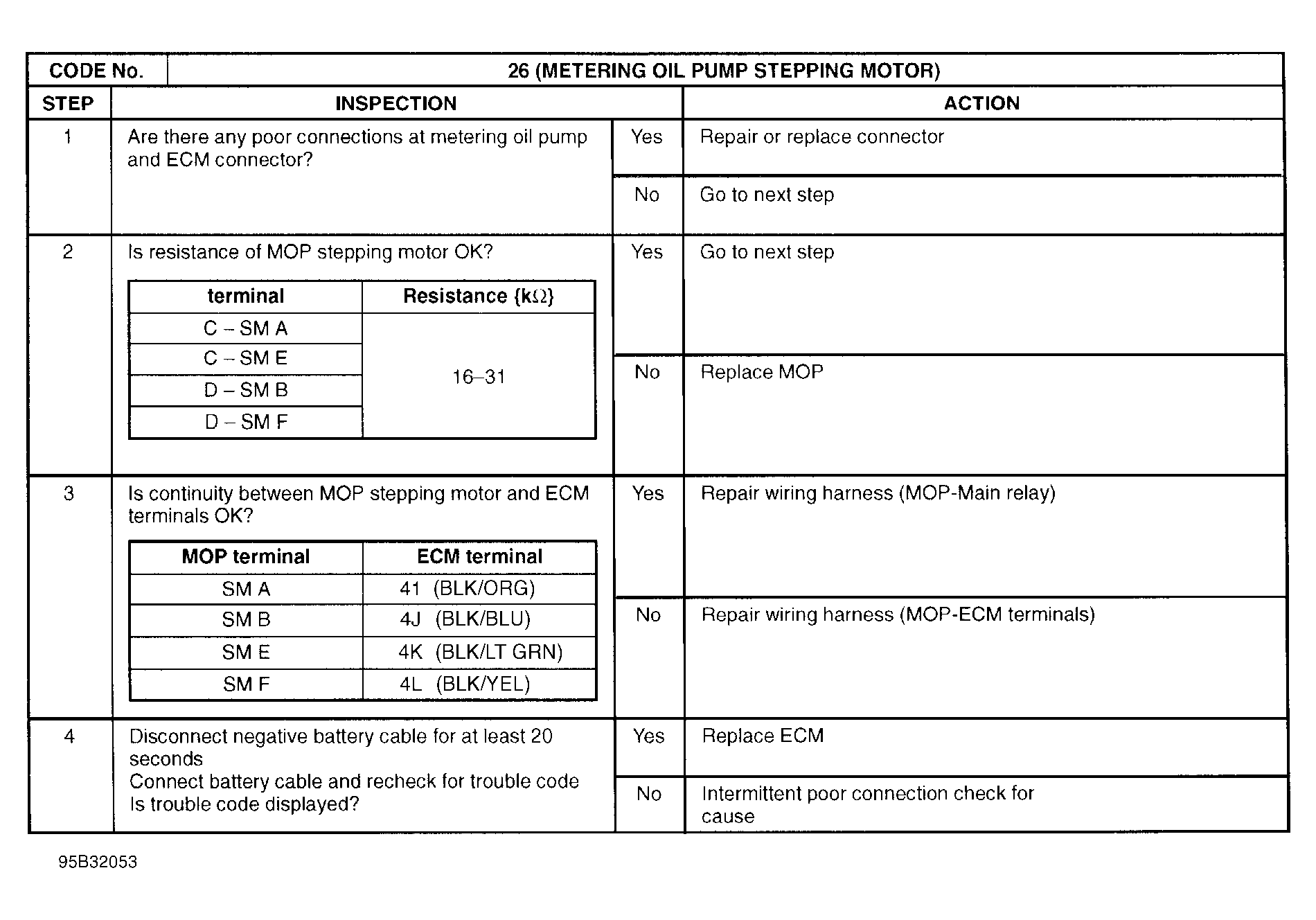

Fig 1: Trouble Code No. 26 Metering Oil Pump Stepping Motor

G95B32053

Fig 2: Trouble Code No. 26 Metering Oil Pump Circuit Diagram

G95D32048
