Code 3: Crankshaft Position Sensor - G Sensor

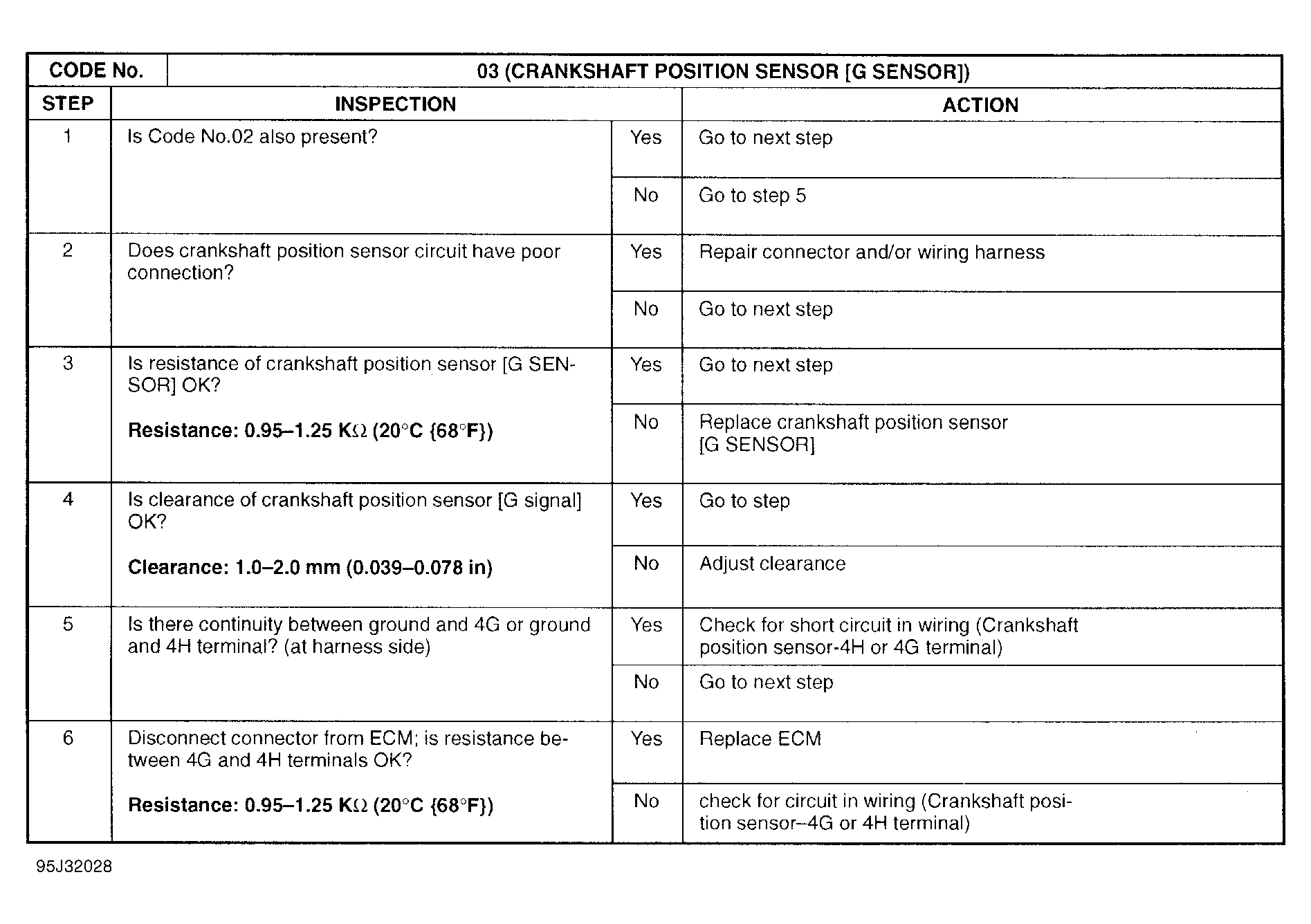

Fig 1: Trouble Code No. 3 Crankshaft Position Sensor - G Sensor

G95I32027

Fig 2: Trouble Code No. 3 Crankshaft Position Sensor Circuit Diagram

G95J32028
