Code 30: Split Air By-Pass Solenoid Valve

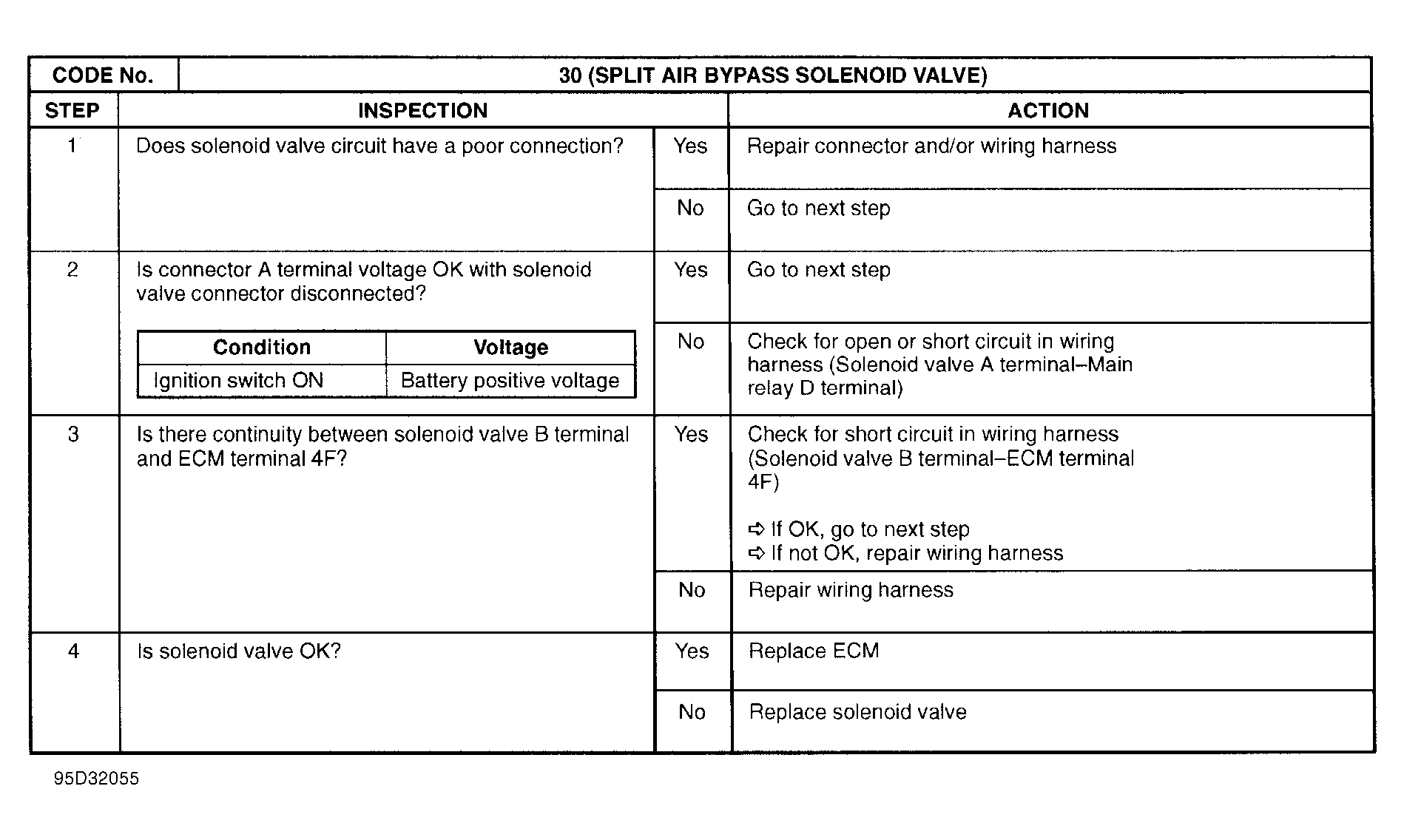

Fig 1: Trouble Code No. 30 Split Air By-Pass Solenoid Valve

G95D32055

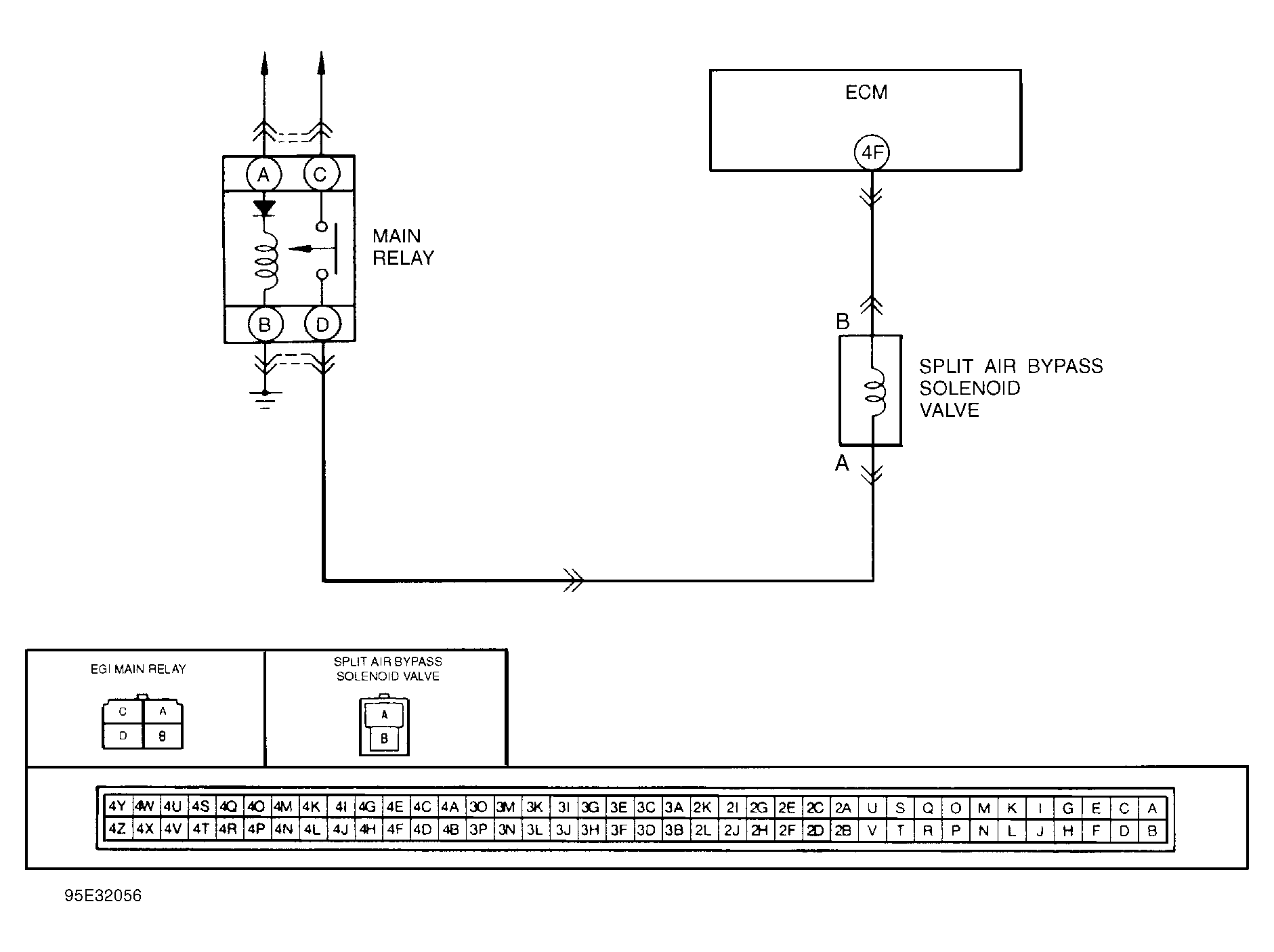

Fig 2: Trouble Code No. 30 Split Air By-Pass Solenoid Valve Circuit Diagram

G95E32056
