Code 31: Secondary Air By-Pass Valve

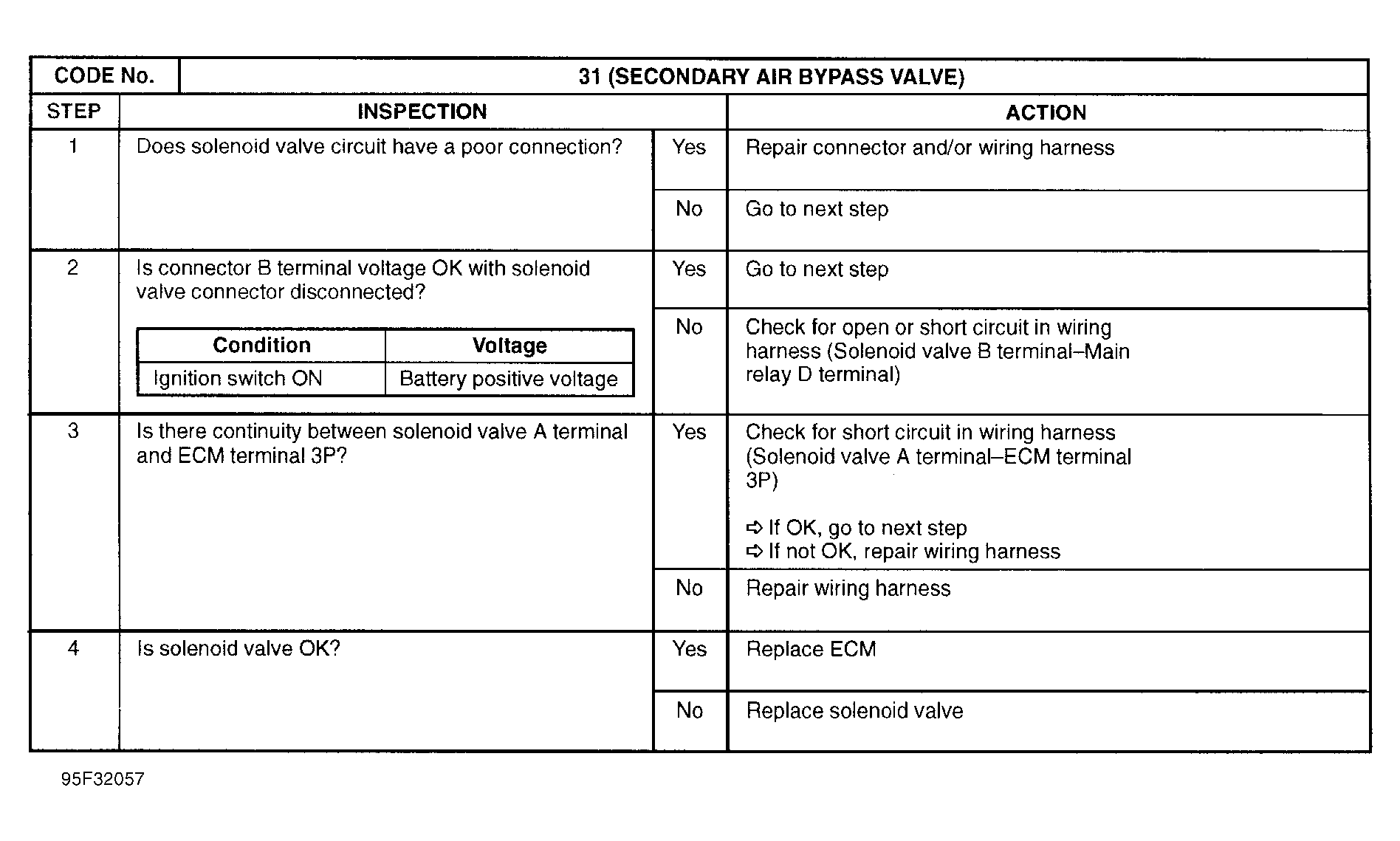

Fig 1: Trouble Code No. 31 Secondary Air By-Pass Valve

G95F32057

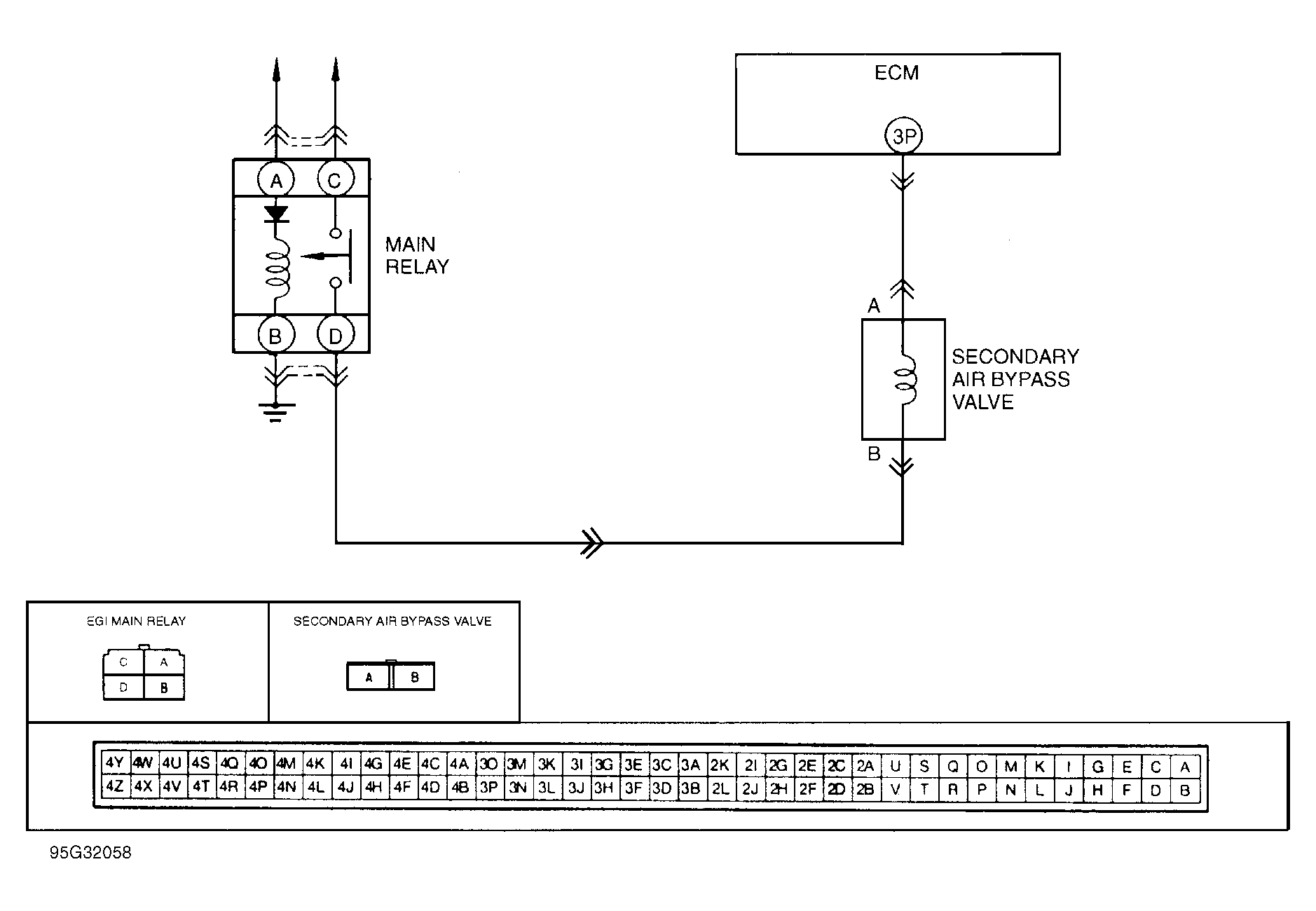

Fig 2: Trouble Code No. 31 Secondary Air By-Pass Valve Circuit Diagram

G95G32058
