Code 33: Port Air By-Pass Solenoid Valve

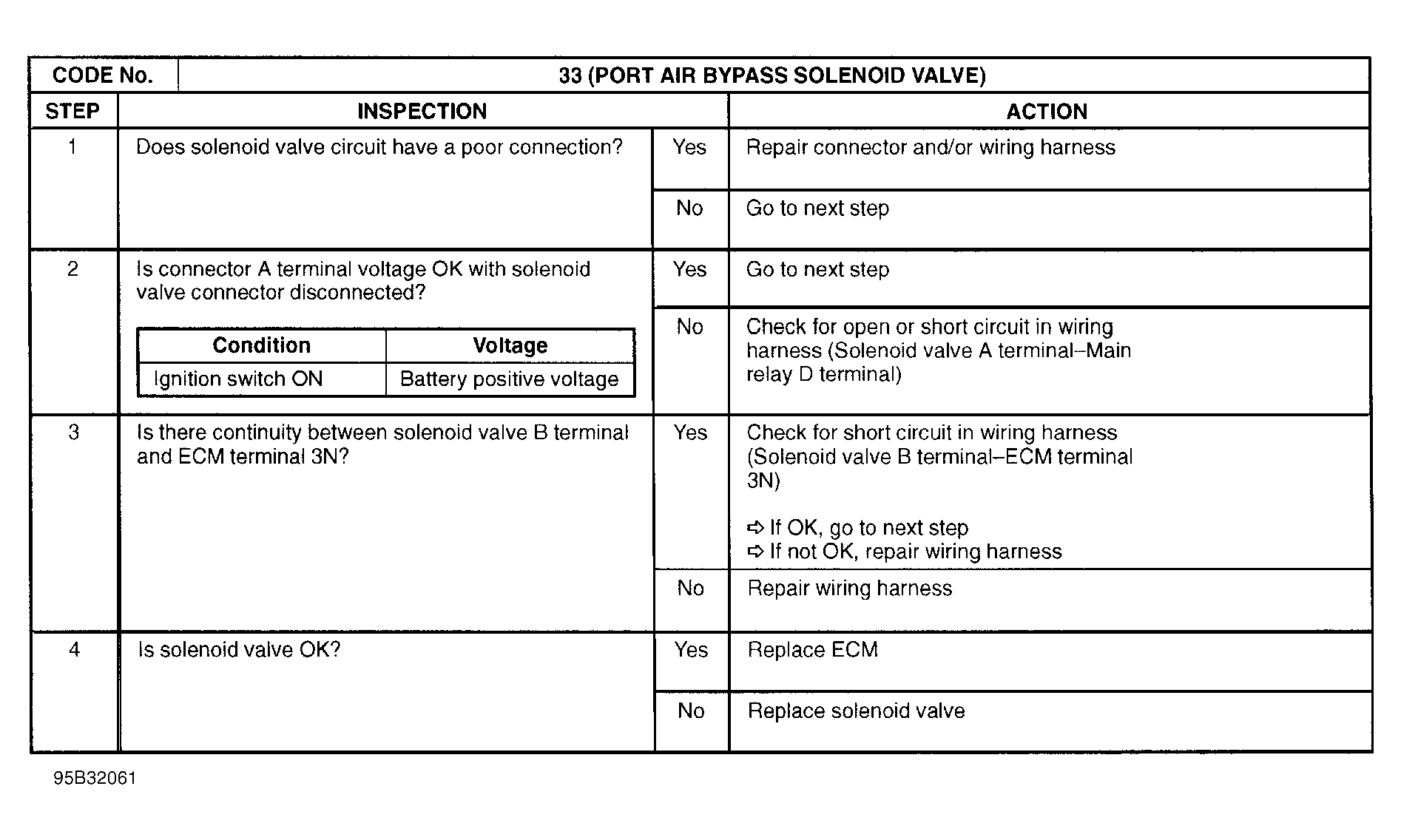

Fig 1: Trouble Code No. 33 Port Air By-Pass Solenoid Valve

G95B32061

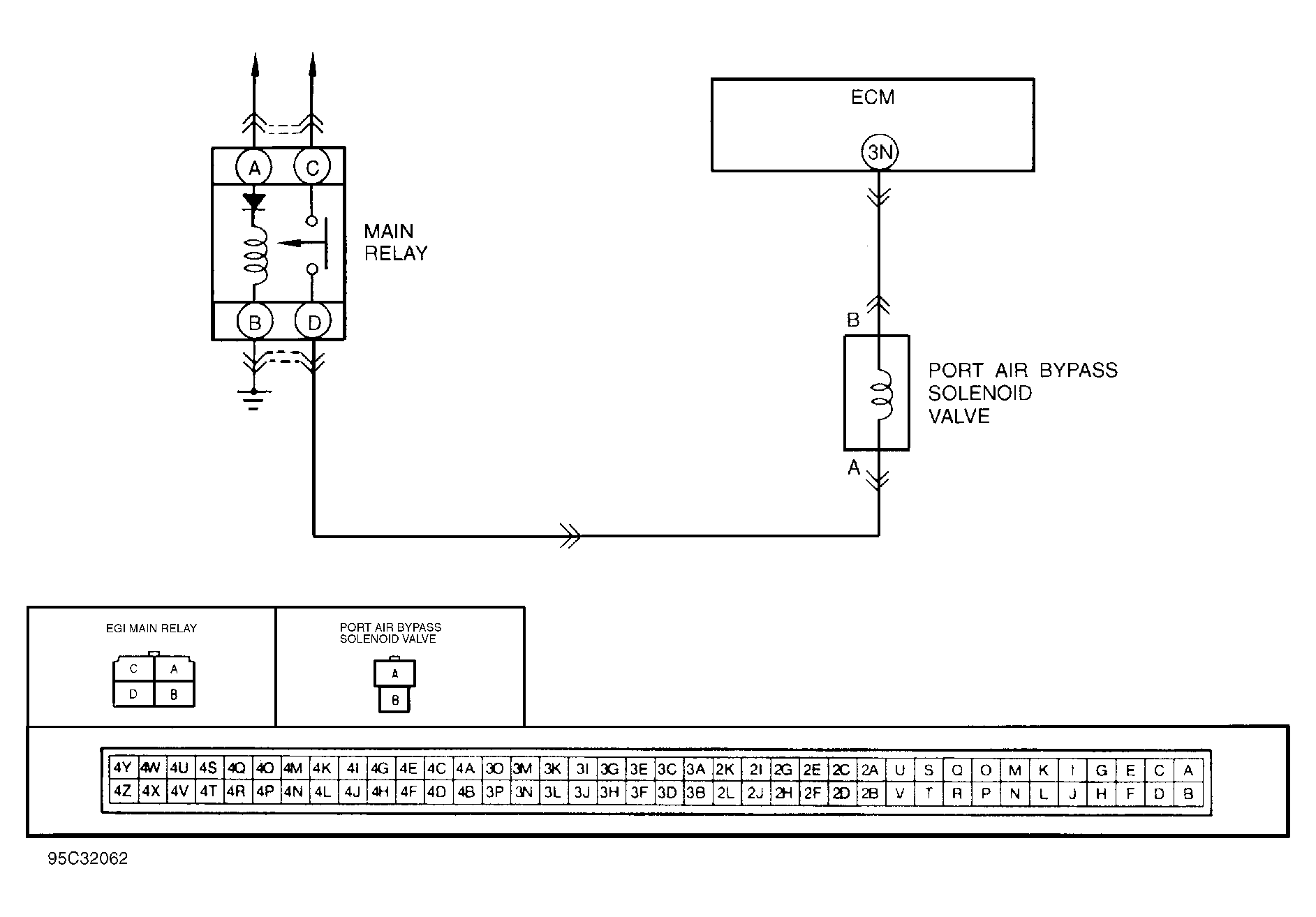

Fig 2: Trouble Code No. 33 Port Air By-Pass Solenoid Valve Circuit Diagram

G95C32062
