Code 34: Idle Air Control Solenoid Valve

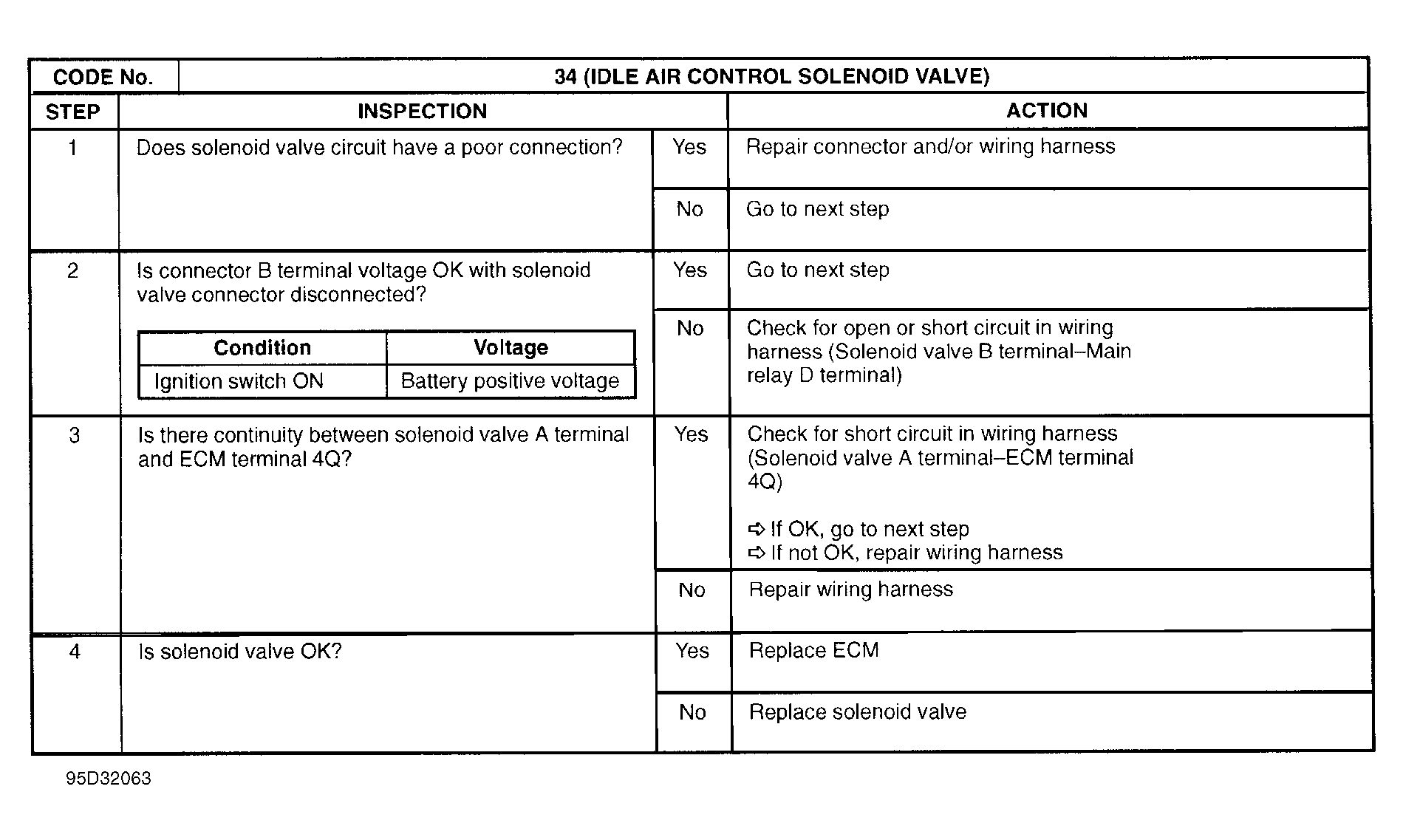

Fig 1: Trouble Code No. 34 Idle Air Control Solenoid Valve

G95D32063

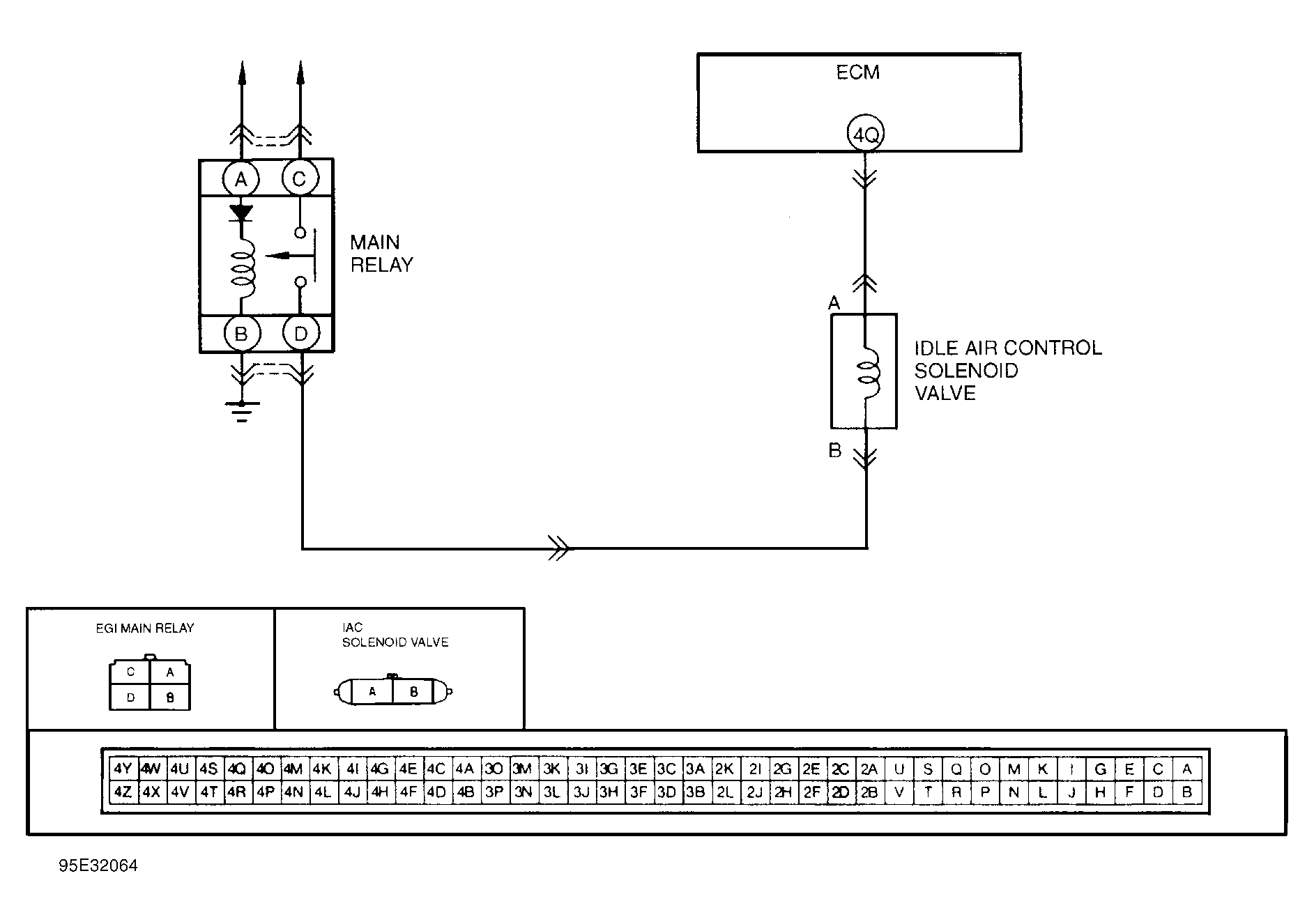

Fig 2: Trouble Code No. 34 Idle Air Control Solenoid Valve Circuit Diagram

G95E32064
