Code 39: Relief 2 Solenoid Valve

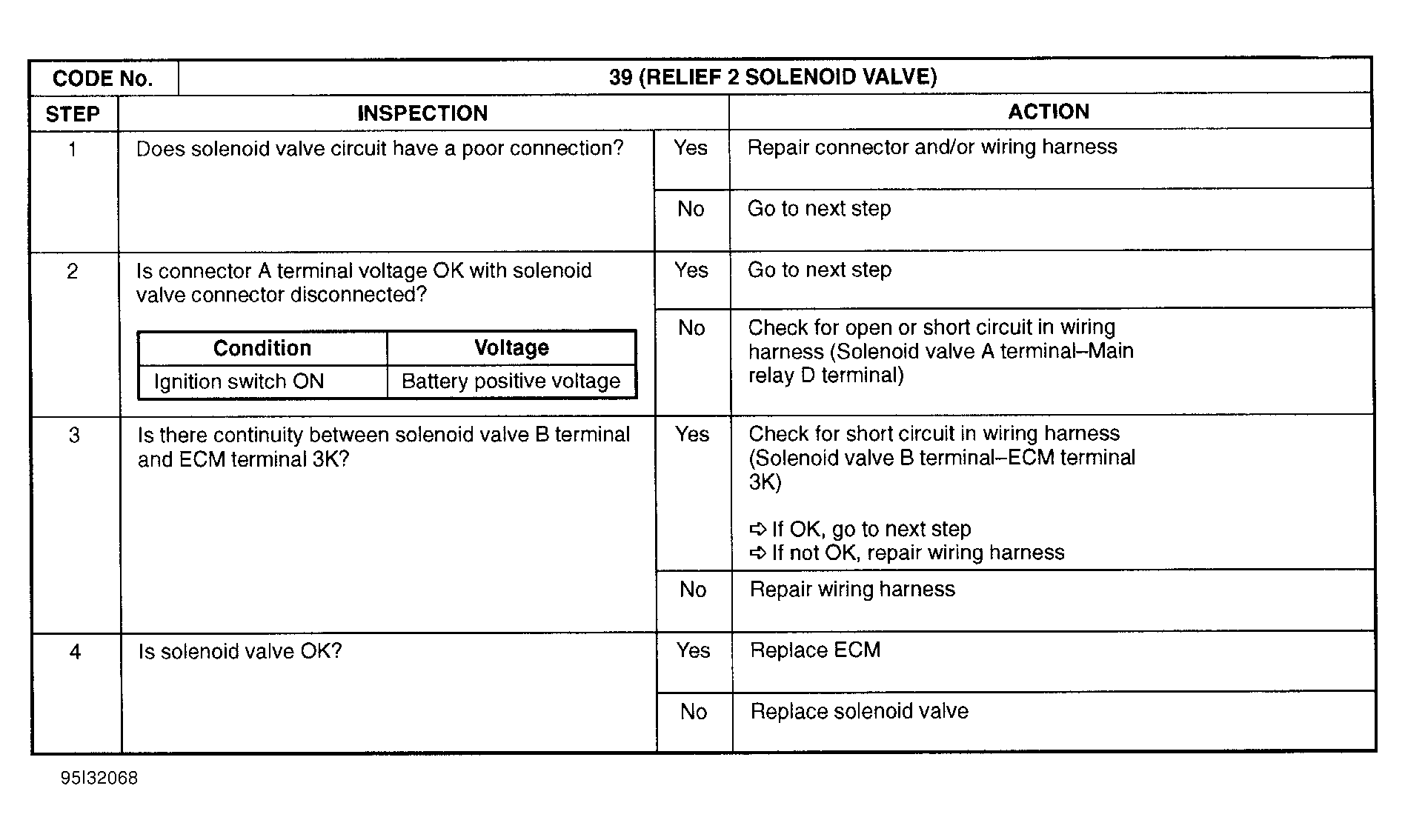

Fig 1: Trouble Code No. 39 Relief 2 Solenoid Valve

G95I32068

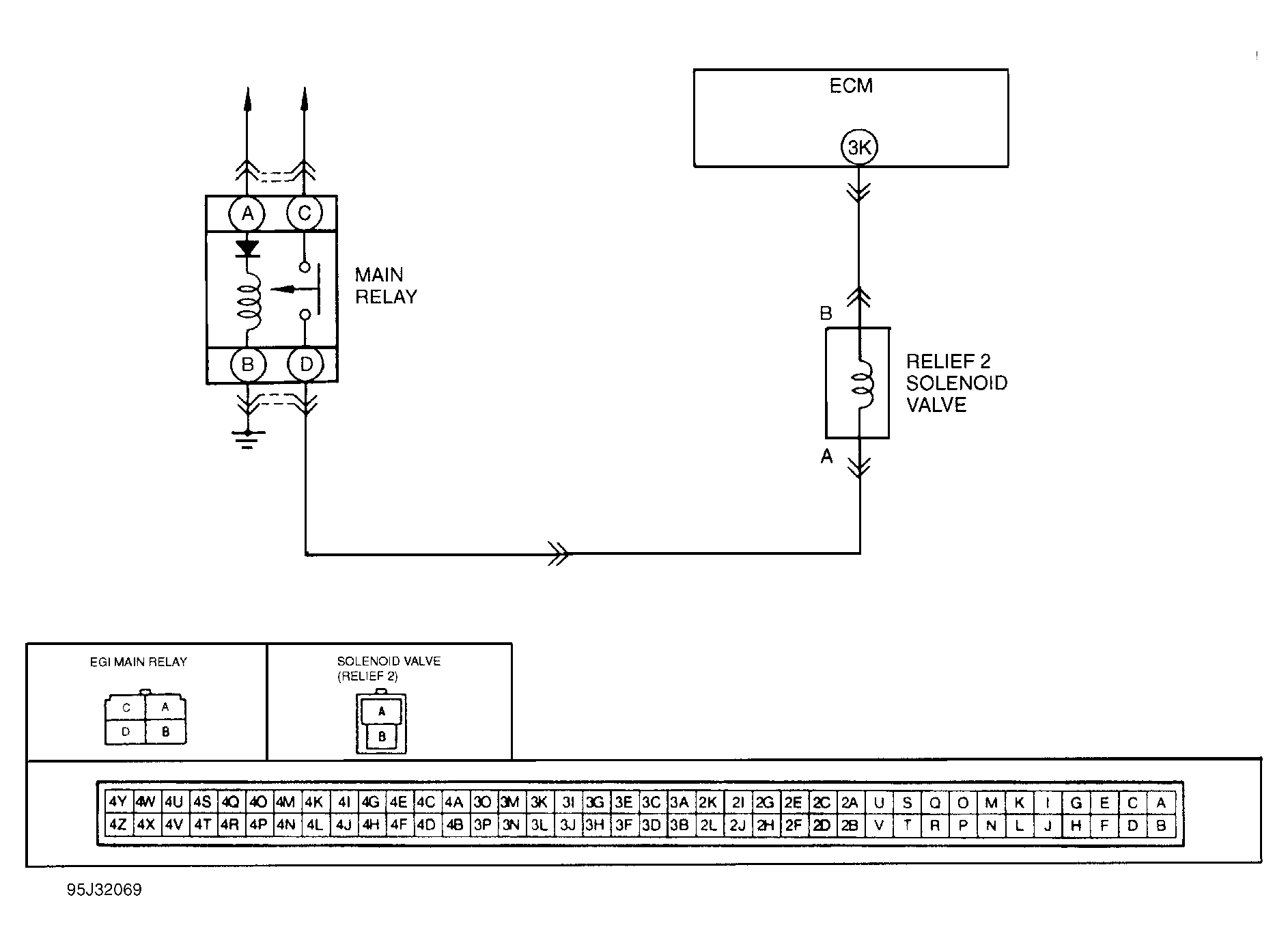

Fig 2: Trouble Code No. 39 Relief 2 Solenoid Valve Circuit Diagram

G95J32069
