Code 40: Purge Solenoid Valve

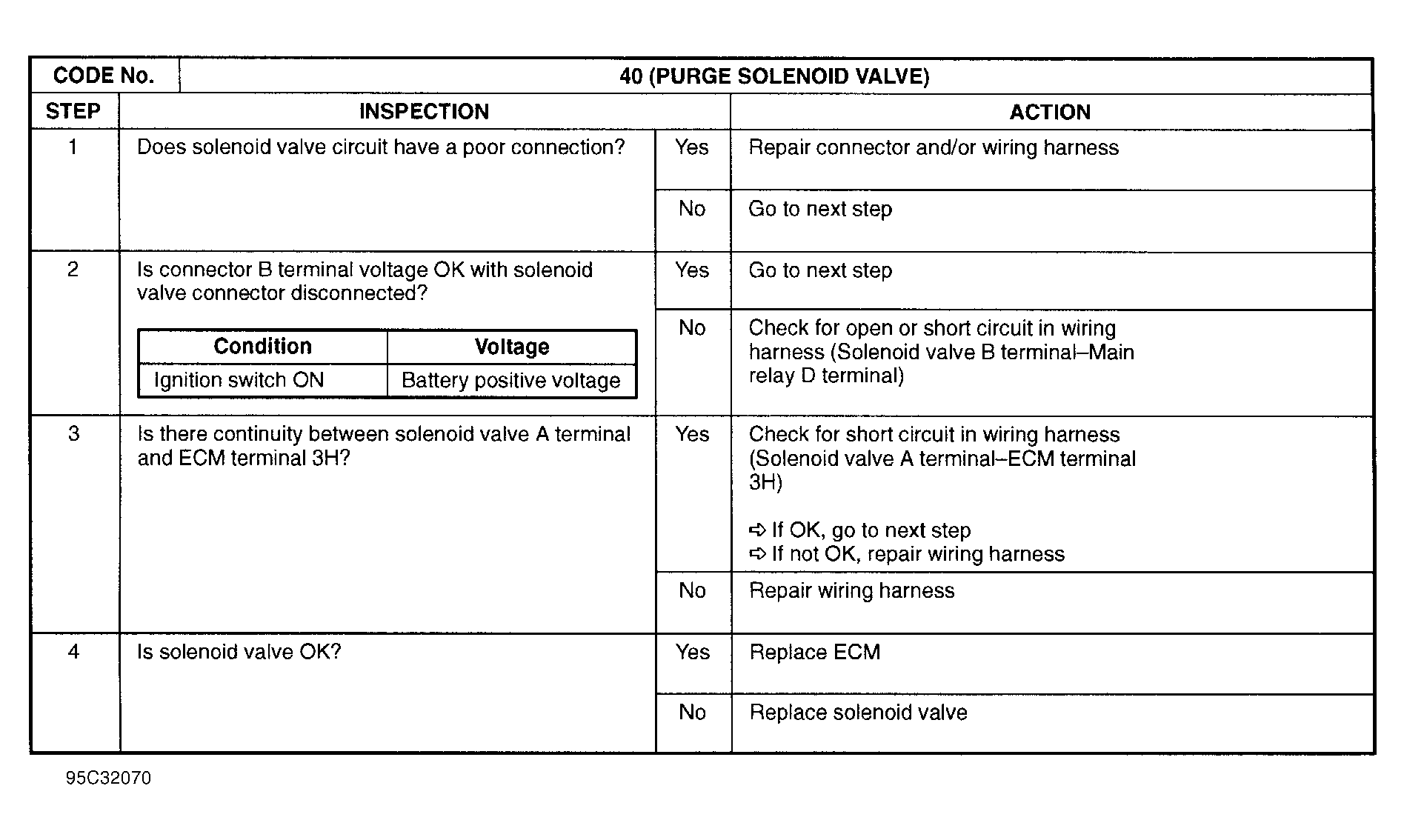

Fig 1: Trouble Code No. 40 Purge Solenoid Valve

G95C32070

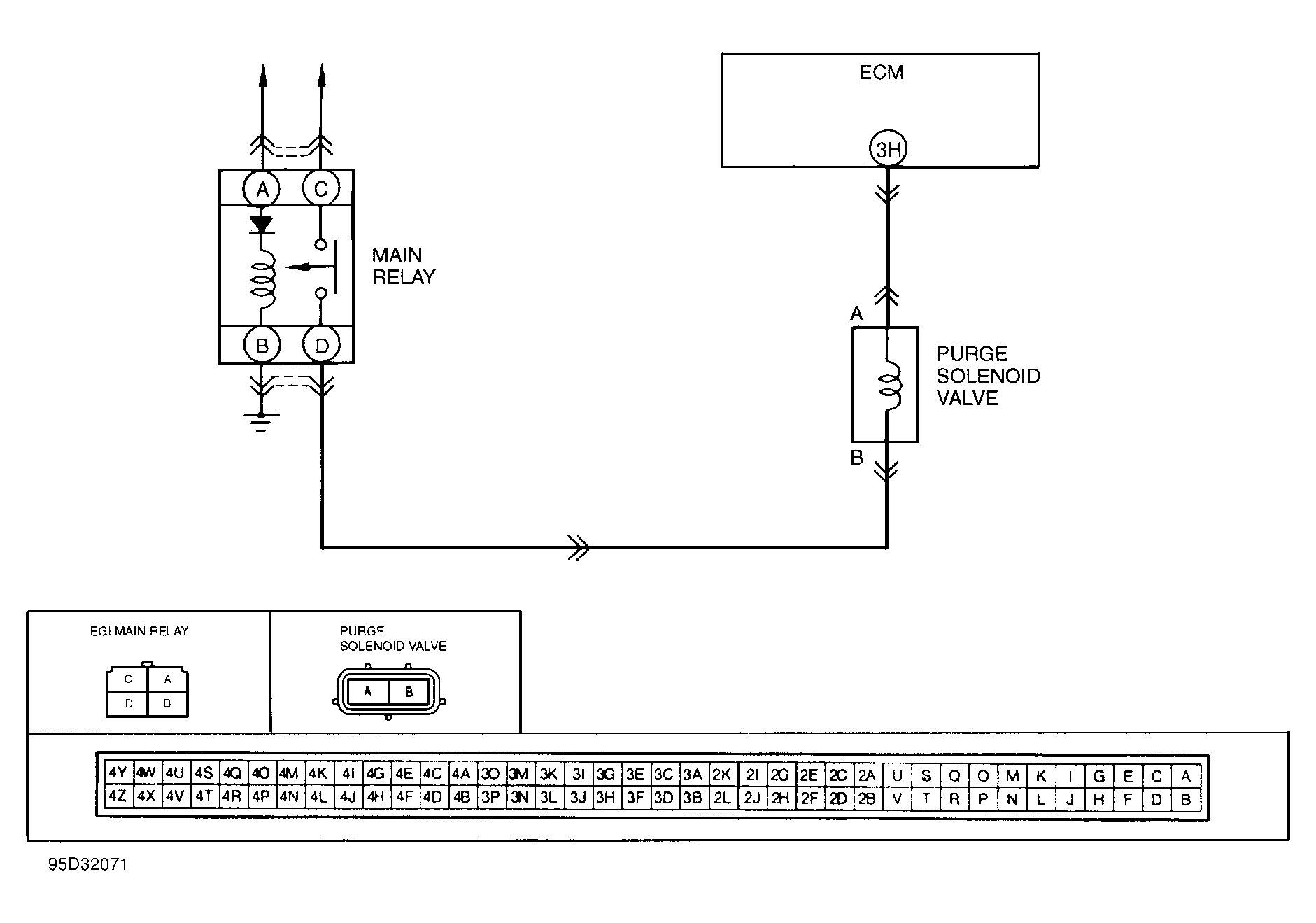

Fig 2: Trouble Code No. 40 Purge Solenoid Valve Circuit Diagram

G95D32071
