Code 42: Turbo Pre-Control Solenoid Valve

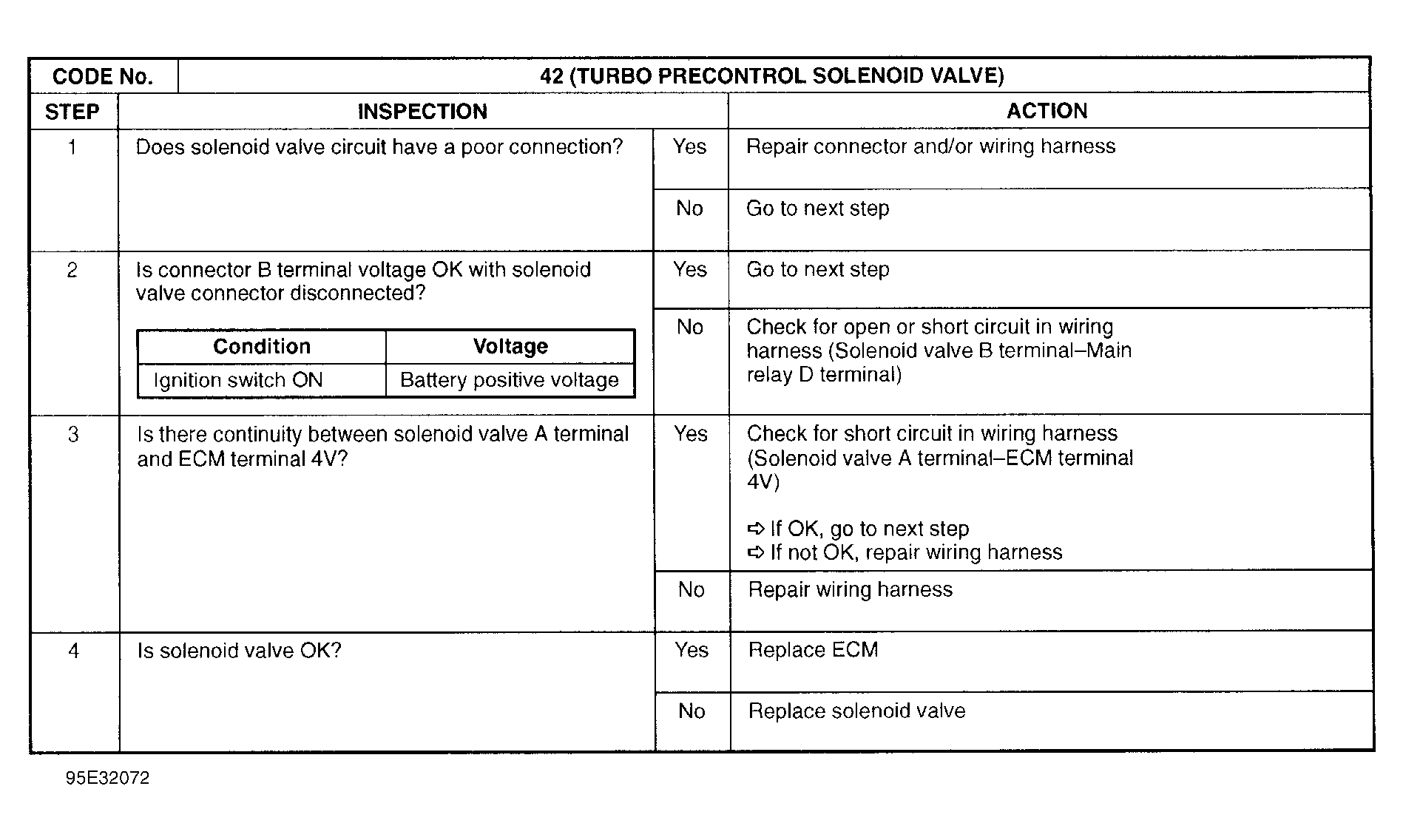

Fig 1: Trouble Code No. 42 Turbo Pre-Control Solenoid Valve

G95E32072

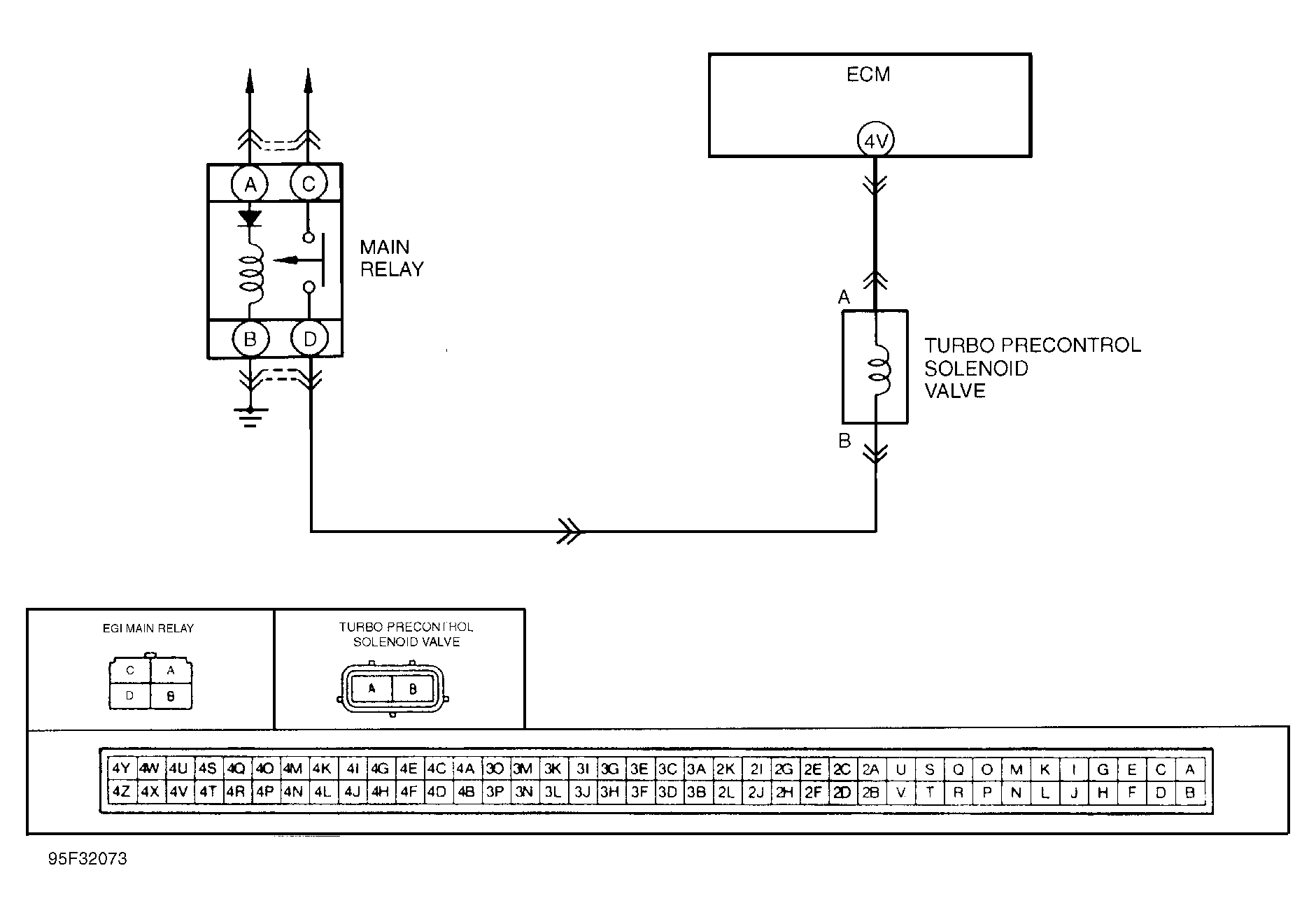

Fig 2: Trouble Code No. 42 Turbo Pre-Control Solenoid Valve Circuit Diagram

G95F32073
