Home › Mazda › 1995 › RX-7 Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Trouble Code Charts › Code 43: WASTEGATE Control Solenoid Valve

Code 43: WASTEGATE Control Solenoid Valve

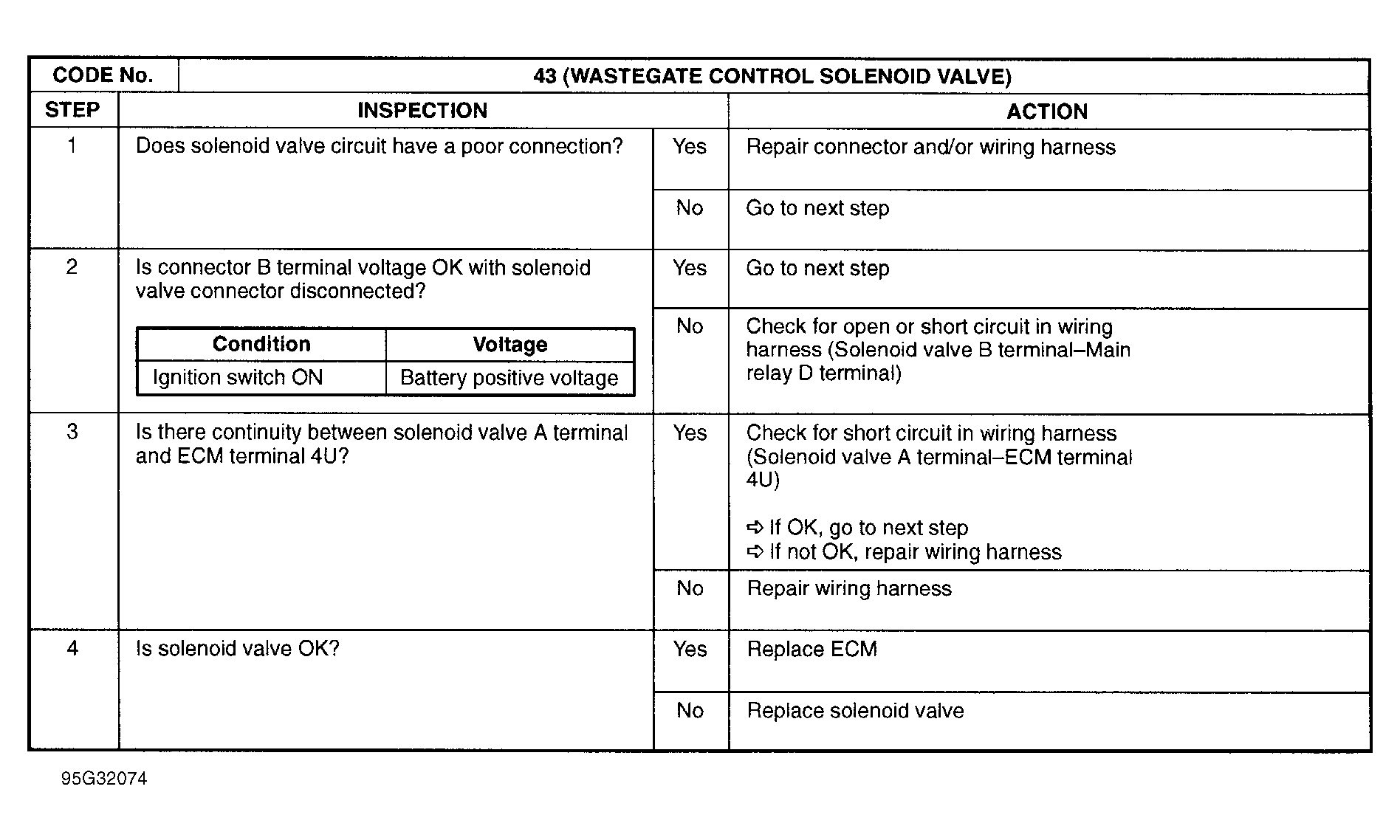

Fig 1: Trouble Code No. 43 Wastegate Control Solenoid Valve

G95G32074

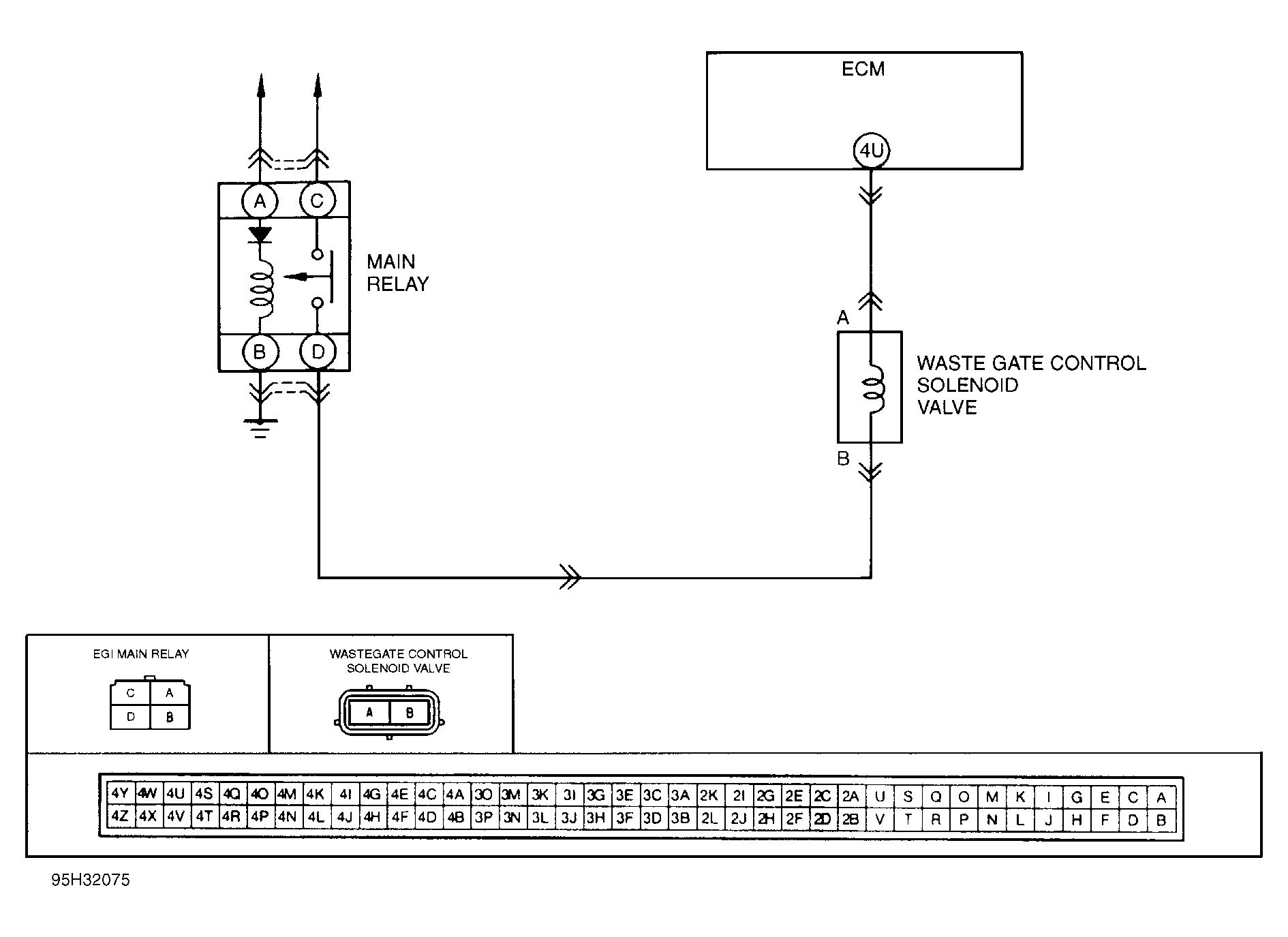

Fig 2: Trouble Code No. 43 Wastegate Control Solenoid Valve Circuit Diagram

G95H32075
