Code 44: Turbo Control Solenoid Valve

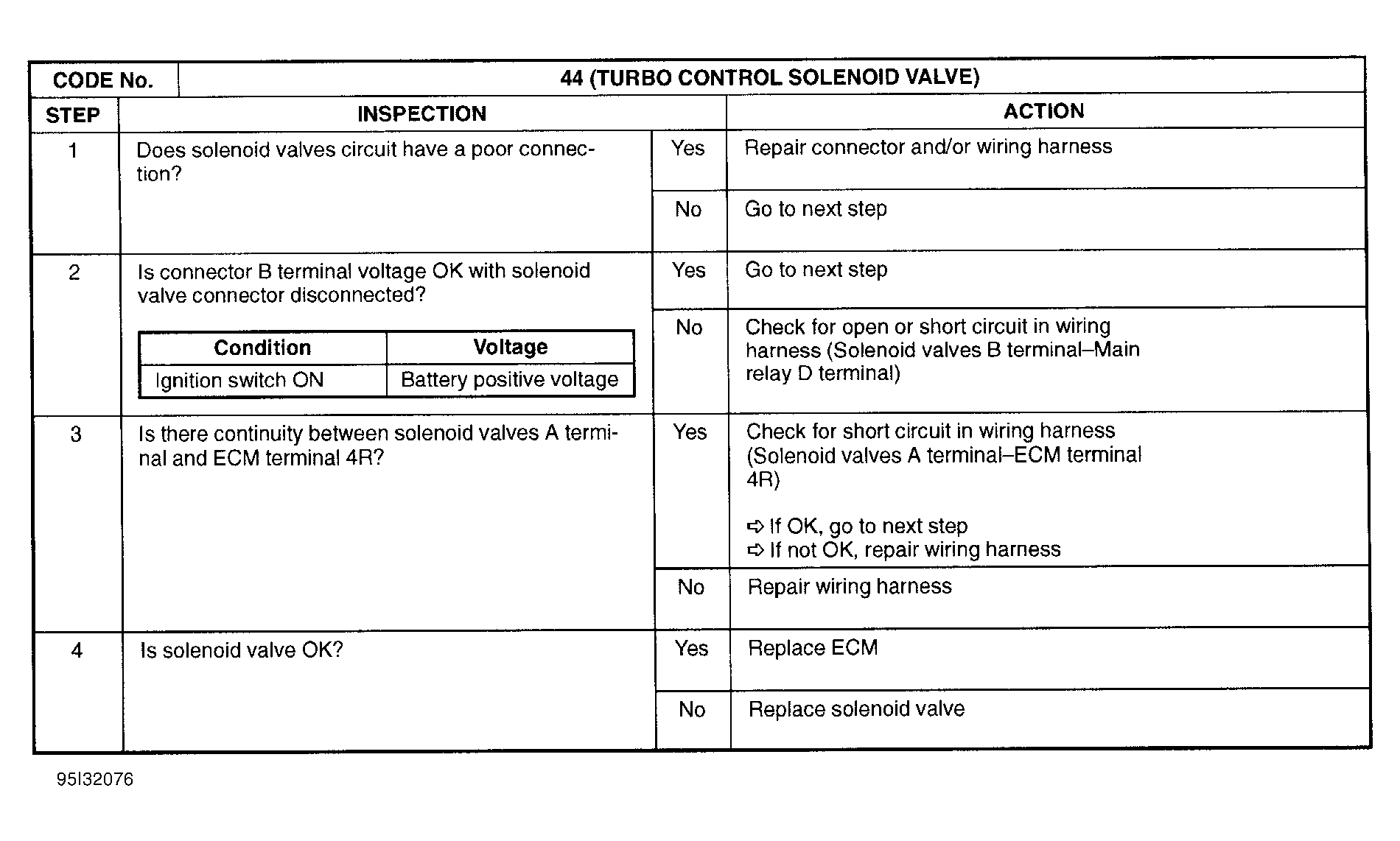

Fig 1: Trouble Code No. 44 Turbo Control Solenoid Valve

G95I32076

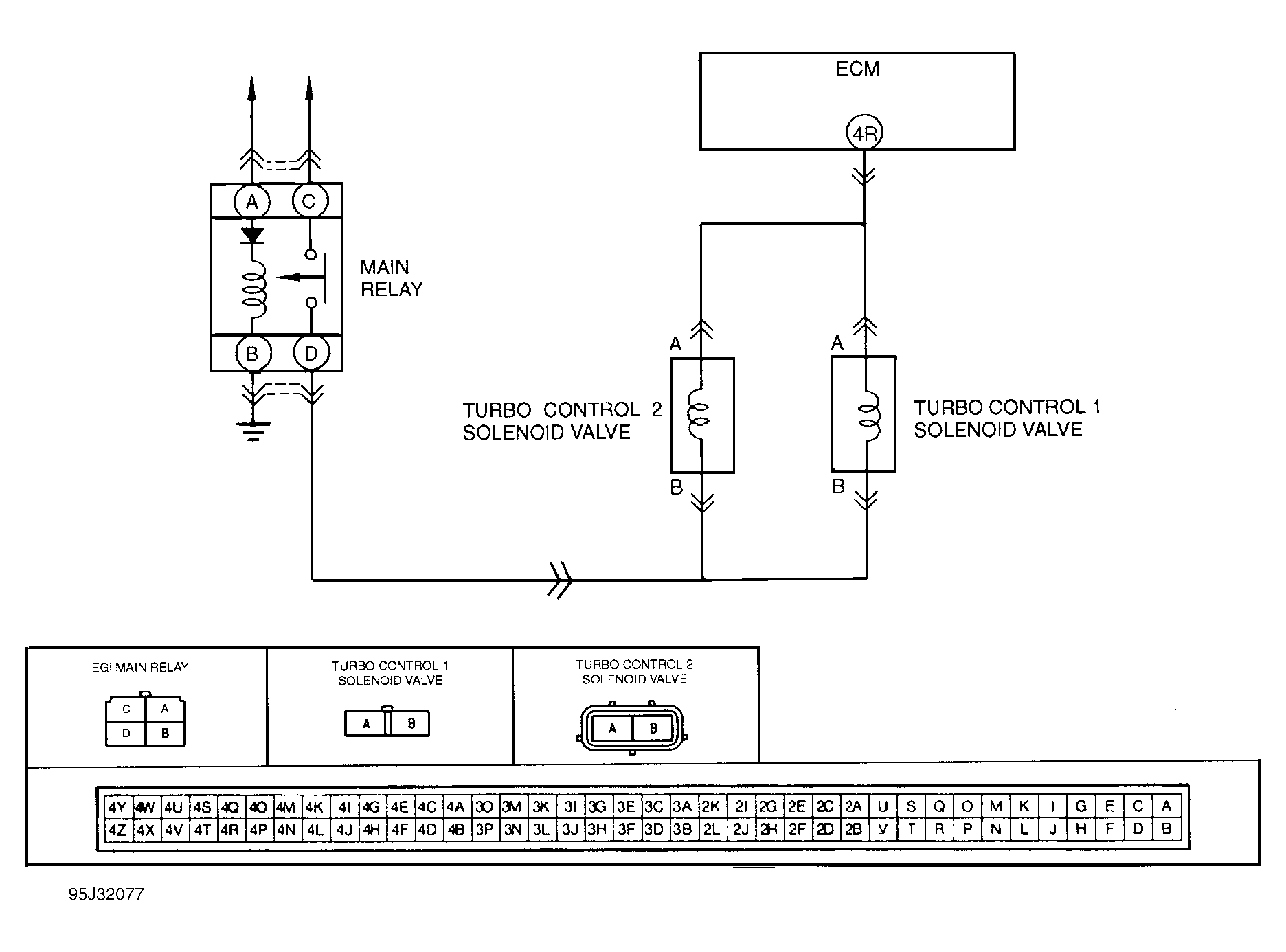

Fig 2: Trouble Code No. 44 Turbo Control Solenoid Valve Circuit Diagram

G95J32077
