Code 45: Charge Control Solenoid Valve

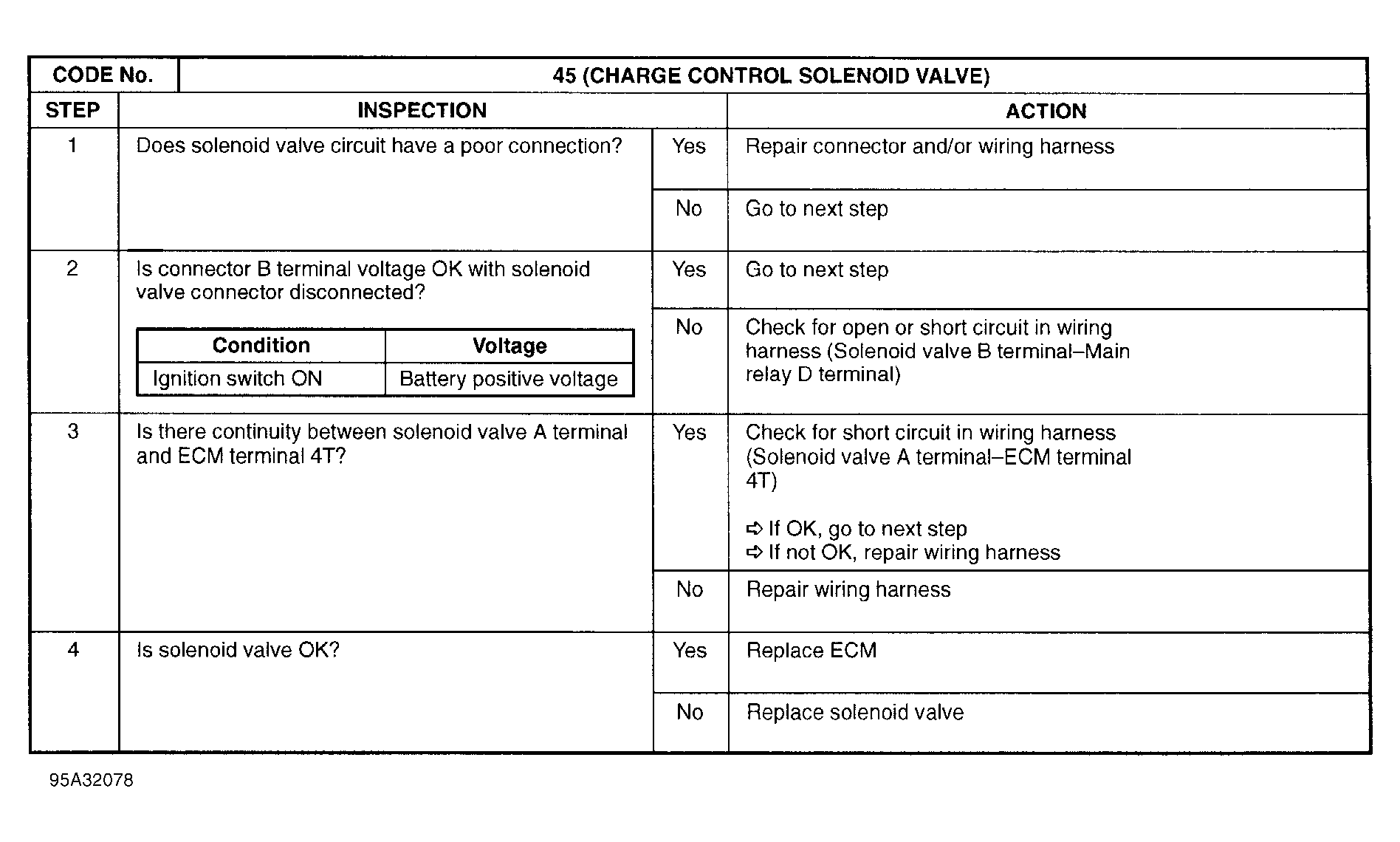

Fig 1: Trouble Code No. 45 Charge Control Solenoid Valve
G95A32078

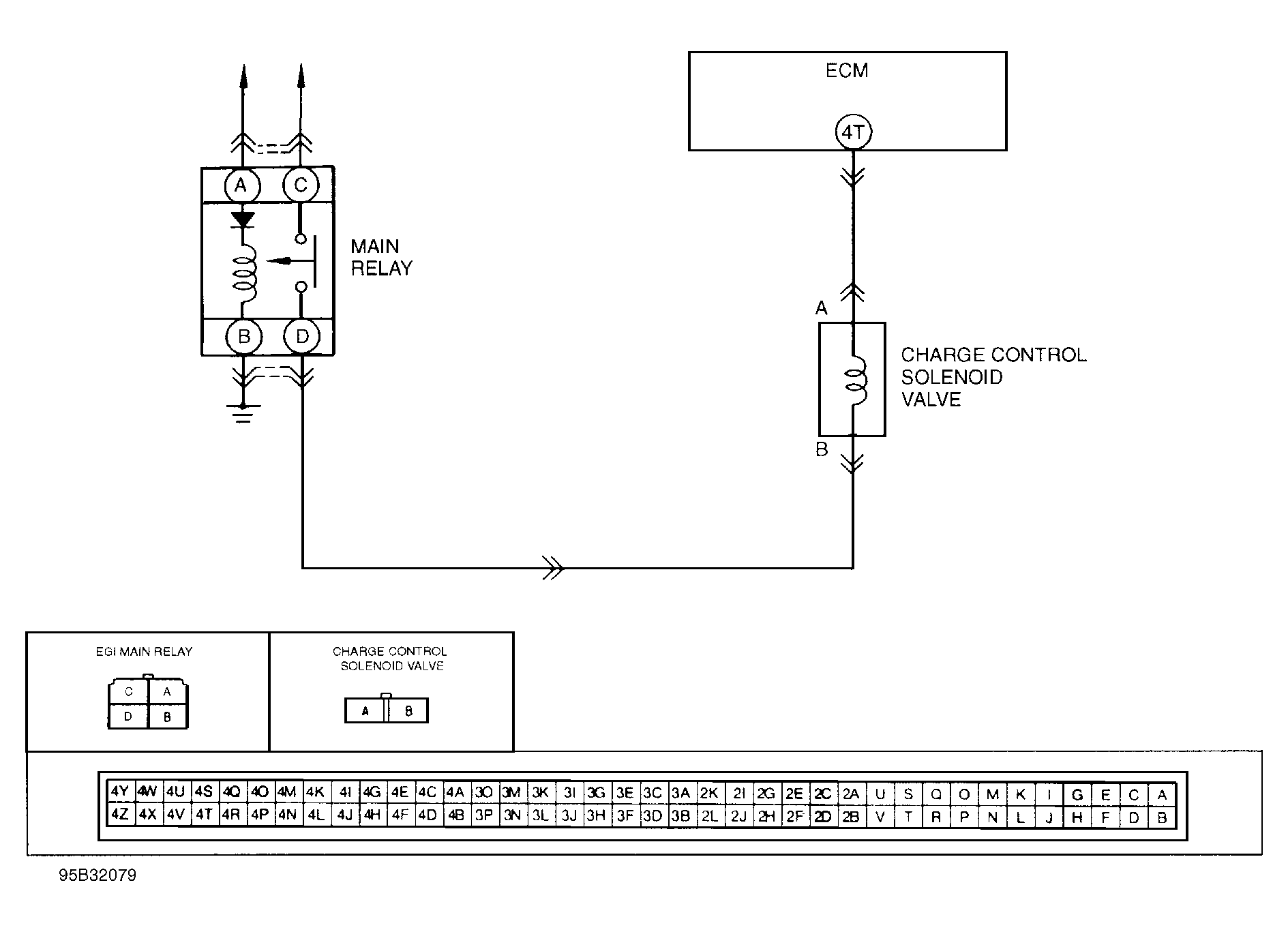

Fig 2: Trouble Code No. 45 Charge Control Solenoid Valve Circuit Diagram
G95B32079
