Code 5: Knock Sensor
Code 5: Knock Sensor

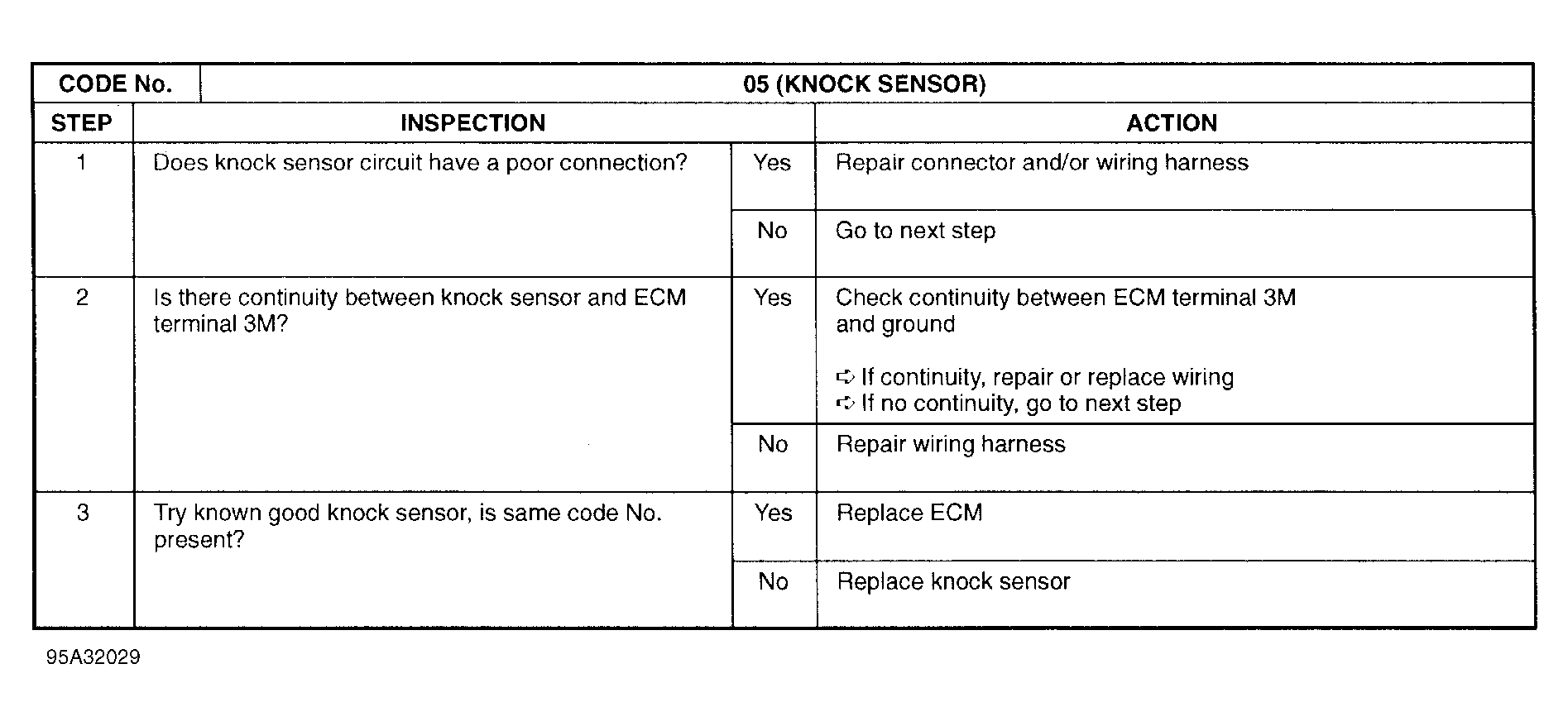

Fig 1: Trouble Code No. 5 Knock Sensor

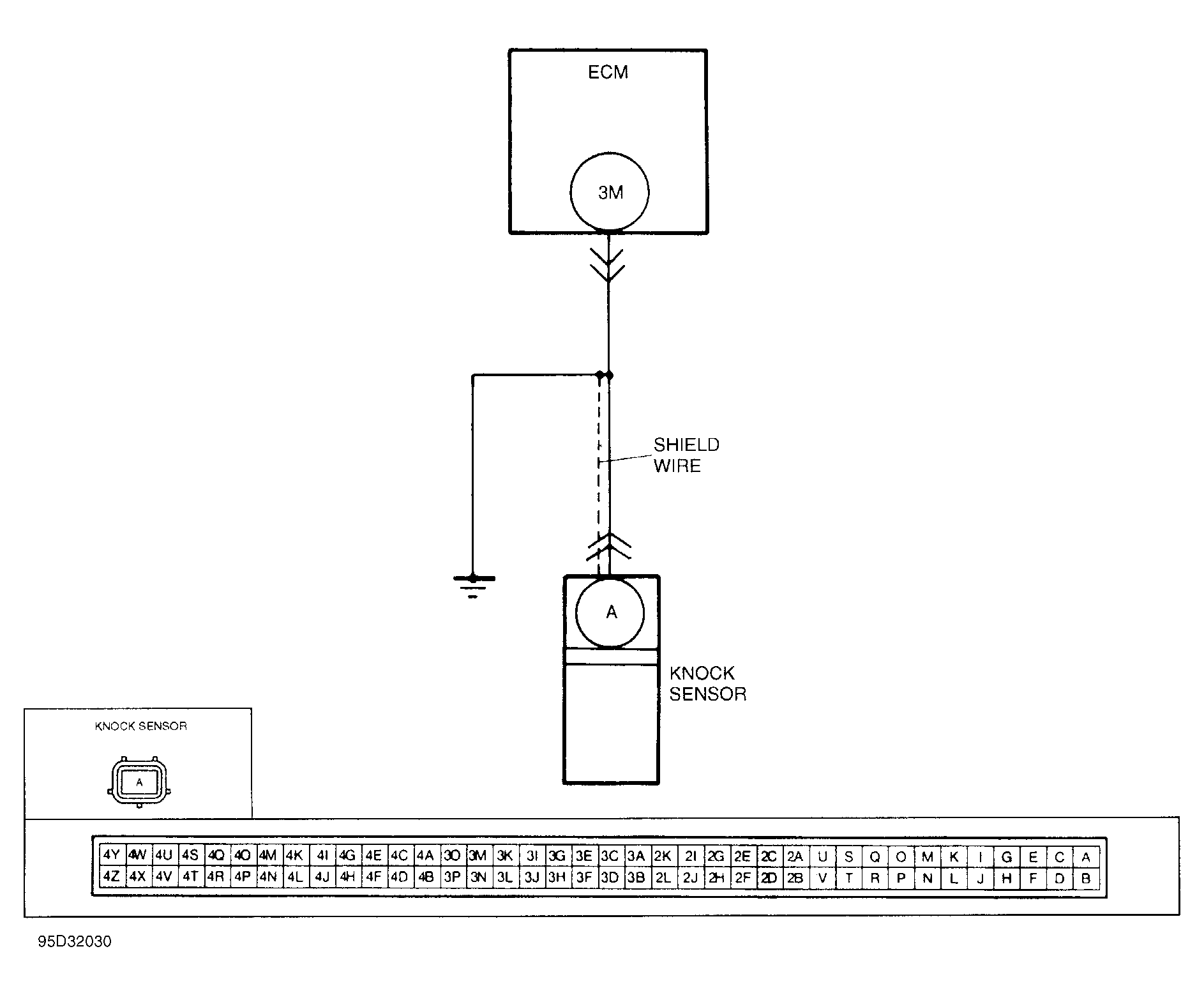

Fig 2: Trouble Code No. 5 Knock Sensor Circuit Diagram
