Code 51: Fuel Pump Relay - Speed

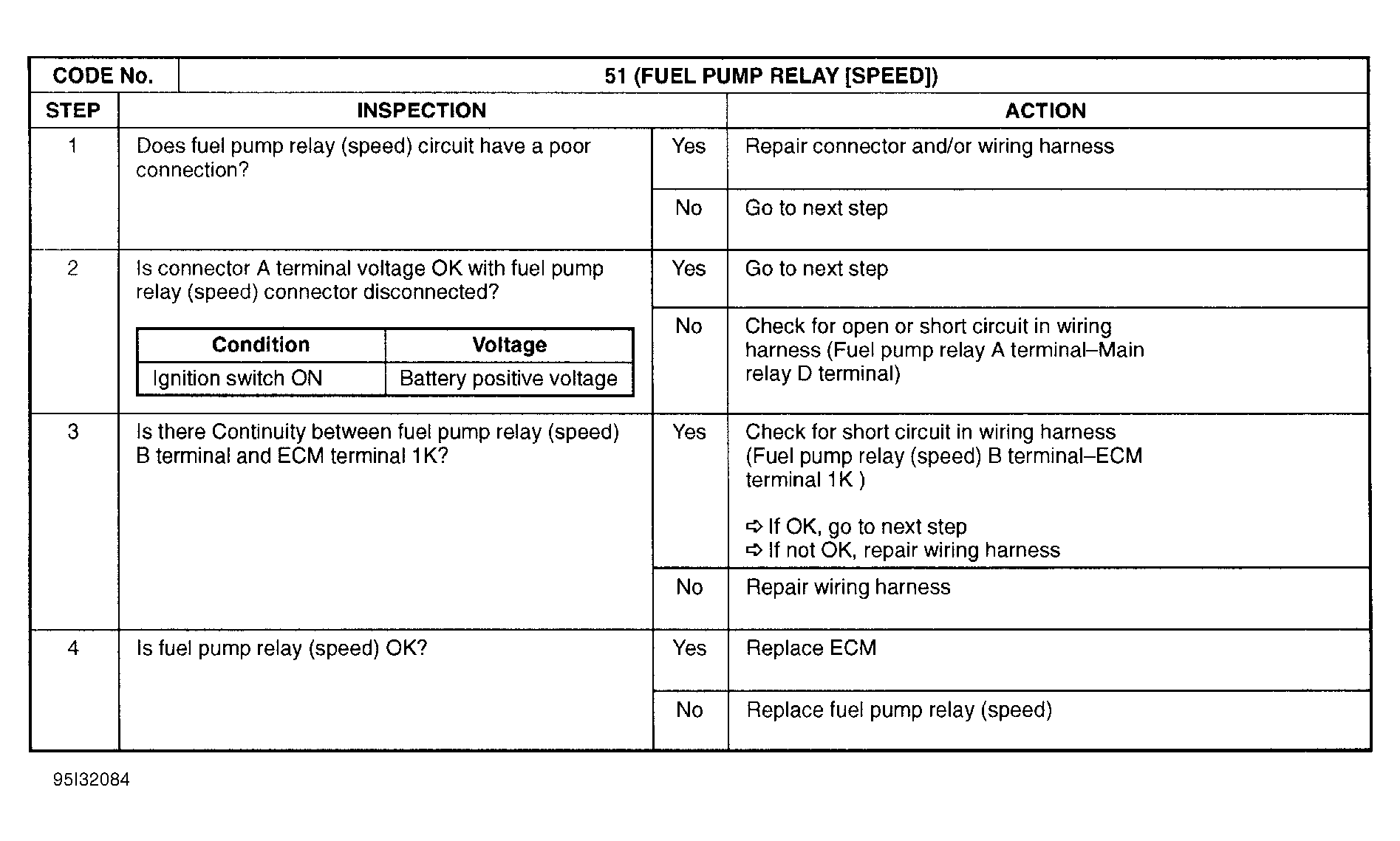

Fig 1: Trouble Code No. 51 Fuel Pump Relay - Speed

G95I32084

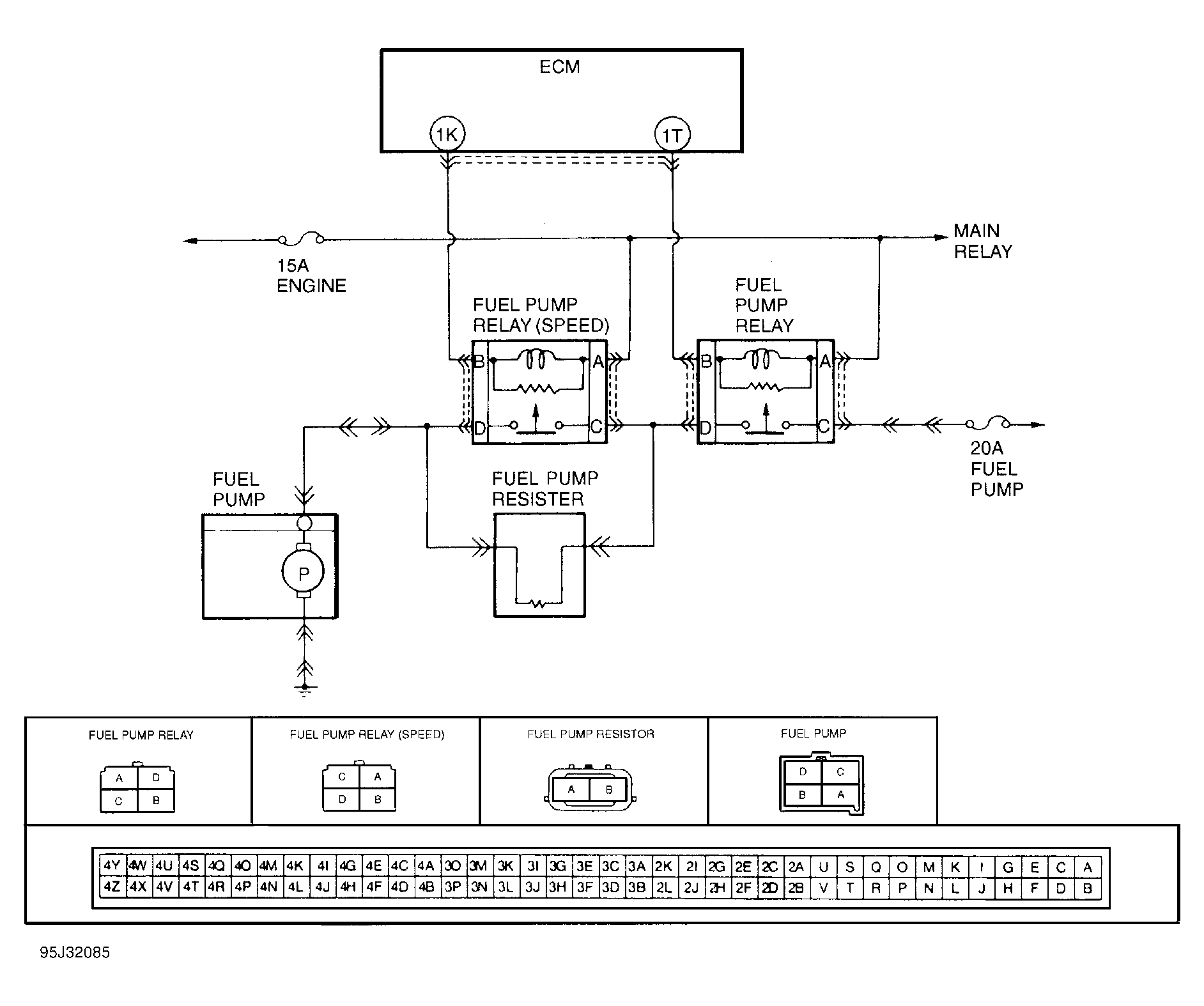

Fig 2: Trouble Code No. 51 Fuel Pump Relay (Speed) Circuit Diagram

G95J32085
