Code 54: Air Pump Relay
Code 54: Air Pump Relay

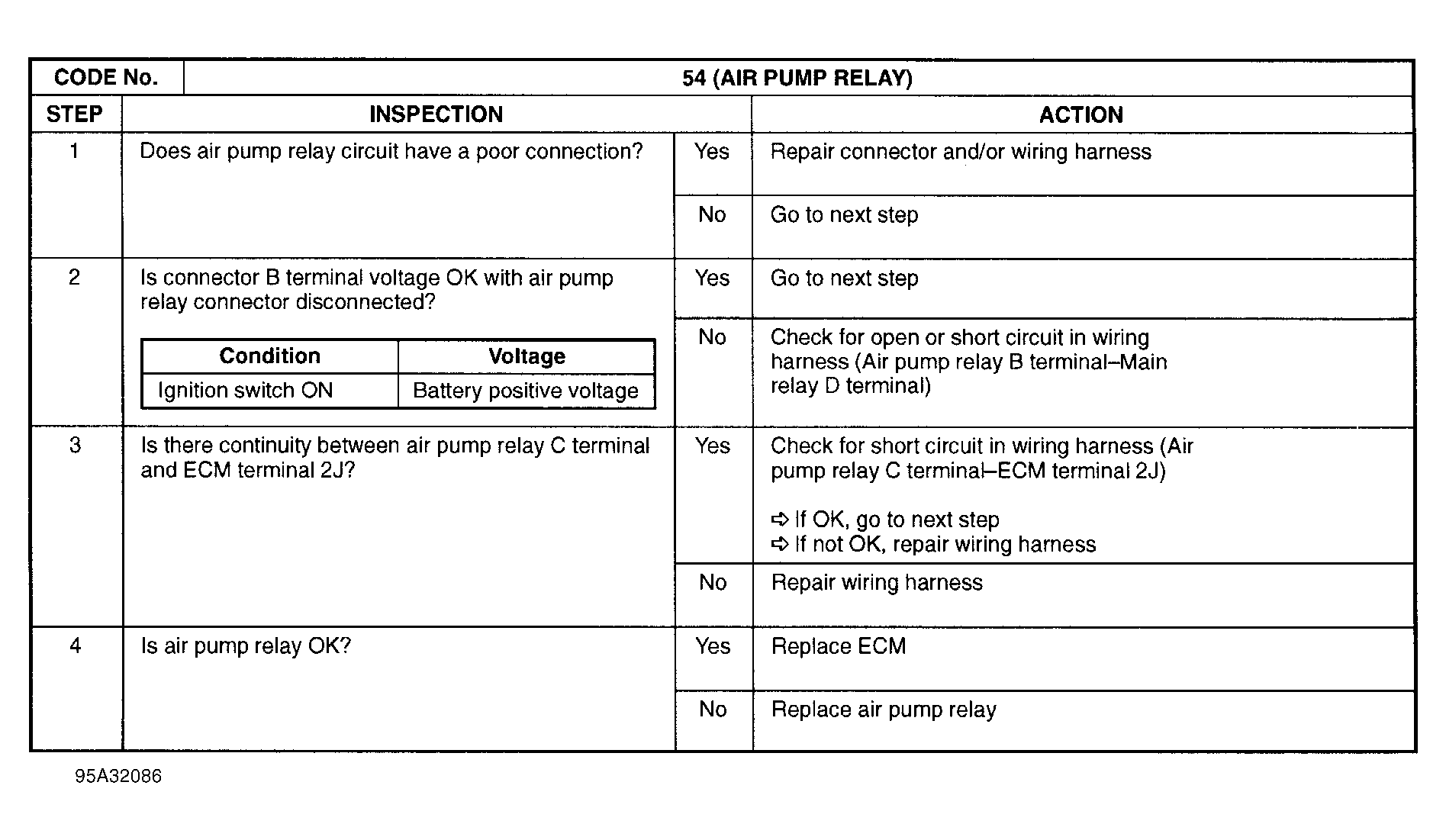

Fig 1: Trouble Code No. 54 Air Pump Relay

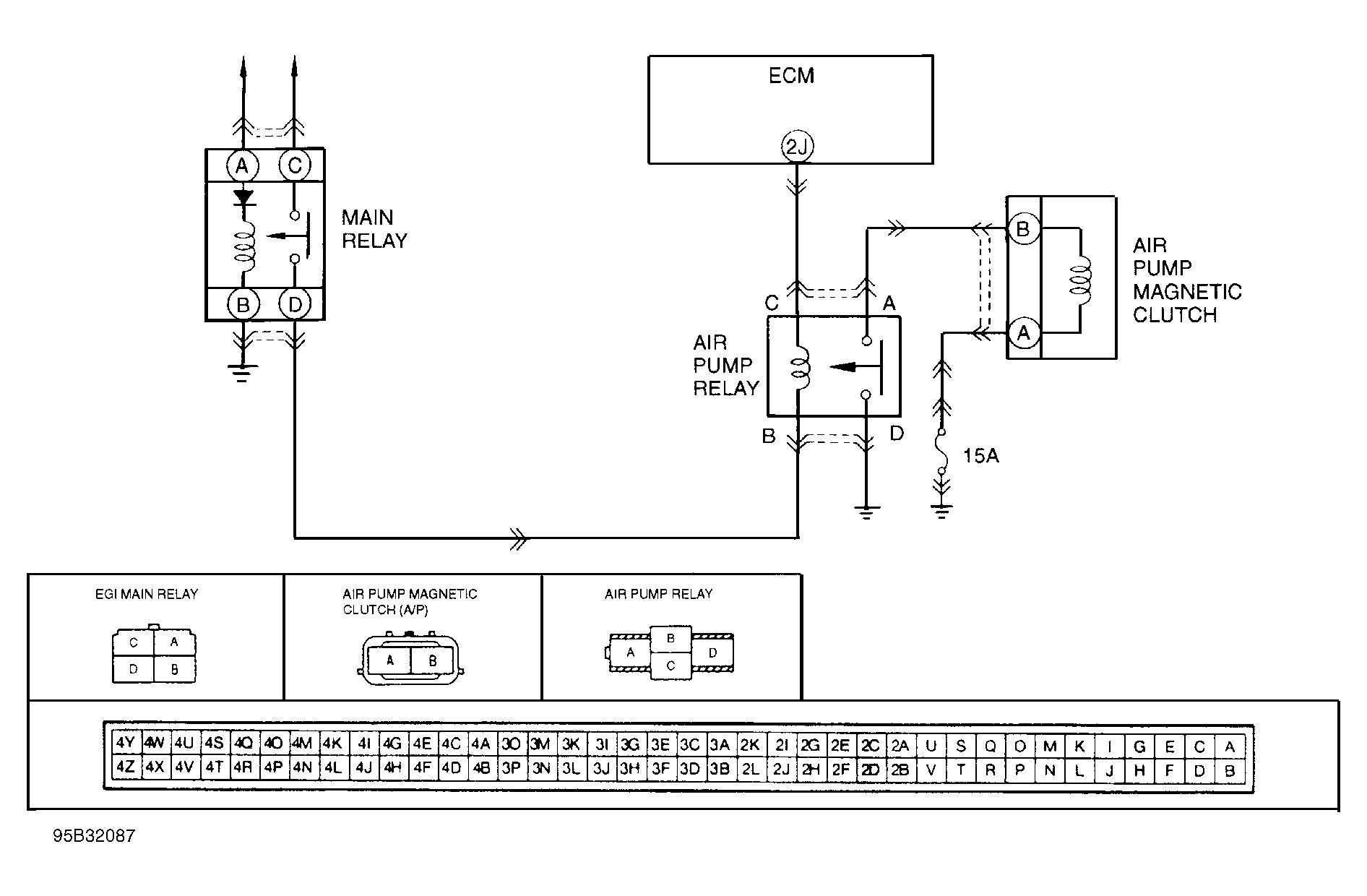

Fig 2: Trouble Code No. 54 Air Pump Relay Circuit Diagram
