Code 6: Vehicle Speed Sensor

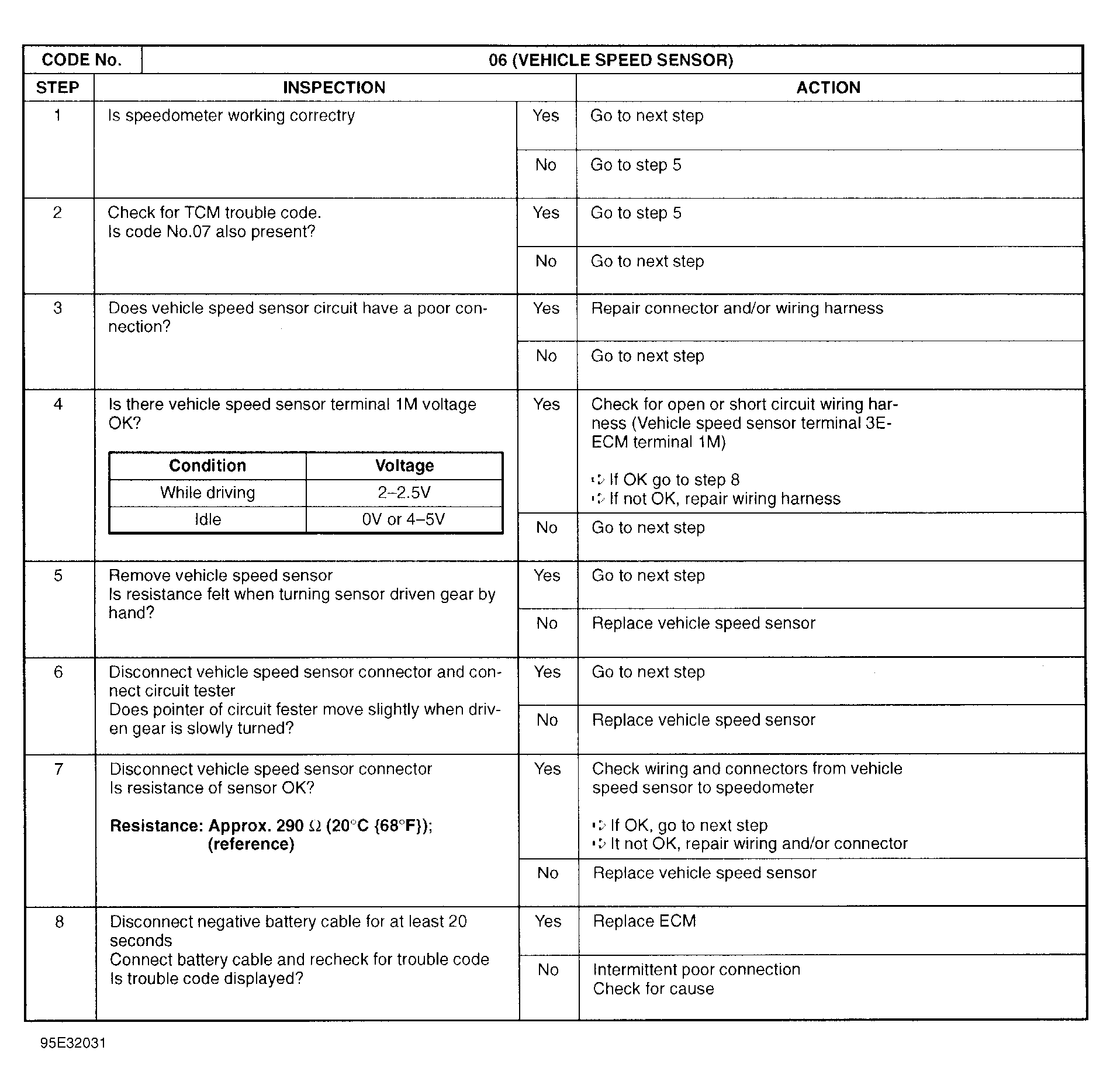

Fig 1: Trouble Code No. 6 Vehicle Speed Sensor

G95E32031

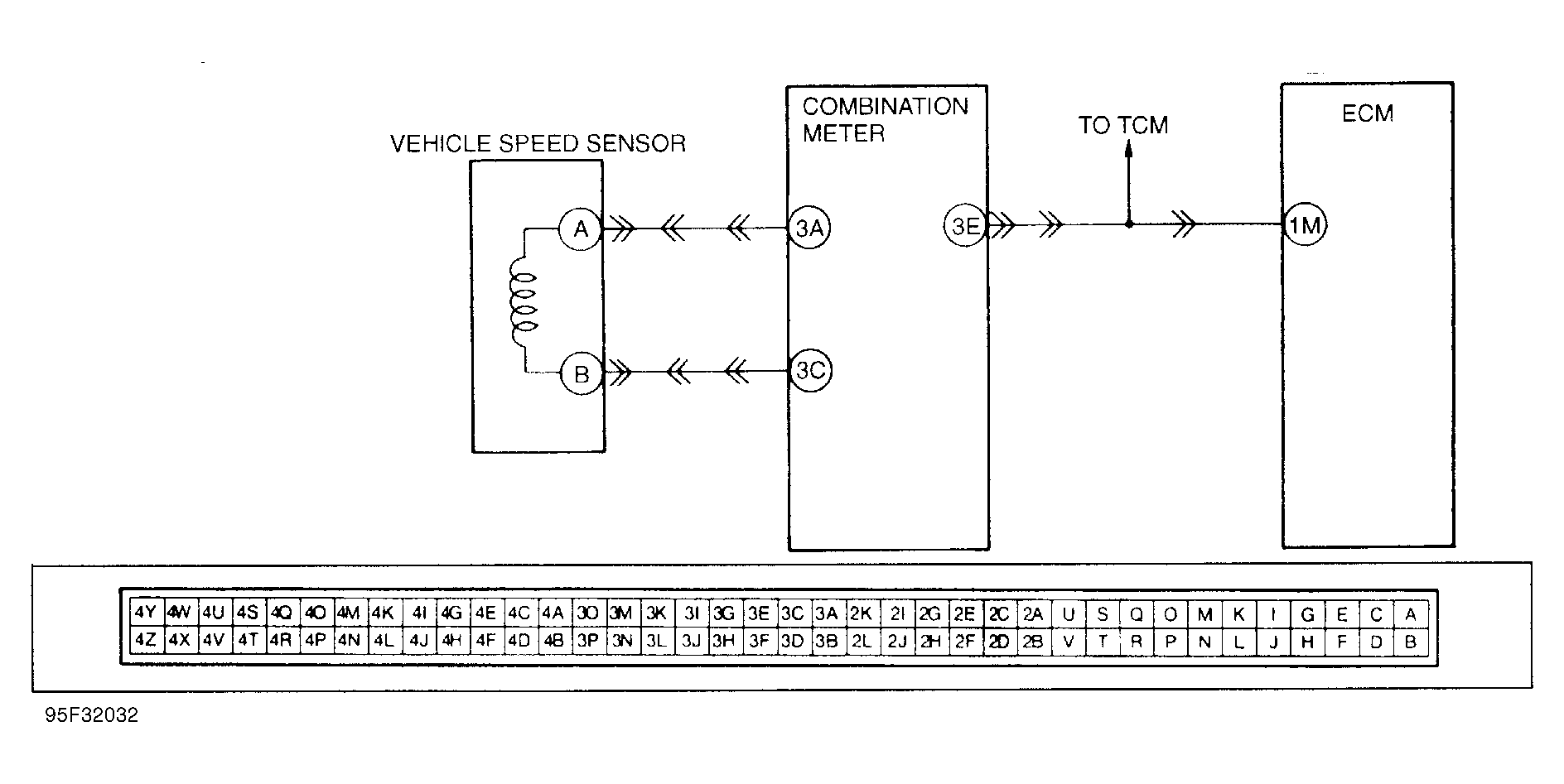

Fig 2: Trouble Code No. 6 Vehicle Speed Sensor Circuit Diagram

G95F32032
