Code 77: Torque Reduced Signal

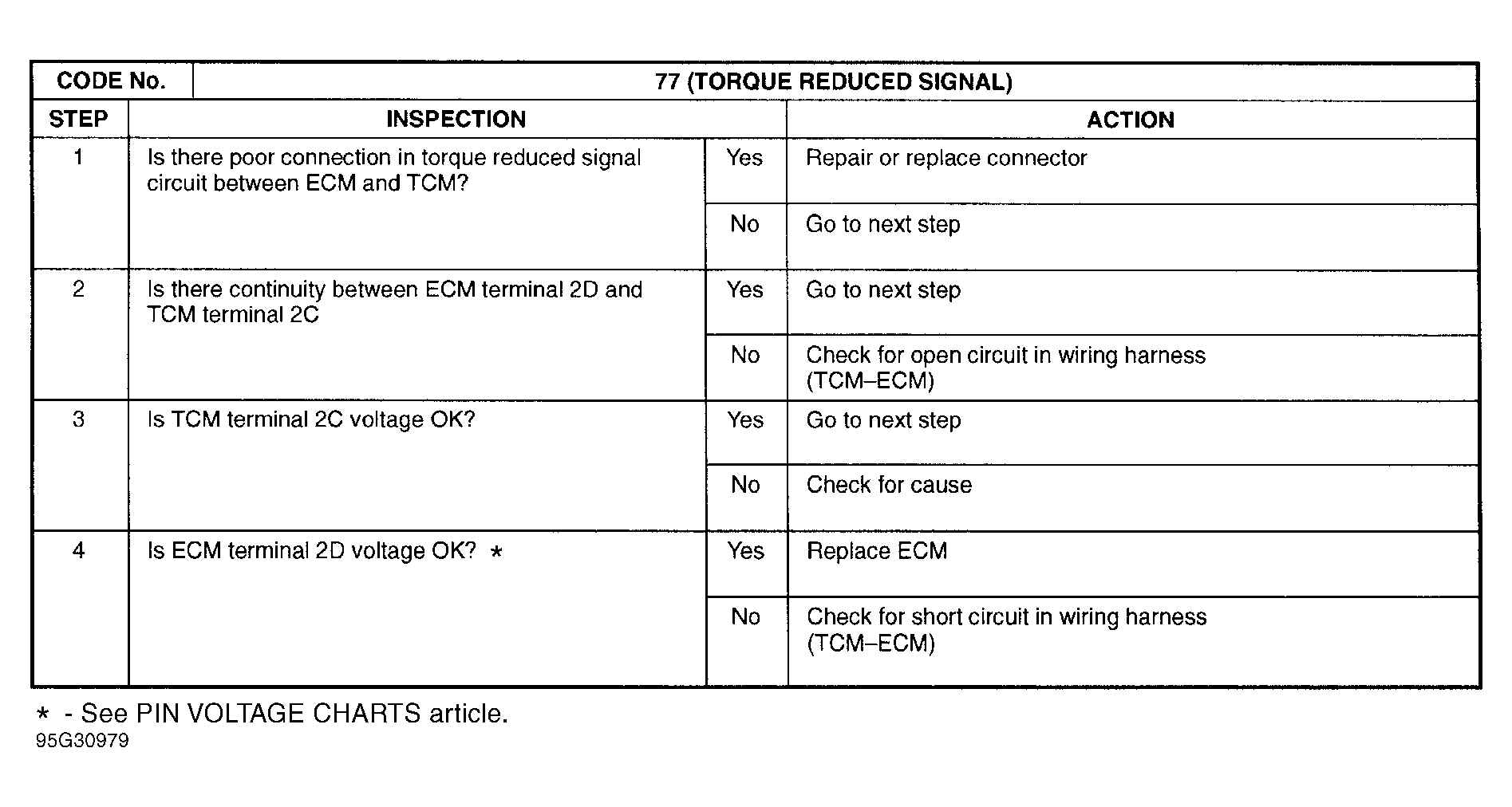

Fig 1: Trouble Code No. 77 Torque Reduced Signal

G95G30979

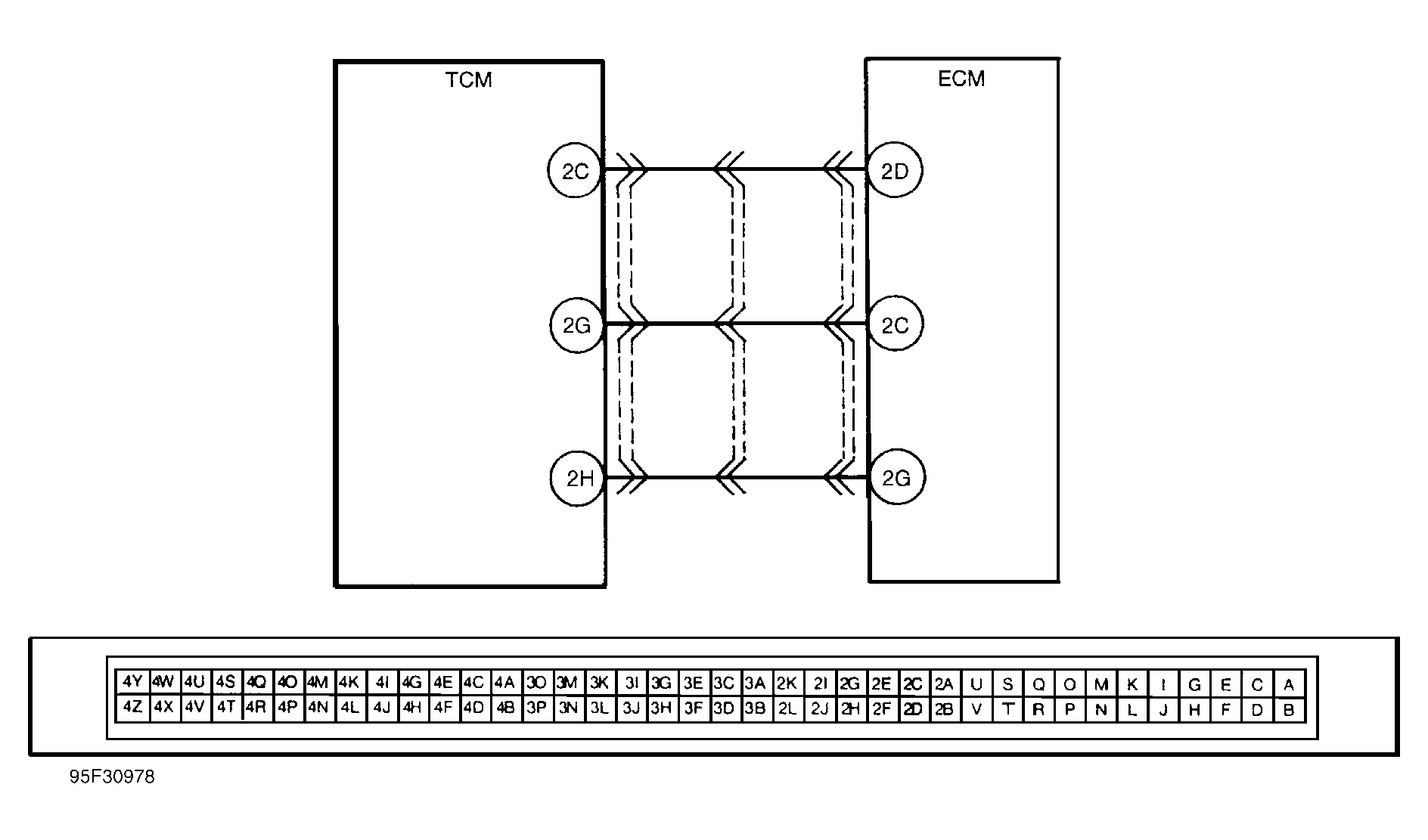

Fig 2: Trouble Code No. 77 TCM Circuit Diagram

G95F30978
