Home › Mazda › 1995 › RX-7 Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Trouble Code Identification Charts › Notes

Trouble Code Identification Charts: Notes

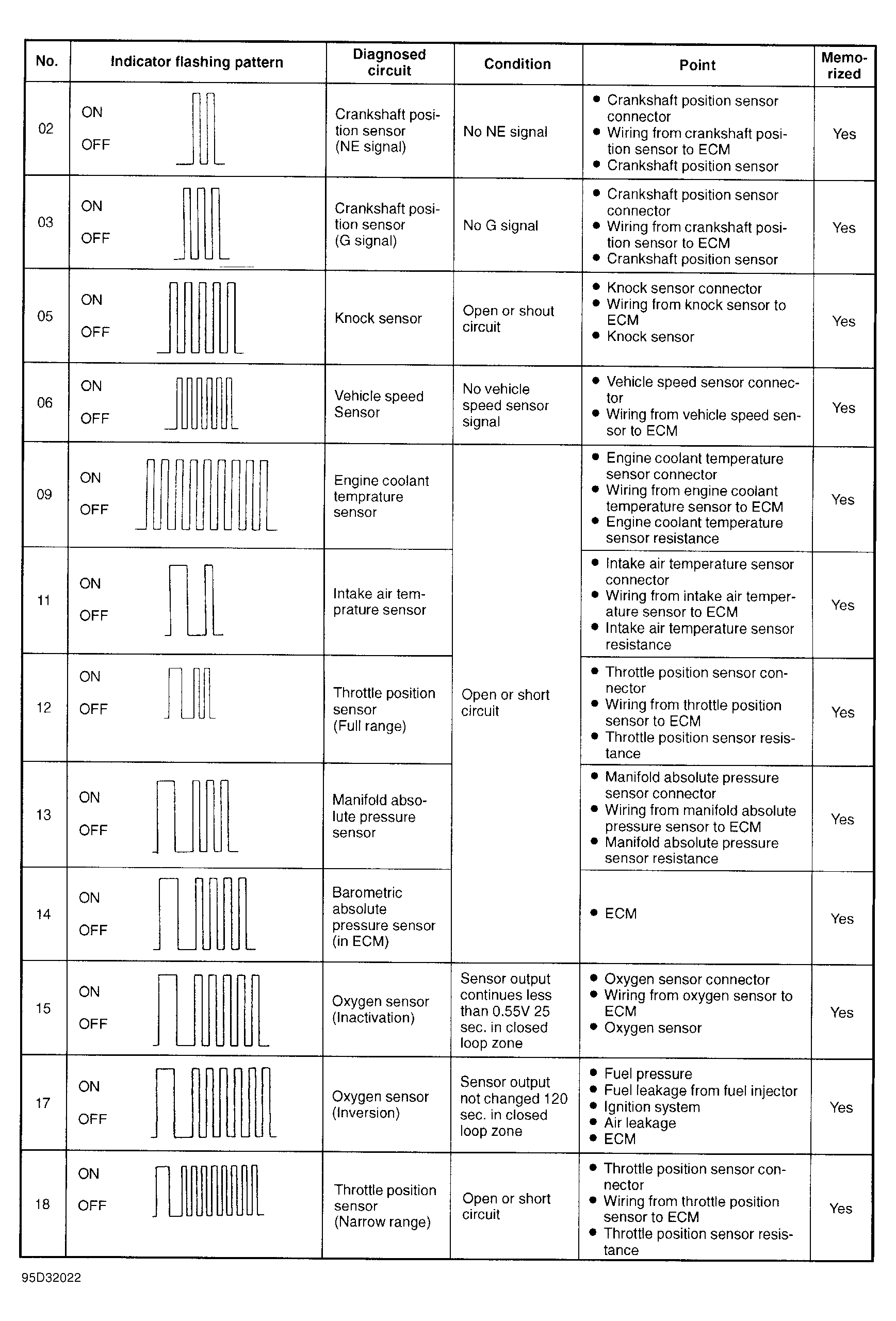

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 4)
G95D32022Courtesy of MAZDA MOTORS CORP.

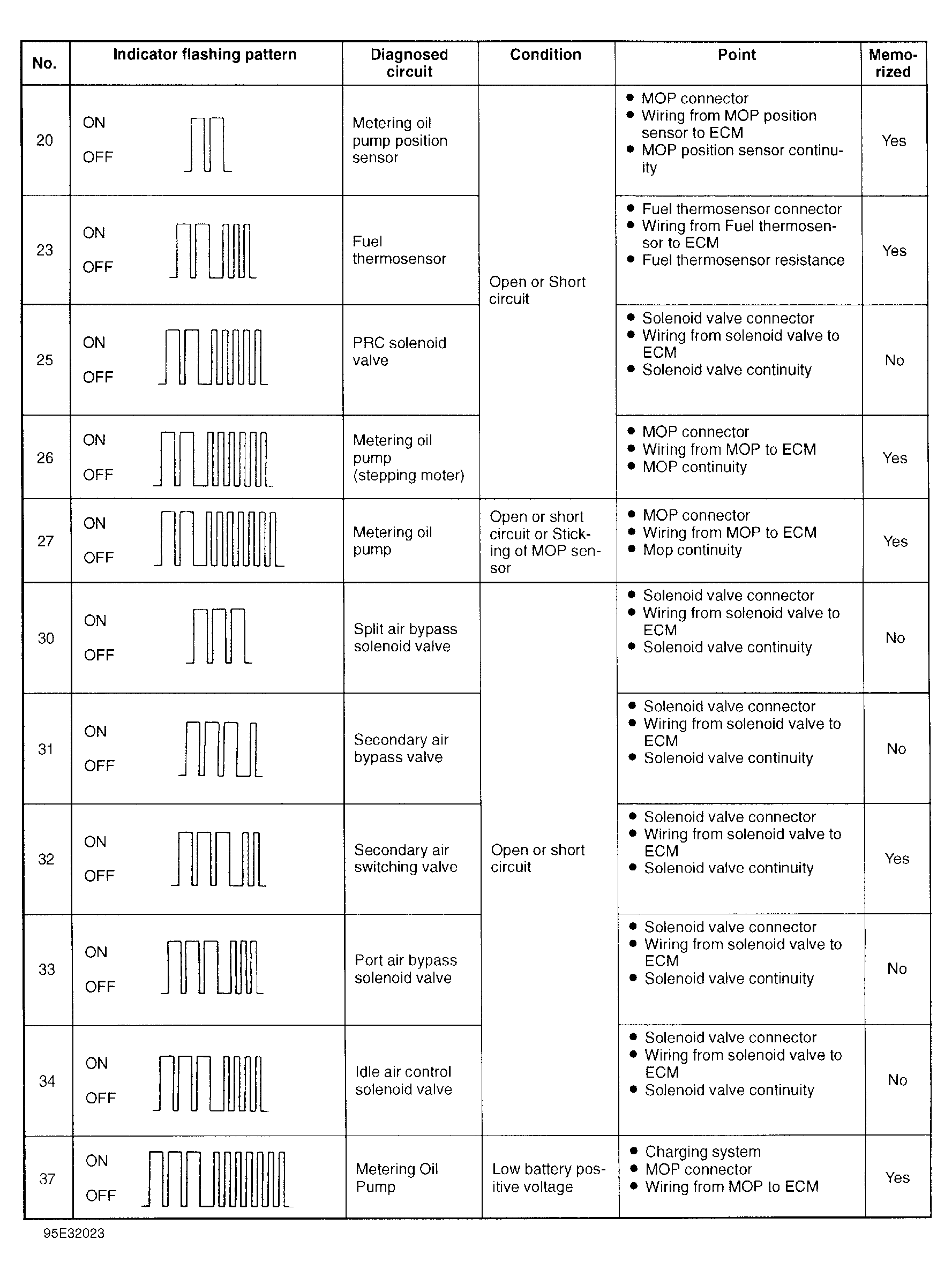

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 4)
G95E32023Courtesy of MAZDA MOTORS CORP.

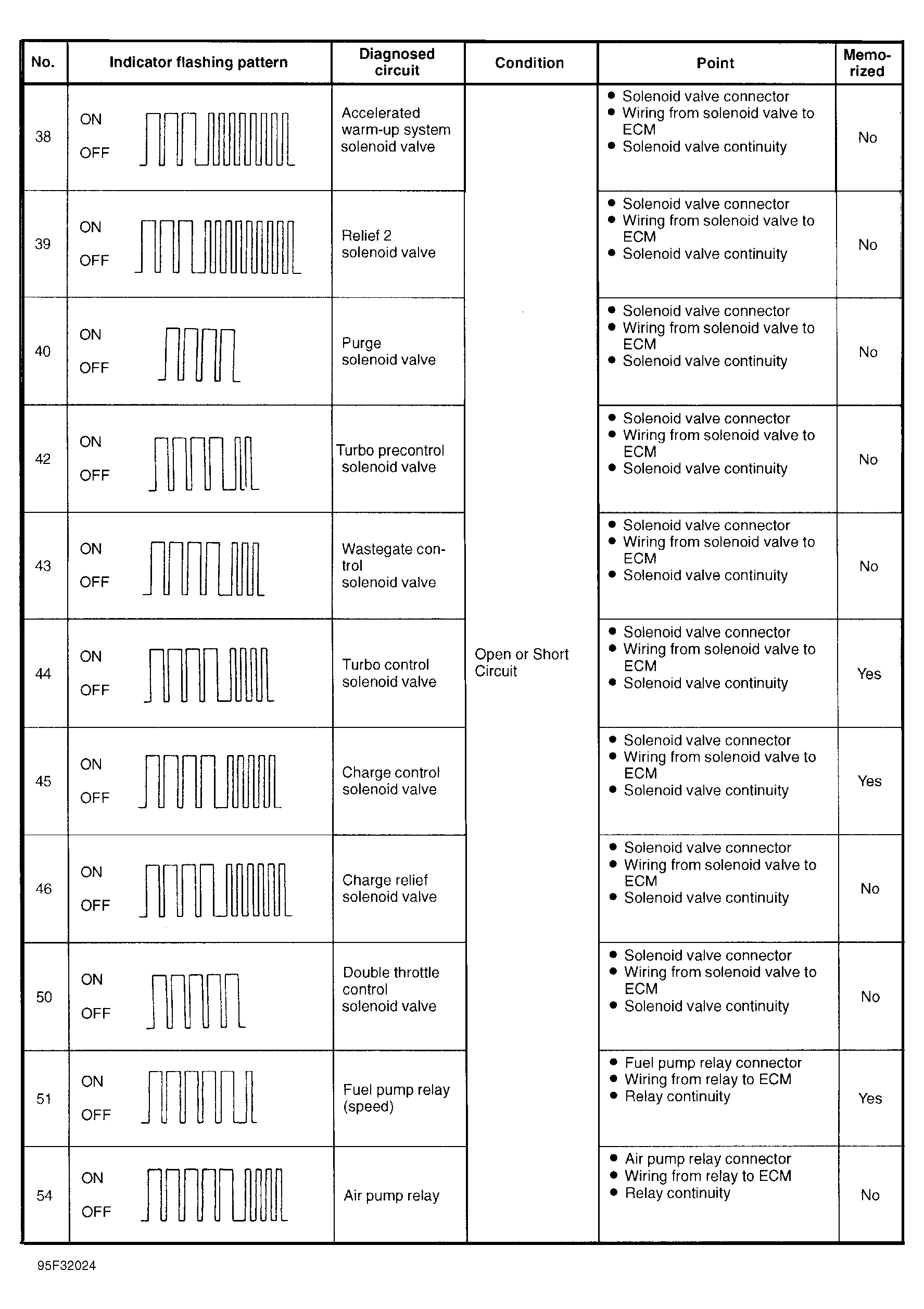

Fig 3: Diagnostic Trouble Code Definition Chart (3 Of 4)
G95F32024Courtesy of MAZDA MOTORS CORP.

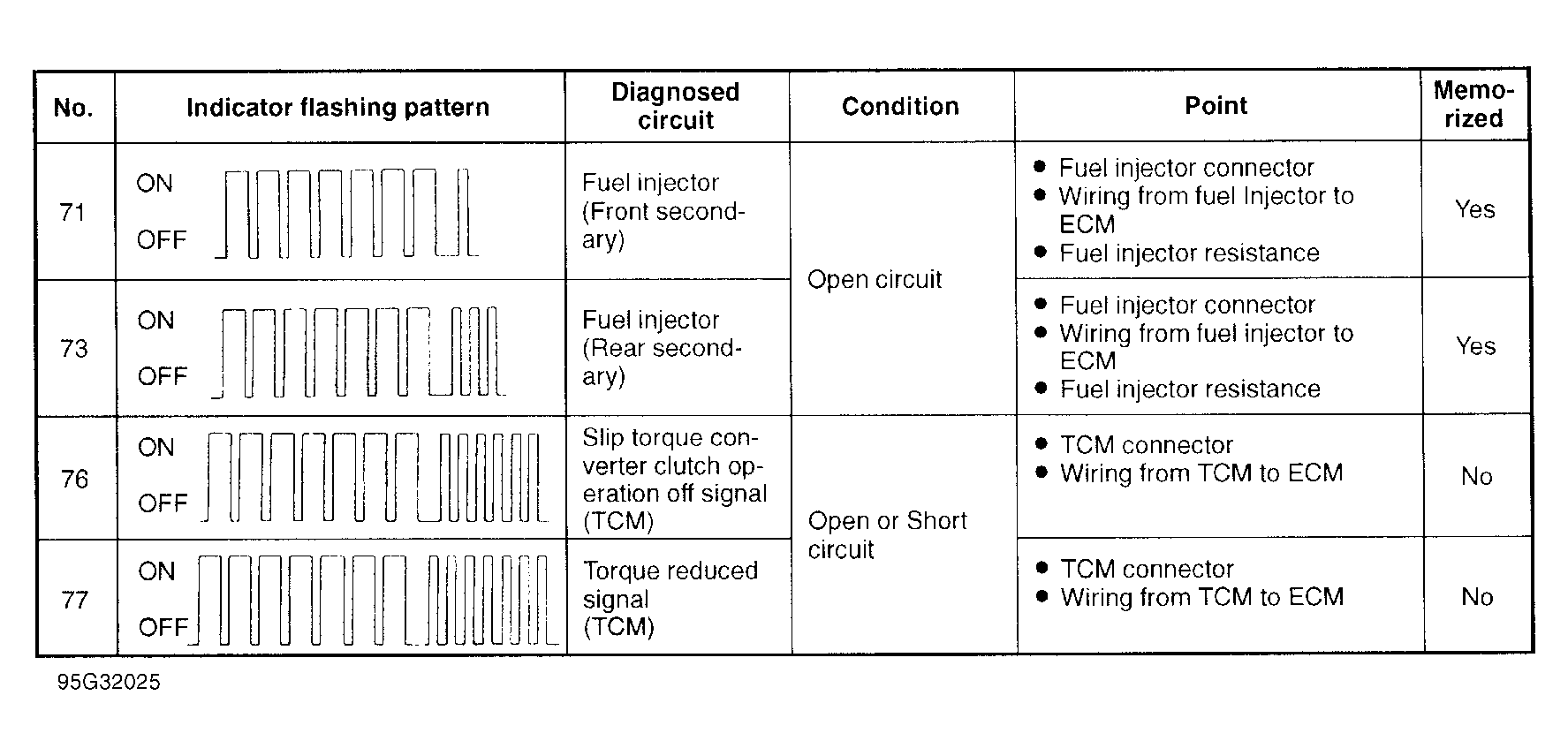

Fig 4: Diagnostic Trouble Code Definition Chart (4 Of 4)
G95G32025Courtesy of MAZDA MOTORS CORP.
