DTC P0402: EGR System Malfunction
DTC P0402: EGR System Malfunction

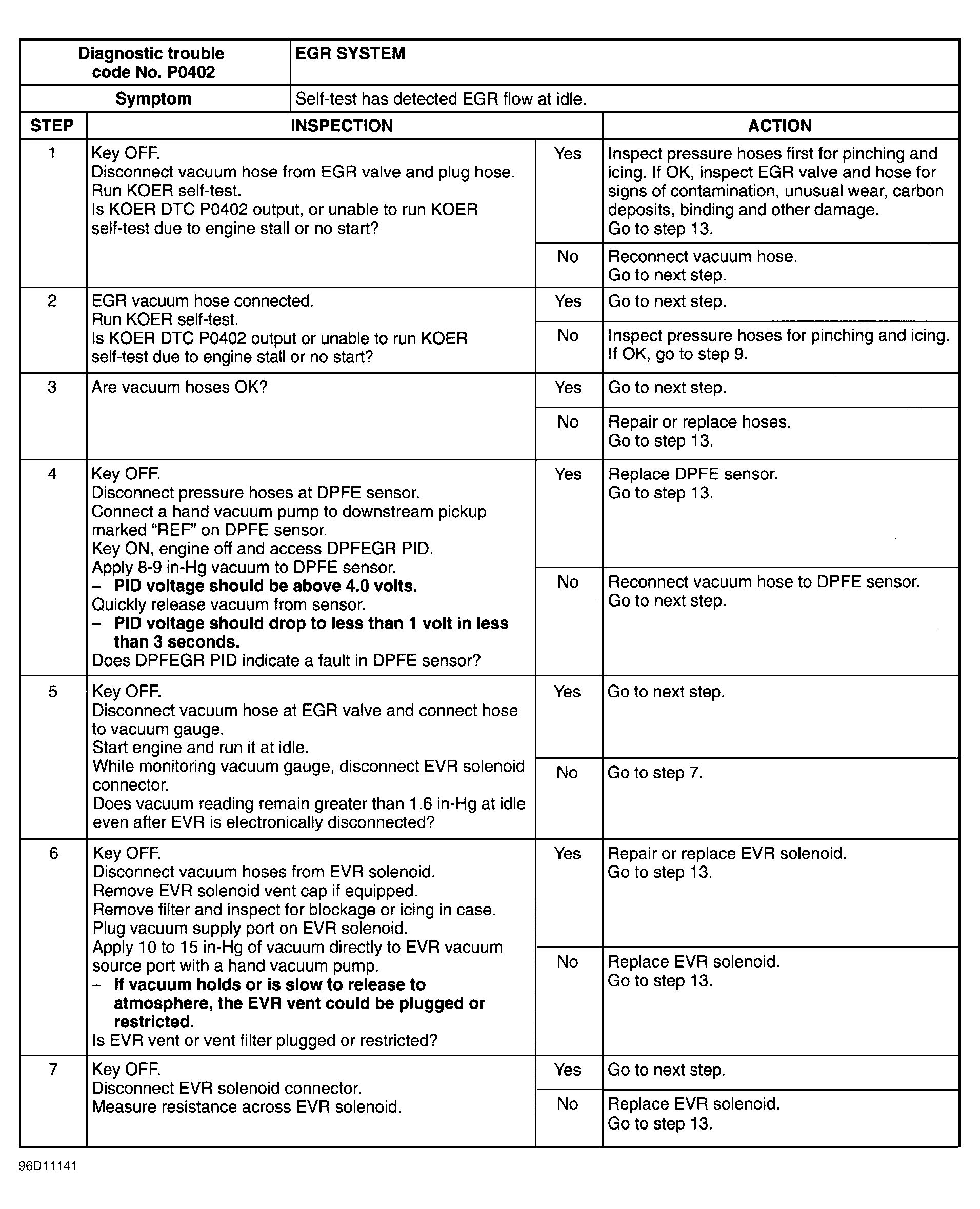

Fig 1: DTC P0402 EGR System Malfunction (1 OF 2)

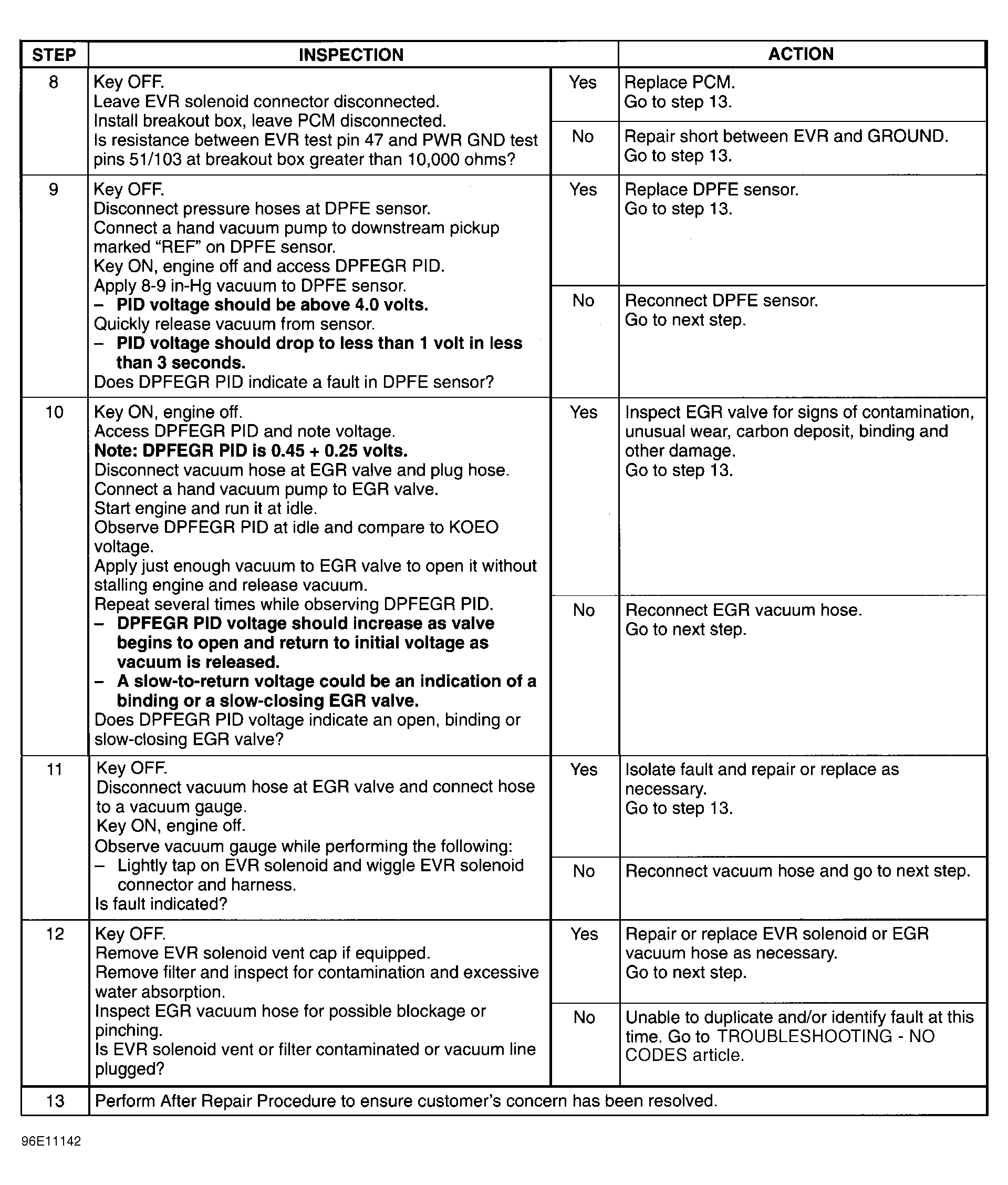

Fig 2: DTC P0402 EGR System Malfunction (2 OF 2)
