Engine Controls - Tests W/Codes
›
Diagnostic Trouble Code Charts
›
DTC P1506: IAC System Circuit Malfunction
DTC P1506: IAC System Circuit Malfunction

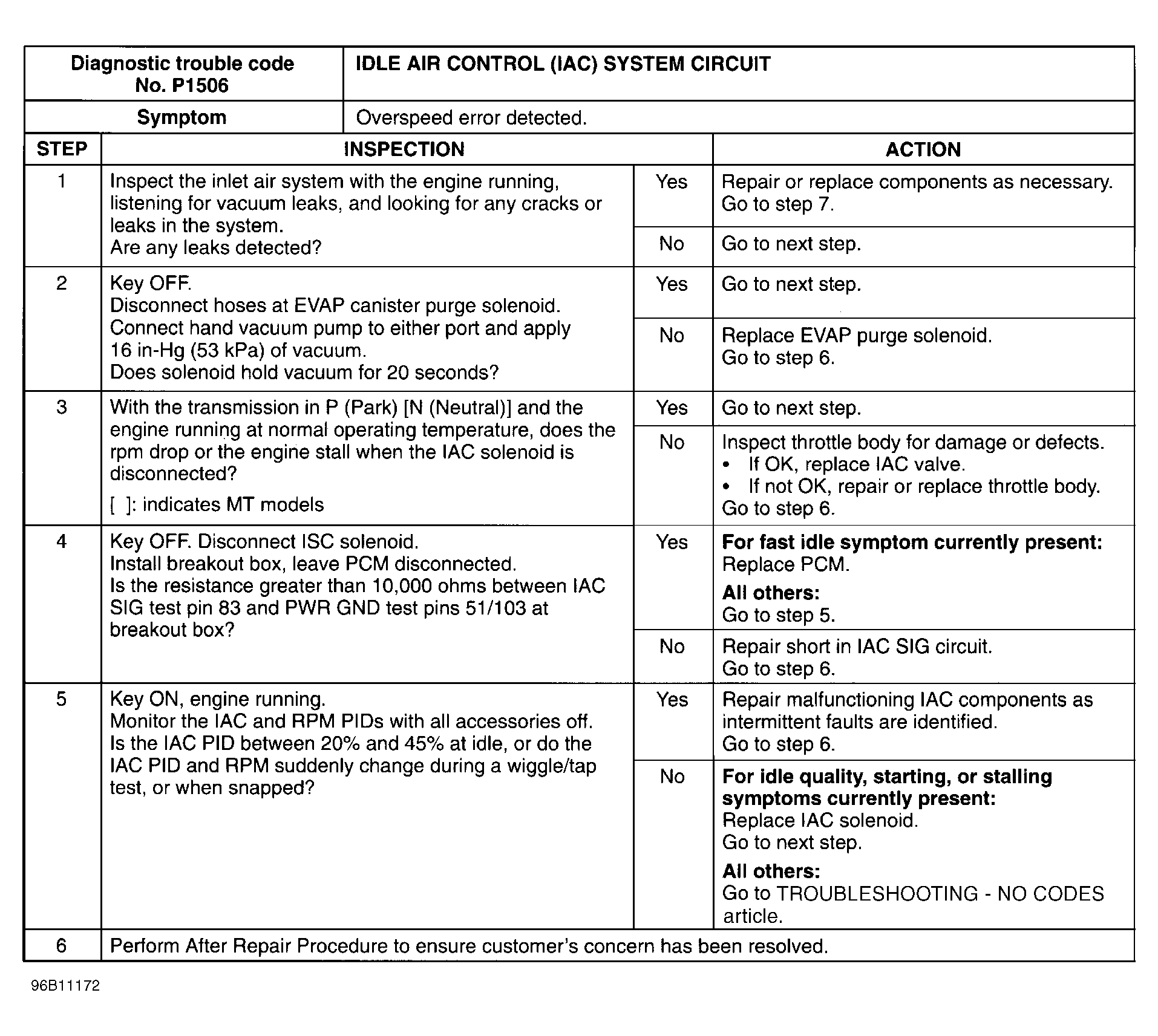

Fig 1: DTC P1506 IAC System CIRCUIT Malfunction
Fig 2: IAC Solenoid CIRCUIT Diagram
