DTC P0320: Pcm Circuit Malfunction
DTC P0320: Pcm Circuit Malfunction

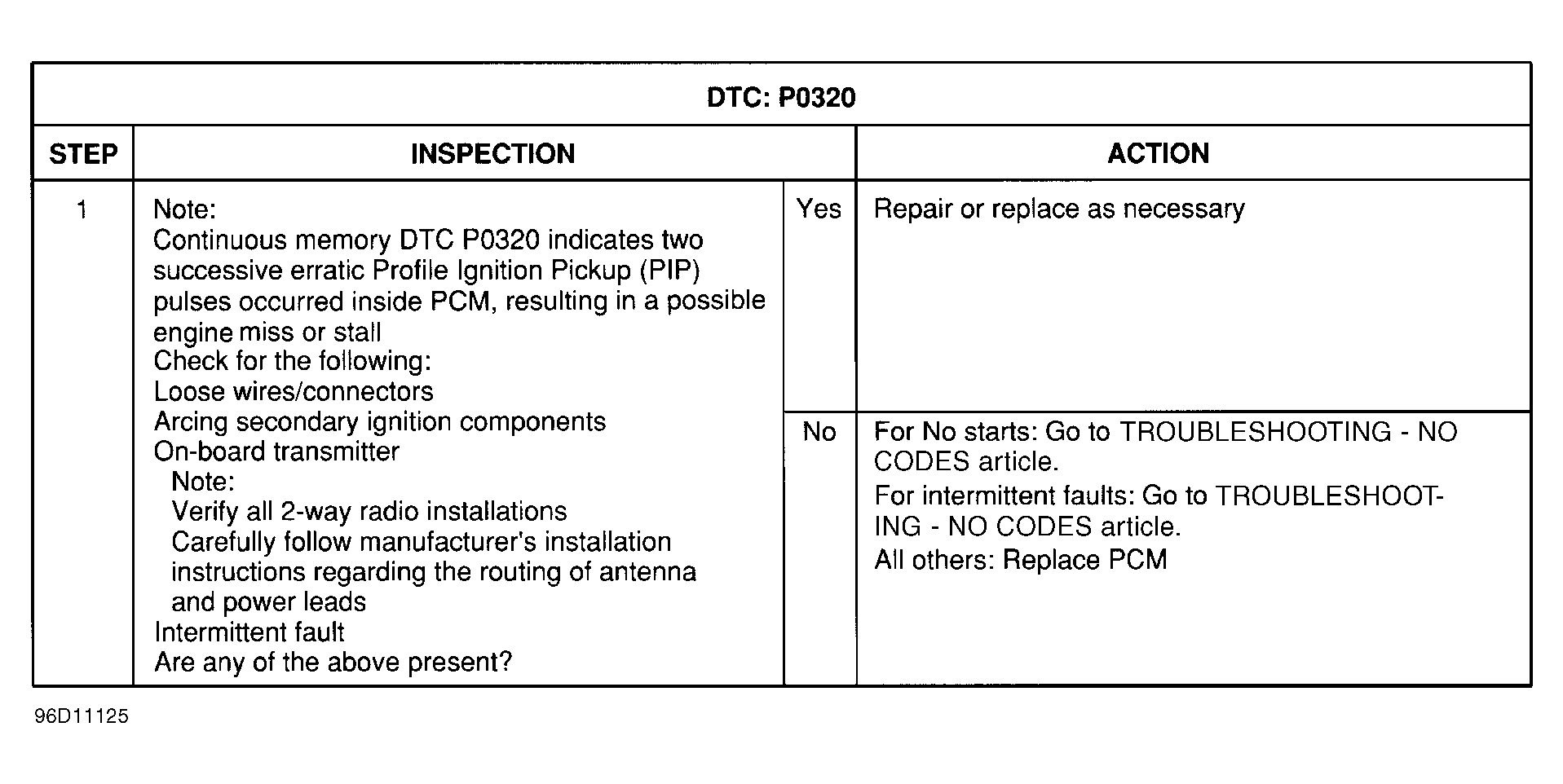

Fig 1: DTC P0320 PCM CIRCUIT Malfunction
