DTC P1000: OBD-II Drive Cycle Malfunction
DTC P1000: OBD-II Drive Cycle Malfunction

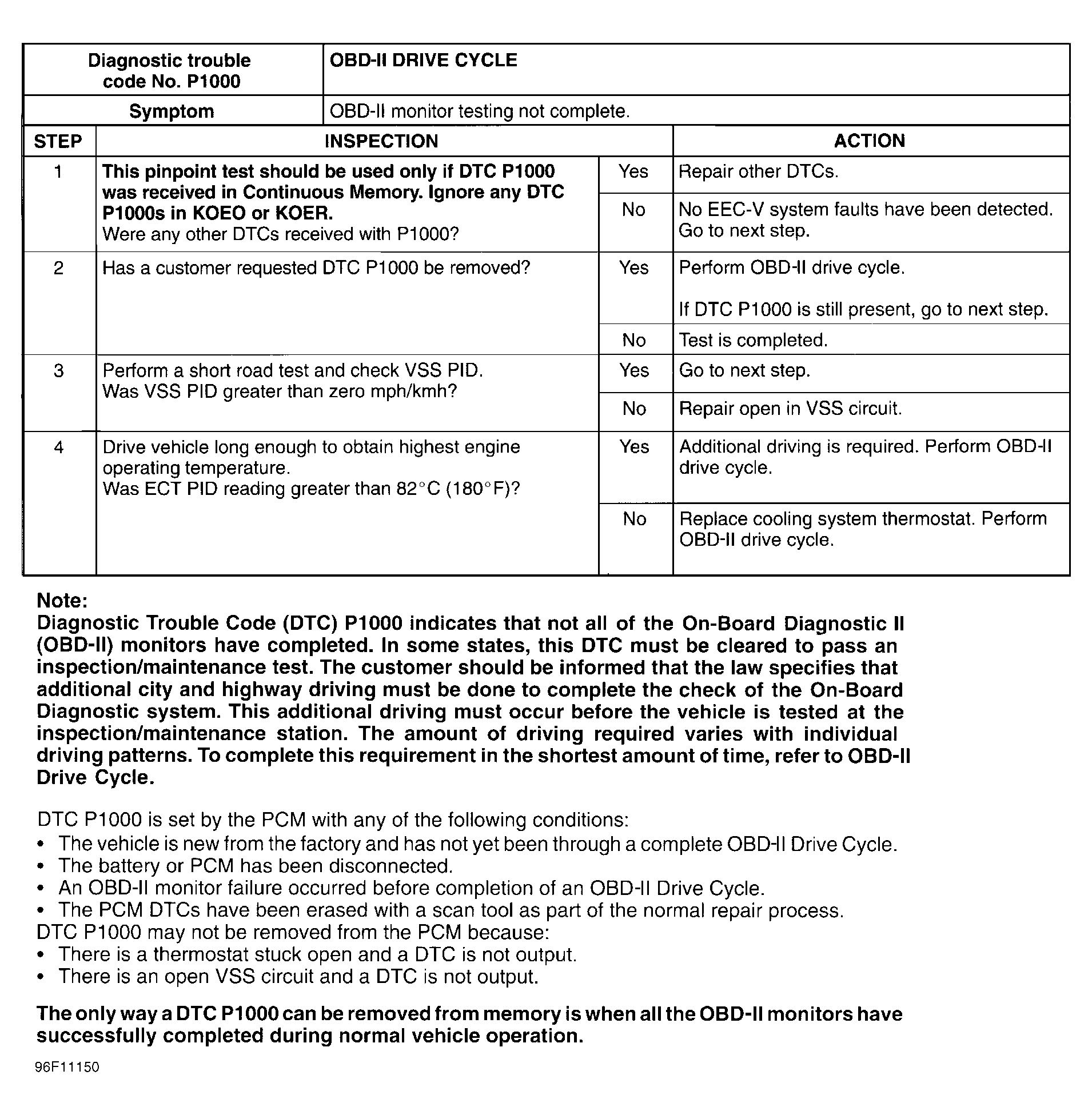

Fig 1: DTC P1000 OBD-II Drive Cycle Malfunction

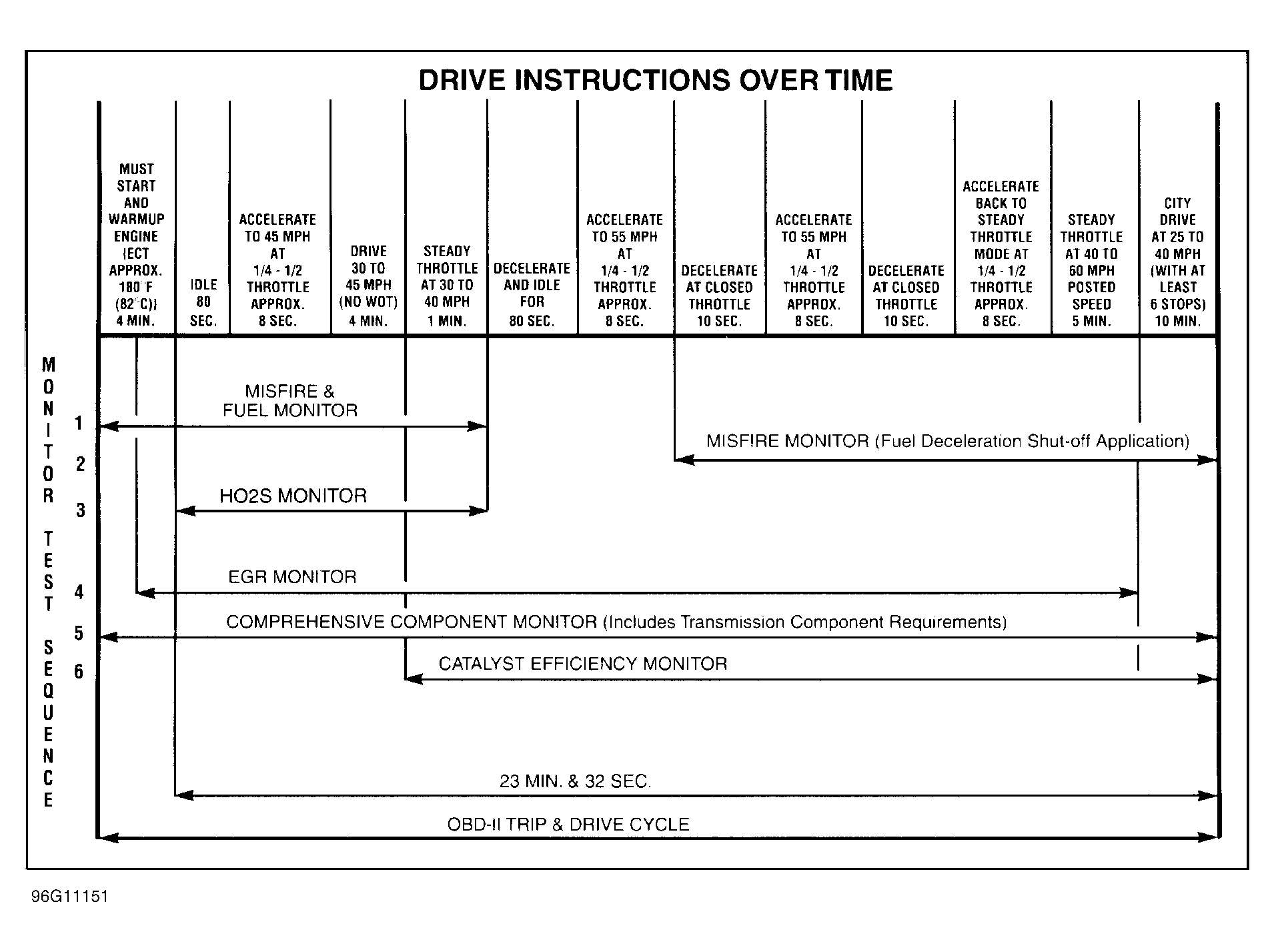

Fig 2: OBD-II MonitoR Test Sequence
